uicollectionview 比tableview 靈活，功能也強大很多。系統實現了流式布局，但用處還有很多限制。
要想實現更靈活的布局，就咬重寫uicollectionviewlayout。

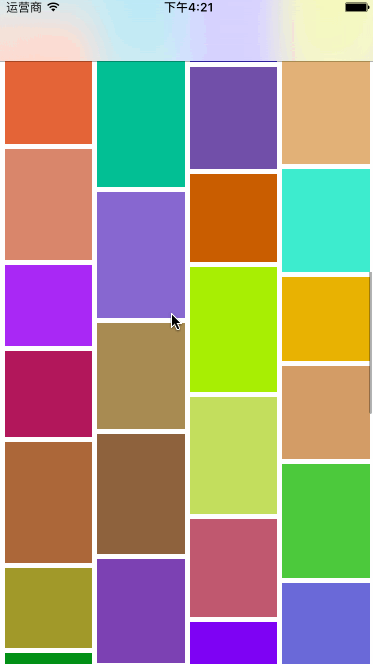

先看下實現效果：
廢話不多說，直接上代碼：
先看waterfallcollectionlayout.m
|
1
2
3
4
5
6
7
8
9
10
|
#import "waterfallcollectionlayout.h"#define colmargin 5#define colcount 4#define rolmargin 5@interface waterfallcollectionlayout ()//數組存放每列的總高度@property(nonatomic,strong)nsmutablearray* colsheight;//單元格寬度@property(nonatomic,assign)cgfloat colwidth;@end |
該類要重寫以下方法：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
|
//完成布局前的初始工作-(void)preparelayout;//collectionview的內容尺寸-(cgsize)collectionviewcontentsize;//為每個item設置屬性-(uicollectionviewlayoutattributes *)layoutattributesforitematindexpath:(nsindexpath *)indexpath;//獲取制定范圍的所有item的屬性-(nsarray<uicollectionviewlayoutattributes *> *)layoutattributesforelementsinrect:(cgrect)rect;-(bool)shouldinvalidatelayoutforboundschange:(cgrect)newbounds; |
每次調用會清空colsheight數組里的信息：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
|
//完成布局前的初始工作-(void)preparelayout{ [super preparelayout]; self.colwidth =( self.collectionview.frame.size.width - (colcount+1)*colmargin )/colcount; //讓它重新加載 self.colsheight = nil;}通過遍歷colheight數組里的所有列來獲得最長的那一列，返回contentsize//collectionview的內容尺寸-(cgsize)collectionviewcontentsize{ nsnumber * longest = self.colsheight[0]; for (nsinteger i =0;i<self.colsheight.count;i++) { nsnumber* rolheight = self.colsheight[i]; if(longest.floatvalue<rolheight.floatvalue){ longest = rolheight; } } return cgsizemake(self.collectionview.frame.size.width, longest.floatvalue);} |
每個cell要出來時這個方法會被調用，在此方法中設置該cell的frame。
注意heightblock是外部控制器傳進來的block用以計算每個cell的高度，現在我只是設置了隨機數。如果沒有傳block進來我這里直接讓他崩潰了。
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
|
//為每個item設置屬性-(uicollectionviewlayoutattributes *)layoutattributesforitematindexpath:(nsindexpath *)indexpath{ uicollectionviewlayoutattributes* attr = [uicollectionviewlayoutattributes layoutattributesforcellwithindexpath:indexpath]; nsnumber * shortest = self.colsheight[0]; nsinteger shortcol = 0; for (nsinteger i =0;i<self.colsheight.count;i++) { nsnumber* rolheight = self.colsheight[i]; if(shortest.floatvalue>rolheight.floatvalue){ shortest = rolheight; shortcol=i; } } cgfloat x = (shortcol+1)*colmargin+ shortcol * self.colwidth; cgfloat y = shortest.floatvalue+colmargin; //獲取cell高度 cgfloat height=0; nsassert(self.heightblock!=nil, @"未實現計算高度的block "); if(self.heightblock){ height = self.heightblock(indexpath); } attr.frame= cgrectmake(x, y, self.colwidth, height); self.colsheight[shortcol]=@(shortest.floatvalue+colmargin+height); return attr;} |
|
1
2
3
4
5
6
7
8
9
10
|
//獲取所有item的屬性-(nsarray<uicollectionviewlayoutattributes *> *)layoutattributesforelementsinrect:(cgrect)rect{ nsmutablearray* array = [nsmutablearray array]; nsinteger items = [self.collectionview numberofitemsinsection:0]; for (int i = 0; i<items;i++) { uicollectionviewlayoutattributes* attr = [self layoutattributesforitematindexpath:[nsindexpath indexpathforitem:i insection:0]]; [array addobject:attr]; } return array;} |
實現下列方法會在出現新的cell時重新布局并調用preparelayout方法
|
1
2
3
|
-(bool)shouldinvalidatelayoutforboundschange:(cgrect)newbounds{ return yes;} |
每列高度的存放，初始高度可以改，我這里是0
|
1
2
3
4
5
6
7
8
9
10
11
|
-(nsmutablearray *)colsheight{ if(!_colsheight){ nsmutablearray * array = [nsmutablearray array]; for(int i =0;i<colcount;i++){ //這里可以設置初始高度 [array addobject:@(0)]; } _colsheight = [array mutablecopy]; } return _colsheight;} |
再來看看控制器里就是這么簡單
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
|
#pragma mark getter-setter-(uicollectionview *)collectionview{ if(!_collectionview){ _collectionview = [[uicollectionview alloc]initwithframe:self.view.frame collectionviewlayout:self.layout]; _collectionview.backgroundcolor = [uicolor whitecolor]; _collectionview.delegate=self; _collectionview.datasource=self; [_collectionview registerclass:[collectionviewcell class] forcellwithreuseidentifier:identifer]; } return _collectionview;}-(uicollectionviewlayout *)layout{ if(!_layout){ _layout = [[waterfallcollectionlayout alloc]initwithitemsheightblock:^cgfloat(nsindexpath *index) { return [self.heightarr[index.item] floatvalue]; }]; } return _layout;}-(nsarray *)heightarr{ if(!_heightarr){ //隨機生成高度 nsmutablearray *arr = [nsmutablearray array]; for (int i = 0; i<100; i++) { [arr addobject:@(arc4random()%50+80)]; } _heightarr = [arr copy]; } return _heightarr;} |
關于瀑布流的文章特別多，本文就是為大家分享了ios簡單實現瀑布流的方法，希望對大家的學習有所幫助。
