研發小伙伴可能對下列操作步驟會深有體會
寫代碼--》提交代碼--》打包--》發布
在項目調試測試階段，可能經常需要重復上面的步驟，以便將最新代碼部署到特定環境供測試人員或其他人員使用
ci即持續集成的提出及各種解決方案，減輕了很多最初簡單但繁瑣的工作
本文將通過提交代碼到git，然后通過webhook觸發jenkins打包并發布到相應容器中，開發人員只需提交代碼，后續打包發布都自動實現
git ：我使用的碼云 我的主頁為： https://gitee.com/xiaochangwei
jenkins：jenkins ver. 2.89.2
tomcat 8 jdk8 maven3.5
|
1
2
3
4
5
6
7
8
9
10
11
12
|
[root@iznz7e74o4ag3oz webapps]# java -versionjava version "1.8.0_121"java(tm) se runtime environment (build 1.8.0_121-b13)java hotspot(tm) 64-bit server vm (build 25.121-b13, mixed mode)[root@iznz7e74o4ag3oz webapps]# mvn -versionapache maven 3.5.0 (ff8f5e7444045639af65f6095c62210b5713f426; 2017-04-04t03:39:06+08:00)maven home: /usr/local/src/mavenjava version: 1.8.0_121, vendor: oracle corporationjava home: /usr/local/src/jdk/jredefault locale: en_us, platform encoding: utf-8os name: "linux", version: "3.10.0-693.2.2.el7.x86_64", arch: "amd64", family: "unix"[root@iznz7e74o4ag3oz webapps]# |
配置好環境后，在tomcat中運行jenkins，并設置好用戶名密碼確保能正常登錄使用
操作步驟：
1.安裝插件 generic webhook trigger plugin、deploy to container plugin、git plugin 由于這里暫時未發布到docker中，通過deploy to container plugin發布到tomcat中的
2.上傳maven項目到https://gitee.com
3.jenkins中新建項目ci
3.1 配置提交的代碼地址，add有權限的用戶名和密碼（我的是私有項目），指定分支
3.2：配置maven命令以及發布到的tomcat
注意：發布項目的tomcat需要設置用戶信息，即修改conf下的user.xml 具體可以參考我很早之前寫的http://www.cnblogs.com/xiaochangwei/p/4952644.html
這樣就可以手動構建項目了，請確保手動構建能成功后再進行下列操作
遇見的問題及解決方案：
如果構建時提示權限不對
生成公鑰： ssh-keygen -t rsa 一直回車直結束
cat ~/.ssh/id_rsa.pub 將內容增加到碼云上
如果還提示沒權限
手動先在jenkins運行的機器上clone一次代碼 如 git clone [email protected]:xiaochangwei/ci-demo.git 注意輸入yes
然后再看.ssh目錄，多了一個known_hosts 里面有碼云了，然后再手動構建，應該就能成功了
至此，手動打包并部署就已經實現了
------------------------------自動部署 --------------------------------------------------
1. 安裝上述插件后勾選generic webhook trigger 增加post參數 ref expression值為 $.ref 注意有個點
增加optional filter
其實上面這部分不用設置也行，尤其是只會在jenkins中部署一個項目的一個分支時，只需要勾選上generic webhook trigger就可以的

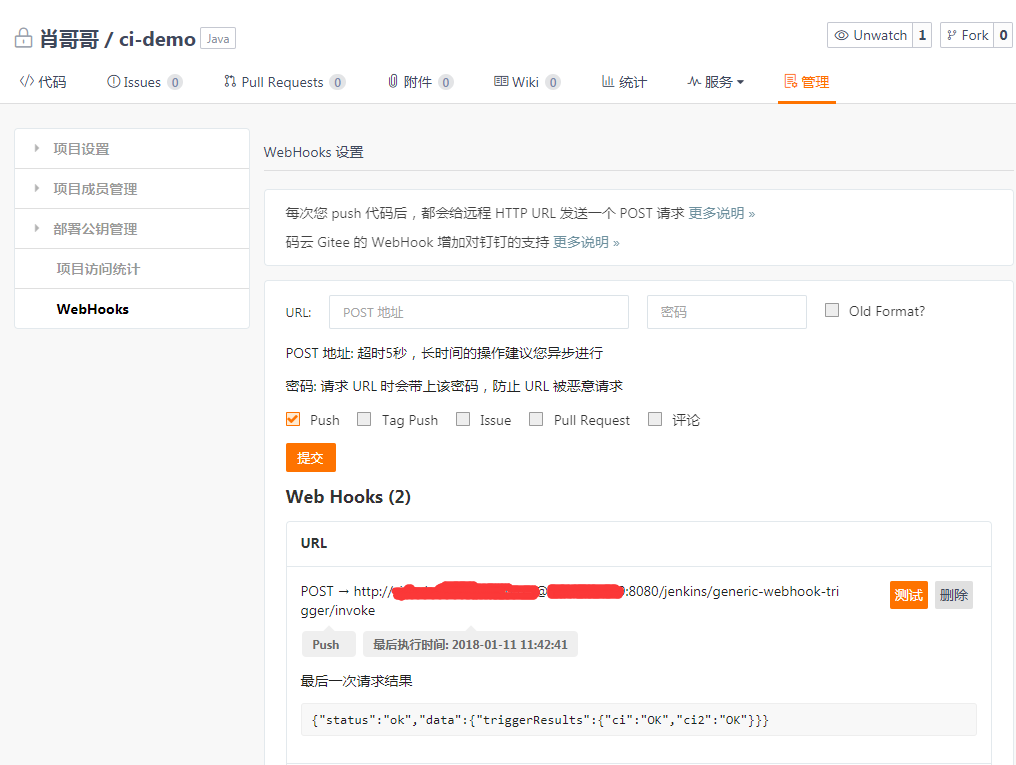

2. 在碼云中增加hook：http://user id:api token@jenkins部署的地址:端口號/jenkins/generic-webhook-trigger/invoke （紅色這部分不要變）
(這里不用api token 直接用jenkins的登錄密碼也可以， api token查看地址為：jenkins-用戶-點擊用戶名-api token)
同時勾選push或者其他你認為需要觸發部署的事件
提交后點擊測試，如果返回ok，則表示成功，切換到jenkins，查看項目是否能夠自動部署
我自己寫了一個接口用來獲取點擊測試后，到底請求了些什么
格式化下內容如下：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
|
{ "hook_name": "push_hooks", "total_commits_count": 1, "before": "0000000000000000000000000000000000000000", "user_name": "肖哥哥", "project": { "path": "ci-demo", "git_svn_url": "svn://gitee.com/xiaochangwei/ci-demo", "path_with_namespace": "xiaochangwei/ci-demo", "name": "ci-demo", "namespace": "xiaochangwei", "default_branch": "master", "git_http_url": "https://gitee.com/xiaochangwei/ci-demo.git", "name_with_namespace": "肖哥哥/ci-demo", "url": "https://gitee.com/xiaochangwei/ci-demo", }, "repository": { "name": "ci-demo", "description": "", "url": "https://gitee.com/xiaochangwei/ci-demo.git", "homepage": "https://gitee.com/xiaochangwei/ci-demo" }, "commits_more_than_ten": false, "ref": "refs/heads/master", "password": "", "commits": [{ "author": { "name": "肖哥哥", "time": "2015-11-06t13:21:07+08:00", }, "id": "ec7159240a346fa5988913aa3057b902a4acb126", "message": "a test for webhooks", "url": "https://gitee.com/xiaochangwei/ci-demo/commit/ec7159240a346fa5988913aa3057b902a4acb126", "timestamp": "2015-11-06t13:21:07+08:00" }], "after": "ec7159240a346fa5988913aa3057b902a4acb126", "user": { "name": "肖哥哥", "id": 372286, "time": "2018-01-11t12:38:38+08:00", "user": "xiaochangwei", "url": "https://gitee.com/xiaochangwei" }} |
其實多建立幾個項目然后獲取信息后會發現，不同項目間存在差異的就是project.git_ssh_url 和分支 ref
至此，單個項目的自動部署就完了
如果你在jenkins中有多個項目，你觸發其中的一個webhook你就會發現，所有的項目都在構建？
這就有點不科學了，本來只想構建a項目，結果abc項目都構建了？ 要解決這個就需要用到上面提到的post param 和 filer 了
解析觸發自動構建的請求參數，ref和project.git_ssh_url是差異性的東西，那就根據兩個來區分項目
有這上面的兩個post參數還不行，因為只是獲取到了對應的參數值
其實要想區分不同的項目也簡單，只要獲取到的ref還有url 和需要構建的項目分支和 git地址相同就構建，否則就不構建
optional filter提供的方式就是最簡單的正則匹配
expression設置為 ^(refs/heads/master)_([email protected]:xiaochangwei/ci-demo.git)$注意修改為自己的項目地址
text 設置為 $ref_$project.git_ssh_url
保存，再次構建，是不是只觸發了一個項目了，而不是所有項目了
測試：
1.提交代碼， 提交代碼后看到jenkins就自動編譯打包了
2.查看編譯日志：jenkins收到了webhook請求，并且拉取了代碼，提交信息和我們提交代碼時輸入信息一致
有同學質疑我這里為啥失敗了，是不是自動構建不可用，不是哈， 我這里是用的阿里服務器，內存不夠導致了自動發布失敗

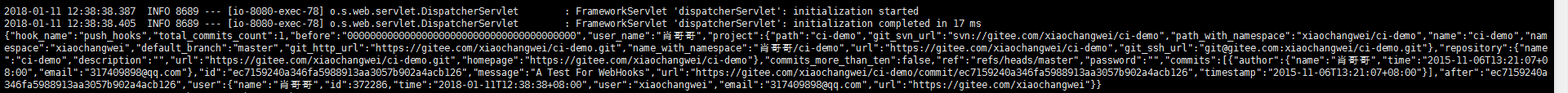

完整編譯并正確部署的日志如下：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
|
generic causebuilding in workspace /root/.jenkins/workspace/cigenericwebhookenvironmentcontributor received:{"before":"0000000000000000000000000000000000000000","after":"ec7159240a346fa5988913aa3057b902a4acb126","ref":"refs/heads/master","user_name":"\u8096\u54e5\u54e5","user":{"id":372286,"email":"[email protected]","name":"\u8096\u54e5\u54e5","user":"xiaochangwei","url":"https://gitee.com/xiaochangwei","time":"2018-01-12t08:56:18+08:00"},"repository":{"name":"ci-demo","url":"https://gitee.com/xiaochangwei/ci-demo.git","description":"","homepage":"https://gitee.com/xiaochangwei/ci-demo"},"commits":[{"id":"ec7159240a346fa5988913aa3057b902a4acb126","message":"a test for webhooks","timestamp":"2015-11-06t13:21:07+08:00","url":"https://gitee.com/xiaochangwei/ci-demo/commit/ec7159240a346fa5988913aa3057b902a4acb126","author":{"name":"\u8096\u54e5\u54e5","email":"[email protected]","time":"2015-11-06t13:21:07+08:00"}}],"project":{"name":"ci-demo","path":"ci-demo","url":"https://gitee.com/xiaochangwei/ci-demo","git_ssh_url":"[email protected]:xiaochangwei/ci-demo.git","git_http_url":"https://gitee.com/xiaochangwei/ci-demo.git","git_svn_url":"svn://gitee.com/xiaochangwei/ci-demo","namespace":"xiaochangwei","name_with_namespace":"\u8096\u54e5\u54e5/ci-demo","path_with_namespace":"xiaochangwei/ci-demo","default_branch":"master"},"total_commits_count":1,"commits_more_than_ten":false,"enterprise":null,"hook_name":"push_hooks","password":""}contributing variables: ref = refs/heads/master > git rev-parse --is-inside-work-tree # timeout=10fetching changes from the remote git repository > git --version # timeout=10using git_askpass to set credentials > git fetch --tags --progress [email protected]:xiaochangwei/ci-demo.git +refs/heads/*:refs/remotes/origin/* > git rev-parse refs/remotes/origin/master^{commit} # timeout=10 > git rev-parse refs/remotes/origin/origin/master^{commit} # timeout=10checking out revision 2eca30803759e021f658c92c136aa72dc026c3be (refs/remotes/origin/master) > git config core.sparsecheckout # timeout=10 > git checkout -f 2eca30803759e021f658c92c136aa72dc026c3becommit message: "test auto package and deploy" > git rev-list --no-walk 2eca30803759e021f658c92c136aa72dc026c3be # timeout=10parsing pomsestablished tcp socket on 44276[ci] $ /usr/local/src/jdk/bin/java -cp /root/.jenkins/plugins/maven-plugin/web-inf/lib/maven35-agent-1.12-alpha-1.jar:/usr/local/src/maven/boot/plexus-classworlds-2.5.2.jar:/usr/local/src/maven/conf/logging jenkins.maven3.agent.maven35main /usr/local/src/maven /usr/local/src/tomcat/webapps/jenkins/web-inf/lib/remoting-3.14.jar /root/.jenkins/plugins/maven-plugin/web-inf/lib/maven35-interceptor-1.12-alpha-1.jar /root/.jenkins/plugins/maven-plugin/web-inf/lib/maven3-interceptor-commons-1.12-alpha-1.jar 44276<===[jenkins remoting capacity]===>channel startedexecuting maven: -b -f /root/.jenkins/workspace/ci/pom.xml clean package -dmaven.test.skip=true[info] scanning for projects...[info] [info] ------------------------------------------------------------------------[info] building docker-demo 0.0.1-snapshot[info] ------------------------------------------------------------------------[info] [info] --- maven-clean-plugin:2.6.1:clean (default-clean) @ ci-demo ---[info] deleting /root/.jenkins/workspace/ci/target[info] [info] --- maven-resources-plugin:2.6:resources (default-resources) @ ci-demo ---[info] using 'utf-8' encoding to copy filtered resources.[info] copying 1 resource[info] copying 0 resource[info] [info] --- maven-compiler-plugin:3.1:compile (default-compile) @ ci-demo ---[info] changes detected - recompiling the module![info] compiling 6 source files to /root/.jenkins/workspace/ci/target/classes[info] [info] --- maven-resources-plugin:2.6:testresources (default-testresources) @ ci-demo ---[info] not copying test resources[info] [info] --- maven-compiler-plugin:3.1:testcompile (default-testcompile) @ ci-demo ---[info] not compiling test sources[info] [info] --- maven-surefire-plugin:2.18.1:test (default-test) @ ci-demo ---[info] tests are skipped.[info] [info] --- maven-war-plugin:2.6:war (default-war) @ ci-demo ---[info] packaging webapp[info] assembling webapp [ci-demo] in [/root/.jenkins/workspace/ci/target/ci-demo][info] processing war project[info] webapp assembled in [298 msecs][info] building war: /root/.jenkins/workspace/ci/target/ci-demo.war[info] [info] --- spring-boot-maven-plugin:1.5.9.release:repackage (default) @ ci-demo ---[info] ------------------------------------------------------------------------[info] build success[info] ------------------------------------------------------------------------[info] total time: 18.729 s[info] finished at: 2018-01-12t08:56:46+08:00[info] final memory: 30m/72m[info] ------------------------------------------------------------------------waiting for jenkins to finish collecting data[jenkins] archiving /root/.jenkins/workspace/ci/pom.xml to com.xiao/ci-demo/0.0.1-snapshot/ci-demo-0.0.1-snapshot.pom[jenkins] archiving /root/.jenkins/workspace/ci/target/ci-demo.war to com.xiao/ci-demo/0.0.1-snapshot/ci-demo-0.0.1-snapshot.warchannel stoppeddeploying /root/.jenkins/workspace/ci/target/ci-demo.war to container tomcat 8.x remote with context /ci redeploying [/root/.jenkins/workspace/ci/target/ci-demo.war] undeploying [/root/.jenkins/workspace/ci/target/ci-demo.war] deploying [/root/.jenkins/workspace/ci/target/ci-demo.war]finished: success |
查看效果
總結
以上所述是小編給大家介紹的docker利用webhook實現持續集成，希望對大家有所幫助，如果大家有任何疑問請給我留言，小編會及時回復大家的。在此也非常感謝大家對服務器之家網站的支持！
