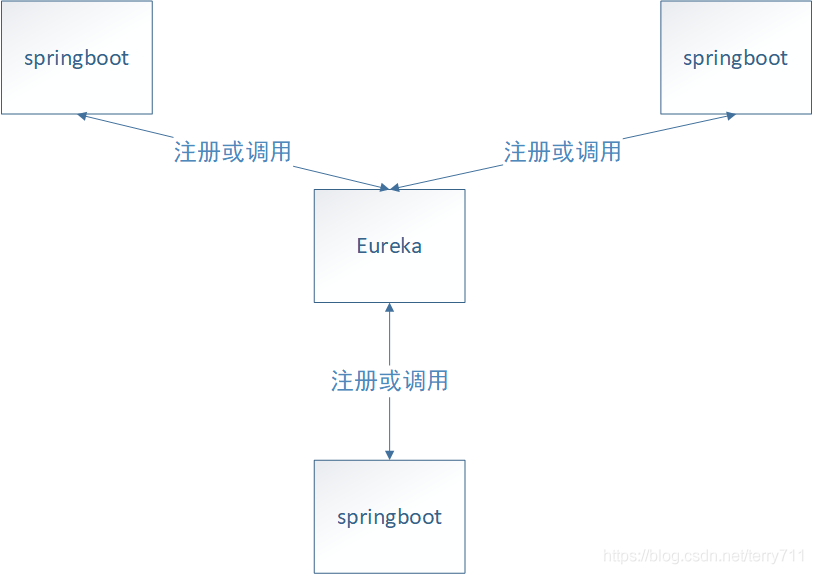

在搭建spring cloud eureka環境前先要了解整個架構的組成，常用的基礎模式如下圖：
服務提供者：將springboot服務編寫好以后，通過配置注冊中心地址方式注冊，提供給消費者使用。
注冊中心：服務的中間橋梁，服務提供者將服務注冊。服務消費者可以通過注冊信息調用需要使用的服務。
服務消費者：通過規定的調用方式，讀取注冊中心的注冊信息，調用相應的服務。
根據后續的服務復雜度進化以后，可以看到服務提供者也可以是服務消費者，服務消費者也可以是服務提供者。根據不同的業務情況是可以互相調用的。

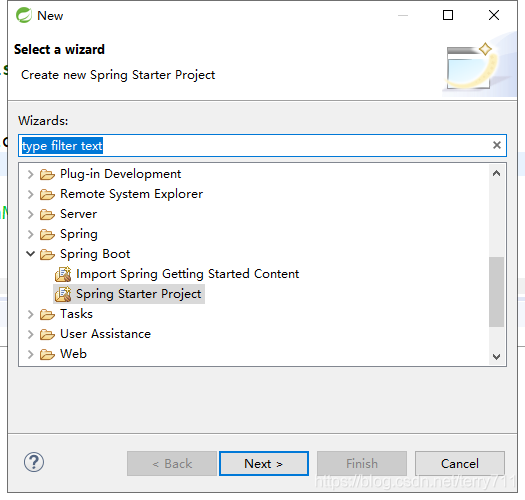

下面來搭建一個基礎的eureka。環境還是使用的之前的spring官方下載的。
內容寫的比較詳細，可以跟這一步步操作。
一、注冊中心
以下是幾個需要修改和添加的地方，后面會有完整的pom.xml
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
|
<parent> <groupid>org.springframework.boot</groupid> <artifactid>spring-boot-starter-parent</artifactid> <version>2.1.3.release</version> <relativepath /> <!-- lookup parent from repository --> </parent> <dependencymanagement> <dependencies> <dependency> <groupid>org.springframework.cloud</groupid> <artifactid>spring-cloud-dependencies</artifactid> <version>finchley.sr2</version> <type>pom</type> <scope>import</scope> </dependency> </dependencies> </dependencymanagement><!-- 最新版的 eureka 服務端包 --> <dependency> <groupid>org.springframework.cloud</groupid> <artifactid>spring-cloud-starter-netflix-eureka-server</artifactid> </dependency> <!-- 監控管理 --> <dependency> <groupid>org.springframework.boot</groupid> <artifactid>spring-boot-starter-actuator</artifactid> </dependency> |
| spring cloud | spring boot |
|---|---|
| angel版本 | 兼容spring boot 1.2.x |
| brixton版本 | 兼容spring boot 1.3.x，也兼容spring boot 1.4.x |
| camden版本 | 兼容spring boot 1.4.x，也兼容spring boot 1.5.x |
| dalston版本、edgware版本 | 兼容spring boot 1.5.x，不兼容spring boot 2.0.x |
| finchley版本 | 兼容spring boot 2.0.x，不兼容spring boot 1.5.x |
| greenwich版本 | 兼容spring boot 2.1.x |
這里采用finchley.sr2版本 springboot版本改成 2.1.3.release
完整的pom.xml
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
|
<?xml version="1.0" encoding="utf-8"?><project xmlns="http://maven.apache.org/pom/4.0.0" xmlns:xsi="http://www.w3.org/2001/xmlschema-instance" xsi:schemalocation="http://maven.apache.org/pom/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelversion>4.0.0</modelversion> <parent> <groupid>org.springframework.boot</groupid> <artifactid>spring-boot-starter-parent</artifactid> <version>2.1.3.release</version> <relativepath /> <!-- lookup parent from repository --> </parent> <groupid>com.example</groupid> <artifactid>eureka1</artifactid> <version>0.0.1-snapshot</version> <name>eureka1</name> <description>demo project for spring boot</description> <properties> <java.version>1.8</java.version> </properties> <dependencymanagement> <dependencies> <dependency> <groupid>org.springframework.cloud</groupid> <artifactid>spring-cloud-dependencies</artifactid> <version>finchley.sr2</version> <type>pom</type> <scope>import</scope> </dependency> </dependencies> </dependencymanagement> <dependencies> <dependency> <groupid>org.springframework.boot</groupid> <artifactid>spring-boot-starter</artifactid> </dependency> <!-- 最新版的 eureka 服務端包 --> <dependency> <groupid>org.springframework.cloud</groupid> <artifactid>spring-cloud-starter-netflix-eureka-server</artifactid> </dependency> <!-- 監控管理 --> <dependency> <groupid>org.springframework.boot</groupid> <artifactid>spring-boot-starter-actuator</artifactid> </dependency> <dependency> <groupid>org.springframework.boot</groupid> <artifactid>spring-boot-starter-test</artifactid> <scope>test</scope> <exclusions> <exclusion> <groupid>org.junit.vintage</groupid> <artifactid>junit-vintage-engine</artifactid> </exclusion> </exclusions> </dependency> </dependencies> <build> <plugins> <plugin> <groupid>org.springframework.boot</groupid> <artifactid>spring-boot-maven-plugin</artifactid> </plugin> </plugins> </build></project> |
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
|
package com.example.demo;import org.springframework.boot.springapplication;import org.springframework.boot.autoconfigure.springbootapplication;import org.springframework.cloud.netflix.eureka.server.enableeurekaserver;@enableeurekaserver@springbootapplicationpublic class eureka1application { public static void main(string[] args) { springapplication.run(eureka1application.class, args); }} |
然后在代碼文件中添加@enableeurekaserver注解
修改application.yml文件
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
|
server: port: 3000 # 端口eureka: instance: hostname: eureka-center appname: 注冊中心 client: registerwitheureka: false # 單點的時候設置為 false 禁止注冊自身 fetchregistry: false serviceurl: defaultzone: http://localhost:3000/eureka server: enableselfpreservation: false evictionintervaltimerinms: 4000 |

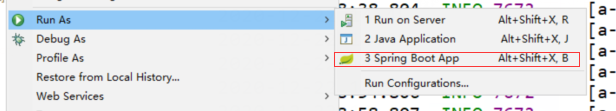

啟動服務
瀏覽器輸入 http://127.0.0.1:3000
證明注冊中心搭建成功了
二、服務提供者
前面的步驟一樣
providercontroller是新建的一個服務代碼
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
|
<dependency> <groupid>org.springframework.boot</groupid> <artifactid>spring-boot-starter-test</artifactid> <scope>test</scope> </dependency> <dependency> <groupid>org.springframework.boot</groupid> <artifactid>spring-boot-starter-web</artifactid> </dependency> <!-- eureka 客戶端 --> <dependency> <groupid>org.springframework.cloud</groupid> <artifactid>spring-cloud-starter-netflix-eureka-client</artifactid> </dependency> |
不同的地方有加了一個spring-boot-starter-web和spring-cloud-starter-netflix-eureka-client客戶端
完整的pom.xml
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
|
<?xml version="1.0" encoding="utf-8"?><project xmlns="http://maven.apache.org/pom/4.0.0" xmlns:xsi="http://www.w3.org/2001/xmlschema-instance" xsi:schemalocation="http://maven.apache.org/pom/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelversion>4.0.0</modelversion> <parent> <groupid>org.springframework.boot</groupid> <artifactid>spring-boot-starter-parent</artifactid> <version>2.1.3.release</version> <relativepath /> <!-- lookup parent from repository --> </parent> <groupid>com.example</groupid> <artifactid>eurekaclient1</artifactid> <version>0.0.1-snapshot</version> <name>eurekaclient1</name> <description>demo project for spring boot</description> <properties> <java.version>1.8</java.version> </properties> <dependencymanagement> <dependencies> <dependency> <groupid>org.springframework.cloud</groupid> <artifactid>spring-cloud-dependencies</artifactid> <version>finchley.sr2</version> <type>pom</type> <scope>import</scope> </dependency> </dependencies> </dependencymanagement> <dependencies> <dependency> <groupid>org.springframework.boot</groupid> <artifactid>spring-boot-starter</artifactid> </dependency> <dependency> <groupid>org.springframework.boot</groupid> <artifactid>spring-boot-starter-test</artifactid> <scope>test</scope> </dependency> <dependency> <groupid>org.springframework.boot</groupid> <artifactid>spring-boot-starter-web</artifactid> </dependency> <!-- eureka 客戶端 --> <dependency> <groupid>org.springframework.cloud</groupid> <artifactid>spring-cloud-starter-netflix-eureka-client</artifactid> </dependency> </dependencies> <build> <plugins> <plugin> <groupid>org.springframework.boot</groupid> <artifactid>spring-boot-maven-plugin</artifactid> </plugin> </plugins> </build></project> |
eurekaclient1application
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
|
package com.example.demo;import org.springframework.boot.springapplication;import org.springframework.boot.autoconfigure.springbootapplication;import org.springframework.cloud.netflix.eureka.enableeurekaclient;@enableeurekaclient@springbootapplicationpublic class eurekaclient1application { public static void main(string[] args) { springapplication.run(eurekaclient1application.class, args); }} |
providercontroller
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
|
package com.example.demo;import org.springframework.web.bind.annotation.requestmapping;import org.springframework.web.bind.annotation.restcontroller;@restcontrollerpublic class providercontroller { @requestmapping(value = "/hello") public string hello(){ return "hello spring cloud!"; } @requestmapping(value = "/nice") public string nice(){ return "nice to meet you!"; }} |
application.yml
|
1
2
3
4
5
6
7
8
9
10
11
12
|
server: port: 3001eureka: instance: preferipaddress: true client: serviceurl: defaultzone: http://localhost:3000/eureka ## 注冊到 eureka spring: application: name: single-provider ## 應用程序名稱，后面會在消費者中用到 |
http://127.0.0.1:3001/hello

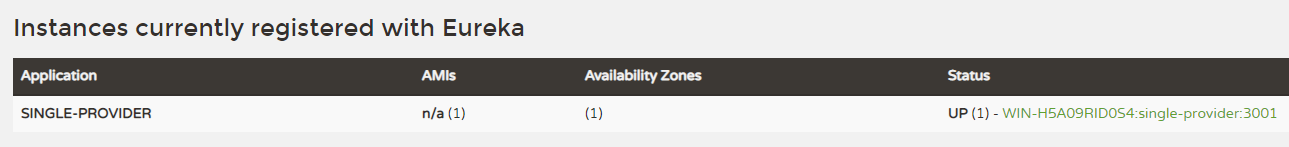

http://127.0.0.1:3000/
證明服務已經注冊成功
三、服務消費者
前面還是同上
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
|
<dependency> <groupid>org.springframework.boot</groupid> <artifactid>spring-boot-starter-test</artifactid> <scope>test</scope> </dependency> <dependency> <groupid>org.springframework.boot</groupid> <artifactid>spring-boot-starter-web</artifactid> </dependency> <dependency> <groupid>org.springframework.cloud</groupid> <artifactid>spring-cloud-starter-openfeign</artifactid> </dependency> <!-- eureka 客戶端 --> <dependency> <groupid>org.springframework.cloud</groupid> <artifactid>spring-cloud-starter-netflix-eureka-client</artifactid> </dependency> |
pom.xml新增以上內容
完整pom.xml
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
|
<?xml version="1.0" encoding="utf-8"?><project xmlns="http://maven.apache.org/pom/4.0.0" xmlns:xsi="http://www.w3.org/2001/xmlschema-instance" xsi:schemalocation="http://maven.apache.org/pom/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelversion>4.0.0</modelversion> <parent> <groupid>org.springframework.boot</groupid> <artifactid>spring-boot-starter-parent</artifactid> <version>2.1.3.release</version> <relativepath /> <!-- lookup parent from repository --> </parent> <groupid>com.example</groupid> <artifactid>eurekaclient1</artifactid> <version>0.0.1-snapshot</version> <name>eurekaclient1</name> <description>demo project for spring boot</description> <properties> <java.version>1.8</java.version> </properties> <dependencymanagement> <dependencies> <dependency> <groupid>org.springframework.cloud</groupid> <artifactid>spring-cloud-dependencies</artifactid> <version>finchley.sr2</version> <type>pom</type> <scope>import</scope> </dependency> </dependencies> </dependencymanagement> <dependencies> <dependency> <groupid>org.springframework.boot</groupid> <artifactid>spring-boot-starter</artifactid> </dependency> <dependency> <groupid>org.springframework.boot</groupid> <artifactid>spring-boot-starter-test</artifactid> <scope>test</scope> </dependency> <dependency> <groupid>org.springframework.boot</groupid> <artifactid>spring-boot-starter-web</artifactid> </dependency> <dependency> <groupid>org.springframework.cloud</groupid> <artifactid>spring-cloud-starter-openfeign</artifactid> </dependency> <!-- eureka 客戶端 --> <dependency> <groupid>org.springframework.cloud</groupid> <artifactid>spring-cloud-starter-netflix-eureka-client</artifactid> </dependency> </dependencies> <build> <plugins> <plugin> <groupid>org.springframework.boot</groupid> <artifactid>spring-boot-maven-plugin</artifactid> </plugin> </plugins> </build></project> |
eurekaclient2application
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
|
package com.example.demo;import org.springframework.boot.springapplication;import org.springframework.boot.autoconfigure.springbootapplication;import org.springframework.cloud.client.loadbalancer.loadbalanced;import org.springframework.cloud.netflix.eureka.enableeurekaclient;import org.springframework.cloud.openfeign.enablefeignclients;import org.springframework.context.annotation.bean;import org.springframework.web.client.resttemplate;@enableeurekaclient@enablefeignclients@springbootapplicationpublic class eurekaclient2application { /** * 注入 resttemplate * 并用 @loadbalanced 注解，用負載均衡策略請求服務提供者 * 這是 spring ribbon 的提供的能力 * @return */ @loadbalanced @bean public resttemplate resttemplate() { return new resttemplate(); //用于調用服務對象 } public static void main(string[] args) { springapplication.run(eurekaclient2application.class, args); }} |
consumercontroller
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
|
package com.example.demo;import org.springframework.beans.factory.annotation.autowired;import org.springframework.web.bind.annotation.requestmapping;import org.springframework.web.bind.annotation.restcontroller;import org.springframework.web.client.resttemplate;@restcontrollerpublic class consumercontroller { @autowired private resttemplate resttemplate; private static final string applicationname = "single-provider";//服務注冊名 @requestmapping(value = "commonrequest") public object commonrequest(){ string url = "http://"+ applicationname +"/hello"; string s = resttemplate.getforobject(url,string.class);//ribbon方式調用服務 return s; }} |
application.yml
|
1
2
3
4
5
6
7
8
9
10
11
|
server: port: 3002eureka: client: serviceurl: defaultzone: http://127.0.0.1:3000/eureka ## 注冊到 eureka instance: preferipaddress: truespring: application: name: single-customer |
啟動服務

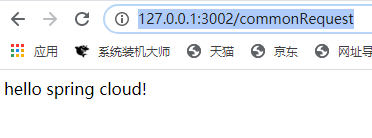

http://127.0.0.1:3002/commonrequest
返回服務提供者的 hello方法參數。
整個最簡單的過程就完成了，需要更好的使用spring cloud 后續需要了解分布式、負載均衡、熔斷等概念。在后續章節將一步步的拆分。
