新人剛開始學習ASP.NET MVC，若有不足之處希望能得到您的指點，不勝感激！

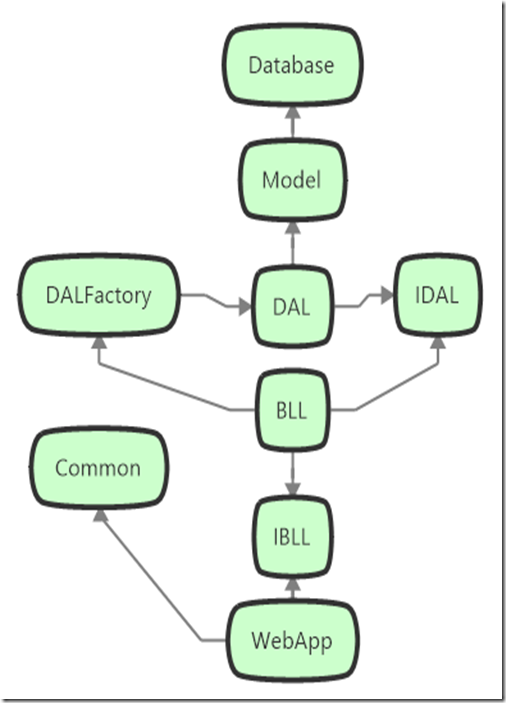

先來一張項目的層級結構圖:
Model：模型層，主要是各種類型、枚舉以及ORM框架，框架完成數據庫和實體類的映射。項目中選用了微軟的開源ORM框架 EntityFramework 6.0 （以下簡稱EF），數據庫則選擇了微軟的輕量級數據庫SQL Server Compact 4.0本地數據庫（簡稱Compact），Compact對EF支持比較完美，又屬于文檔型數據庫，部署起來比較簡潔。
DAL：數據訪問層，主要是對數據庫的操作層，為業務邏輯層或表示層提供數據服務。
IDAL：數據訪問接口層，是數據訪問層的接口，降低耦合。
DALFactory：數據會話層，封裝了所有數據操作類實例的創建，將數據訪問層與業務邏輯層解耦。
BLL：業務邏輯層，主要負責對數據層的操作，把一些數據層的操作進行組合以完成業務的需要。
IBLL：業務邏輯接口層，業務邏輯層的接口，降低耦合。
WebApp：表現層，是一個ASP.NET MVC項目，完成具體網站的實現。
Common：通用層，用來存放一些工具類。
下面是各個層級之間具體的實現，首先創建以 項目名.層級名 命名的各個層次，除WebApp層為ASP.NET MVC項目外，其余均創建為類庫項目。
模型層的構建
先建立模型層，新建ASP.NET 實體數據模型，關聯到已經設計好的數據庫，EF自動完成模型類的創建。
數據訪問層的構建
DAL層中，我們首先需要一個方法來獲取單例的EF數據操縱上下文對象，以保證每個用戶訪問時只有使用一個上下文對象對數據庫進行操作。
DbContextFactory.cs
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
|
using System.Data.Entity;using System.Runtime.Remoting.Messaging;using PMS.Model;namespace PMS.DAL{ public class DbContextFactory { /// <summary> /// 負責創建EF數據操作上下文實例,必須保證線程內唯一 /// </summary> public static DbContext CreateContext() { DbContext dbContext = (DbContext)CallContext.GetData("dbContext"); if (dbContext != null) return dbContext; dbContext = new PMSEntities(); CallContext.SetData("dbContext", dbContext); return dbContext; } }} |
為User類創建DAL層，實現查詢、分頁查詢、增加、刪除和修改這五個基本的方法：
UserDAL.cs
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
|
using System;using System.Data.Entity;using System.Linq;using PMS.IDAL;namespace PMS.DAL{ public partial class UserDal { public DbContext DbEntities = DbContextFactory.CreateContext(); /// <summary> /// 查詢過濾 /// </summary> /// <param name="whereLamada">過濾條件Lambda表達式</param> /// <returns>實體集合</returns> public IQueryable<UserDal> LoadEntities(System.Linq.Expressions.Expression<Func<UserDal, bool>> whereLamada) { return DbEntities.Set<UserDal>().Where(whereLamada); } /// <summary> /// 分頁查詢 /// </summary> /// <typeparam name="TS">排序類型</typeparam> /// <param name="pageIndex">查詢的頁碼</param> /// <param name="pageSize">每頁顯示的數目</param> /// <param name="totalCount">符合條件的總行數</param> /// <param name="whereLambda">過濾條件Lambda表達式</param> /// <param name="orderbyLambda">排序Lambda表達式</param> /// <param name="isAsc">排序方向</param> /// <returns>實體集合</returns> public IQueryable<UserDal> LoadPageEntities<TS>(int pageIndex, int pageSize, out int totalCount, System.Linq.Expressions.Expression<Func<UserDal, bool>> whereLambda, System.Linq.Expressions.Expression<Func<UserDal, TS>> orderbyLambda, bool isAsc) { var temp = DbEntities.Set<UserDal>().Where(whereLambda); totalCount = temp.Count(); temp = isAsc ? temp.OrderBy(orderbyLambda).Skip((pageIndex - 1) * pageSize).Take(pageSize) : temp.OrderByDescending(orderbyLambda).Skip((pageIndex - 1) * pageSize).Take(pageSize); return temp; } /// <summary> /// 刪除數據 /// </summary> /// <param name="entity">待刪數據</param> /// <returns>刪除結果</returns> public bool DeleteEntity(UserDal entity) { DbEntities.Entry(entity).State = EntityState.Deleted; return true; } /// <summary> /// 編輯數據 /// </summary> /// <param name="entity">待編輯數據</param> /// <returns>編輯結果</returns> public bool EditEntity(UserDal entity) { DbEntities.Entry(entity).State = EntityState.Modified; return true; } /// <summary> /// 添加數據 /// </summary> /// <param name="entity">待添加數據</param> /// <returns>已添加數據</returns> public UserDal AddEntity(UserDal entity) { entity = DbEntities.Set<UserDal>().Add(entity); return entity; } }} |
注：這里的增刪改操作并不即時進行，而是在封裝在數據會話層中，以實現工作單元模式，提高數據庫的操作效率。
考慮到每個類都需要實現相同的數據操作，我們可以將以上方法封裝到一個泛型基類中，各類型只需要繼承泛型基類就可以實現以上方法：
BaseDal.cs
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
|
using System;using System.Data.Entity;using System.Linq;namespace PMS.DAL{ public class BaseDal<T> where T:class ,new() { public DbContext DbEntities = DbContextFactory.CreateContext(); /// <summary> /// 查詢過濾 /// </summary> /// <param name="whereLamada">過濾條件Lambda表達式</param> /// <returns>實體集合</returns> public IQueryable<T> LoadEntities(System.Linq.Expressions.Expression<Func<T, bool>> whereLamada) { return DbEntities.Set<T>().Where(whereLamada); } /// <summary> /// 分頁查詢 /// </summary> /// <typeparam name="TS">排序類型</typeparam> /// <param name="pageIndex">查詢的頁碼</param> /// <param name="pageSize">每頁顯示的數目</param> /// <param name="totalCount">符合條件的總行數</param> /// <param name="whereLambda">過濾條件Lambda表達式</param> /// <param name="orderbyLambda">排序Lambda表達式</param> /// <param name="isAsc">排序方向</param> /// <returns>實體集合</returns> public IQueryable<T> LoadPageEntities<TS>(int pageIndex, int pageSize, out int totalCount, System.Linq.Expressions.Expression<Func<T, bool>> whereLambda, System.Linq.Expressions.Expression<Func<T, TS>> orderbyLambda, bool isAsc) { var temp = DbEntities.Set<T>().Where(whereLambda); totalCount = temp.Count(); temp = isAsc ? temp.OrderBy(orderbyLambda).Skip((pageIndex - 1) * pageSize).Take(pageSize) : temp.OrderByDescending(orderbyLambda).Skip((pageIndex - 1) * pageSize).Take(pageSize); return temp; } /// <summary> /// 刪除數據 /// </summary> /// <param name="entity">待刪數據</param> /// <returns>刪除結果</returns> public bool DeleteEntity(T entity) { DbEntities.Entry(entity).State = EntityState.Deleted; return true; } /// <summary> /// 編輯數據 /// </summary> /// <param name="entity">待編輯數據</param> /// <returns>編輯結果</returns> public bool EditEntity(T entity) { DbEntities.Entry(entity).State = EntityState.Modified; return true; } /// <summary> /// 添加數據 /// </summary> /// <param name="entity">待添加數據</param> /// <returns>已添加數據</returns> public T AddEntity(T entity) { entity = DbEntities.Set<T>().Add(entity); //DbEntities.SaveChanges(); return entity; } }} |
UserDal繼承BaseDal
|
1
2
3
4
5
6
7
8
9
10
|
using PMS.IDAL;using PMS.Model;namespace PMS.DAL{ public partial class UserDal : BaseDal<User> { }} |
數據訪問接口層的構建
然后我們建立相應的IbaseDal接口和IUserDal接口，并且使UserDal類實現IUserDal接口
IBaseDal：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
|
using System;using System.Linq;namespace PMS.IDAL{ public interface IBaseDal<T> where T:class,new() { IQueryable<T> LoadEntities(System.Linq.Expressions.Expression<Func<T, bool>> whereLamada); IQueryable<T> LoadPageEntities<s>(int pageIndex, int pageSize, out int totalCount, System.Linq.Expressions.Expression<Func<T, bool>> whereLambda, System.Linq.Expressions.Expression<Func<T, s>> orderbyLambda, bool isAsc); bool DeleteEntity(T entity); bool EditEntity(T entity); T AddEntity(T entity); }} |
IUserDal：
|
1
2
3
4
5
6
7
8
|
using PMS.Model;namespace PMS.IDAL{ public partial interface IUserDal:IBaseDal<User> { }} |
UserDal實現IUserDal接口：
public partial class UserDal : BaseDal<User>,IUserDal
數據會話層的構建
抽象工廠類AbstractFactory：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
|
using System.Configuration;using System.Reflection;using PMS.IDAL;namespace PMS.DALFactory{ public partial class AbstractFactory { //讀取保存在配置文件中的程序集名稱與命名空間名 private static readonly string AssemblyPath = ConfigurationManager.AppSettings["AssemblyPath"]; private static readonly string NameSpace = ConfigurationManager.AppSettings["NameSpace"]; /// <summary> /// 獲取UserDal的實例 /// </summary> /// <returns></returns> public static IUserDal CreateUserInfoDal() { var fullClassName = NameSpace + ".UserInfoDal"; return CreateInstance(fullClassName) as IUserDal; } /// <summary> /// 通過反射獲得程序集中某類型的實例 /// </summary> /// <param name="className"></param> /// <returns></returns> private static object CreateInstance(string className) { var assembly = Assembly.Load(AssemblyPath); return assembly.CreateInstance(className); } }} |
數據會話類DbSession：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
|
using System.Data.Entity;using PMS.IDAL;using PMS.DAL;namespace PMS.DALFactory{ public partial class DbSession:IDbSession { public DbContext Db { get { return DbContextFactory.CreateContext(); } } private IUserDal _userDal; public IUserDal UserDal { get { return _userDal ?? (_userDal = AbstractFactory.CreateUserInfoDal()); } set { _userDal = value; } } /// <summary> /// 工作單元模式，統一保存數據 /// </summary> /// <returns></returns> public bool SaveChanges() { return Db.SaveChanges() > 0; } }} |
業務邏輯層的構建
業務類基類BaseService
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
|
using System;using System.Linq;using System.Linq.Expressions;using PMS.DALFactory;using PMS.IDAL;namespace PMS.BLL{ public abstract class BaseService<T> where T:class,new() { public IDbSession CurrentDbSession { get { return new DbSession(); } } public IBaseDal<T> CurrentDal { get; set; } public abstract void SetCurrentDal(); public BaseService() { SetCurrentDal();//子類一定要實現抽象方法，以指明當前類的子類類型。 } /// <summary> /// 查詢過濾 /// </summary> /// <param name="whereLambda"></param> /// <returns></returns> public IQueryable<T> LoadEntities(Expression<Func<T, bool>> whereLambda) { return CurrentDal.LoadEntities(whereLambda); } /// <summary> /// 分頁 /// </summary> /// <typeparam name="s"></typeparam> /// <param name="pageIndex"></param> /// <param name="pageSize"></param> /// <param name="totalCount"></param> /// <param name="whereLambda"></param> /// <param name="orderbyLambda"></param> /// <param name="isAsc"></param> /// <returns></returns> public IQueryable<T> LoadPageEntities<s>(int pageIndex, int pageSize, out int totalCount, Expression<Func<T, bool>> whereLambda, Expression<Func<T, s>> orderbyLambda, bool isAsc) { return CurrentDal.LoadPageEntities<s>(pageIndex, pageSize, out totalCount, whereLambda, orderbyLambda, isAsc); } /// <summary> /// 刪除 /// </summary> /// <param name="entity"></param> /// <returns></returns> public bool DeleteEntity(T entity) { CurrentDal.DeleteEntity(entity); return CurrentDbSession.SaveChanges(); } /// <summary> /// 編輯 /// </summary> /// <param name="entity"></param> /// <returns></returns> public bool EditEntity(T entity) { CurrentDal.EditEntity(entity); return CurrentDbSession.SaveChanges(); } /// <summary> /// 添加數據 /// </summary> /// <param name="entity"></param> /// <returns></returns> public T AddEntity(T entity) { CurrentDal.AddEntity(entity); CurrentDbSession.SaveChanges(); return entity; } }} |
UserService類：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
|
using PMS.IBLL;using PMS.Model;namespace PMS.BLL{ public partial class UserService : BaseService<User> { public override void SetCurrentDal() { CurrentDal = CurrentDbSession.UserDal; } }} |
業務邏輯接口層的構建
直接建立對應的接口并使用UserService類實現IUserService接口
IBaseService接口：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
|
using System;using System.Linq;using System.Linq.Expressions;using PMS.IDAL;namespace PMS.IBLL{ public interface IBaseService<T> where T : class,new() { IDbSession CurrentDbSession { get; } IBaseDal<T> CurrentDal { get; set; } void SetCurrentDal(); IQueryable<T> LoadEntities(Expression<Func<T, bool>> whereLambda); IQueryable<T> LoadPageEntities<s>(int pageIndex, int pageSize, out int totalCount, Expression<Func<T, bool>> whereLambda, Expression<Func<T, s>> orderbyLambda, bool isAsc); bool DeleteEntity(T entity); bool EditEntity(T entity); T AddEntity(T entity); }} |
IUserService接口:
|
1
2
3
4
5
6
7
8
9
|
using PMS.Model;namespace PMS.IBLL{ public partial interface IUserService:IBaseService<User> { }} |
使用UserService類實現IUserService接口:
public partial class UserService : BaseService<User>, IUserService
以上我們就完成了整個框架中關于User類的各層次的實現。
以上就是本文的全部內容，希望對大家的學習有所幫助，也希望大家多多支持服務器之家。
