契約
新建一個WCF服務類庫項目，在其中添加兩個WCF服務：GameService，PlayerService
代碼如下：
|
1
2
3
4
5
6
|
[ServiceContract]public interface IGameService{ [OperationContract] Task<string> DoWork(string arg);} |
|
1
2
3
4
5
6
7
|
public class GameService : IGameService{ public async Task<string> DoWork(string arg) { return await Task.FromResult($"Hello {arg}, I am the GameService."); }} |
|
1
2
3
4
5
6
|
[ServiceContract]public interface IPlayerService{ [OperationContract] Task<string> DoWork(string arg);} |
|
1
2
3
4
5
6
7
|
public class PlayerService : IPlayerService{ public async Task<string> DoWork(string arg) { return await Task.FromResult($"Hello {arg}, I am the PlayerService."); }} |
服務端
新建一個控制臺應用程序，添加一個類 ServiceHostManager
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
|
public interface IServiceHostManager : IDisposable{ void Start(); void Stop();}public class ServiceHostManager<TService> : IServiceHostManager where TService : class{ ServiceHost _host; public ServiceHostManager() { _host = new ServiceHost(typeof(TService)); _host.Opened += (s, a) => { Console.WriteLine("WCF監聽已啟動！{0}", _host.Description.Endpoints[0].Address); }; _host.Closed += (s, a) => { Console.WriteLine("WCF服務已終止！{0}", _host.Description.Endpoints[0].Name); }; } public void Start() { Console.WriteLine("正在開啟WCF服務...{0}", _host.Description.Endpoints[0].Name); _host.Open(); } public void Stop() { if (_host != null && _host.State == CommunicationState.Opened) { Console.WriteLine("正在關閉WCF服務...{0}", _host.Description.Endpoints[0].Name); _host.Close(); } } public void Dispose() { Stop(); } public static Task StartNew(CancellationTokenSource cancelTokenSource) { var theTask = Task.Factory.StartNew(() => { IServiceHostManager shs = null; try { shs = new ServiceHostManager<TService>(); shs.Start(); while (true) { if (cancelTokenSource.IsCancellationRequested && shs != null) { shs.Stop(); break; } } } catch (Exception ex) { Console.WriteLine(ex); if (shs != null) shs.Stop(); } }, cancelTokenSource.Token); return theTask; }} |
在Main方法中啟動WCF主機
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
|
class Program { static Program() { Console.WriteLine("初始化..."); Console.WriteLine("服務運行期間，請不要關閉窗口。"); Console.WriteLine(); } static void Main(string[] args) { Console.Title = "WCF主機 x64.（按 [Esc] 鍵停止服務）"; var cancelTokenSource = new CancellationTokenSource(); ServiceHostManager<WcfContract.Services.GameService>.StartNew(cancelTokenSource); ServiceHostManager<WcfContract.Services.PlayerService>.StartNew(cancelTokenSource); while (true) { if (Console.ReadKey().Key == ConsoleKey.Escape) { Console.WriteLine(); cancelTokenSource.Cancel(); break; } } Console.ReadLine(); } } |
服務端配置
在控制臺應用程序的App.config中配置system.serviceModel
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
|
<system.serviceModel> <services> <service name="Wettery.WcfContract.Services.GameService" behaviorConfiguration="gameMetadataBehavior"> <endpoint address="net.tcp://localhost:19998/Wettery/GameService" binding="netTcpBinding" contract="Wettery.WcfContract.Services.IGameService" bindingConfiguration="netTcpBindingConfig"> <identity> <dns value="localhost" /> </identity> </endpoint> </service> <service name="Wettery.WcfContract.Services.PlayerService" behaviorConfiguration="playerMetadataBehavior"> <endpoint address="net.tcp://localhost:19998/Wettery/PlayerService" binding="netTcpBinding" contract="Wettery.WcfContract.Services.IPlayerService" bindingConfiguration="netTcpBindingConfig"> <identity> <dns value="localhost" /> </identity> </endpoint> </service> </services> <bindings> <netTcpBinding> <binding name="netTcpBindingConfig" closeTimeout="00:30:00" openTimeout="00:30:00" receiveTimeout="00:30:00" sendTimeout="00:30:00" transactionFlow="false" transferMode="Buffered" transactionProtocol="OleTransactions" hostNameComparisonMode="StrongWildcard" listenBacklog="100" maxBufferPoolSize="2147483647" maxBufferSize="2147483647" maxConnections="100" maxReceivedMessageSize="2147483647"> <readerQuotas maxDepth="64" maxStringContentLength="2147483647" maxArrayLength="2147483647 " maxBytesPerRead="4096" maxNameTableCharCount="16384" /> <reliableSession ordered="true" inactivityTimeout="00:30:00" enabled="false" /> <security mode="Transport"> <transport clientCredentialType="Windows" protectionLevel="EncryptAndSign" /> </security> </binding> </netTcpBinding> </bindings> <behaviors> <serviceBehaviors> <behavior name="gameMetadataBehavior"> <serviceMetadata httpGetEnabled="True" httpGetUrl="http://localhost:8081/Wettery/GameService/MetaData" /> <serviceDebug includeExceptionDetailInFaults="True" /> <serviceThrottling maxConcurrentCalls="1000" maxConcurrentInstances="1000" maxConcurrentSessions="1000" /> </behavior> <behavior name="playerMetadataBehavior"> <serviceMetadata httpGetEnabled="True" httpGetUrl="http://localhost:8081/Wettery/PlayerService/MetaData" /> <serviceDebug includeExceptionDetailInFaults="True" /> <serviceThrottling maxConcurrentCalls="1000" maxConcurrentInstances="1000" maxConcurrentSessions="1000" /> </behavior> </serviceBehaviors> </behaviors> </system.serviceModel> |
未避免元數據泄露，部署時將HttpGetEnable設為False

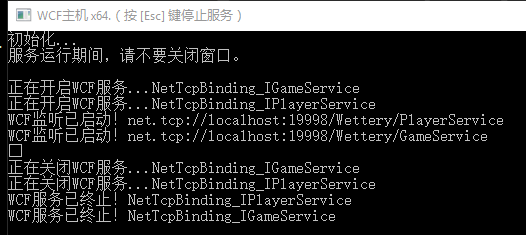

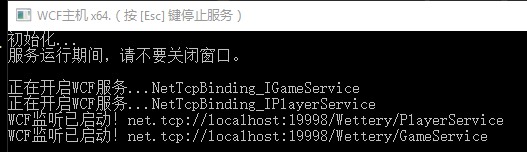

運行控制臺應用程序
客戶端測試

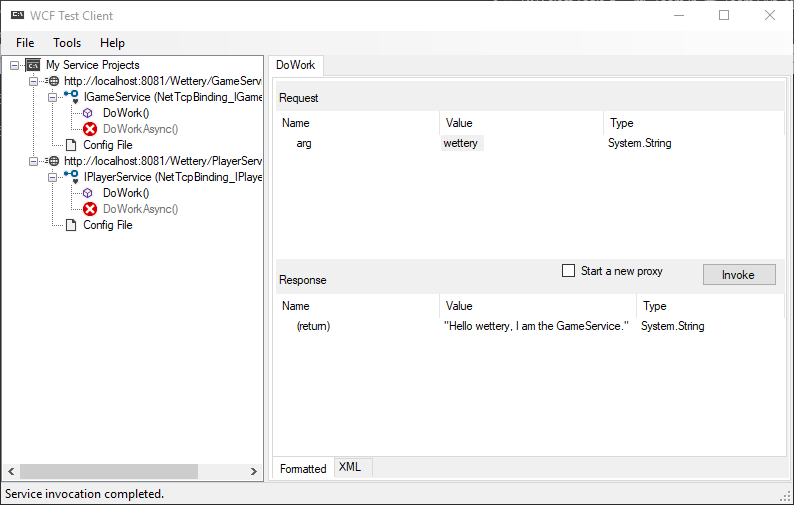

服務端運行后，用wcftestclient工具測試，服務地址即behavior中配置的元數據GET地址
http://localhost:8081/Wettery/GameService/MetaData
http://localhost:8081/Wettery/PlayerService/MetaData
總結
