網上好多例子都是群發的，本文實現一對一的發送，給指定客戶端進行消息推送
1、本文使用到netty-socketio開源庫，以及mysql，所以首先在pom.xml中添加相應的依賴庫
|
1
2
3
4
5
6
7
8
9
10
11
12
13
|
<dependency> <groupid>com.corundumstudio.socketio</groupid> <artifactid>netty-socketio</artifactid> <version>1.7.11</version> </dependency> <dependency> <groupid>org.springframework.boot</groupid> <artifactid>spring-boot-starter-data-jpa</artifactid> </dependency> <dependency> <groupid>mysql</groupid> <artifactid>mysql-connector-java</artifactid> </dependency> |
2、修改application.properties, 添加端口及主機數據庫連接等相關配置，
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
|
wss.server.port=8081wss.server.host=localhost spring.datasource.url = jdbc:mysql://127.0.0.1:3306/springlearn spring.datasource.username = root spring.datasource.password = root spring.datasource.driverclassname = com.mysql.jdbc.driver # specify the dbms spring.jpa.database = mysql # show or not log for each sql query spring.jpa.show-sql = true# hibernate ddl auto (create, create-drop, update) spring.jpa.hibernate.ddl-auto = update # naming strategy spring.jpa.hibernate.naming-strategy = org.hibernate.cfg.improvednamingstrategy # stripped before adding them to the entity manager) spring.jpa.properties.hibernate.dialect = org.hibernate.dialect.mysql5dialect |
3、修改application文件，添加nettysocket的相關配置信息
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
|
package com.xiaofangtech.sunt; import org.springframework.beans.factory.annotation.value; import org.springframework.boot.springapplication; import org.springframework.boot.autoconfigure.springbootapplication; import org.springframework.context.annotation.bean; import com.corundumstudio.socketio.authorizationlistener; import com.corundumstudio.socketio.configuration; import com.corundumstudio.socketio.handshakedata; import com.corundumstudio.socketio.socketioserver; import com.corundumstudio.socketio.annotation.springannotationscanner; @springbootapplicationpublic class nettysocketspringapplication { @value("${wss.server.host}") private string host; @value("${wss.server.port}") private integer port; @bean public socketioserver socketioserver() { configuration config = new configuration(); config.sethostname(host); config.setport(port); //該處可以用來進行身份驗證 config.setauthorizationlistener(new authorizationlistener() { @override public boolean isauthorized(handshakedata data) { //http://localhost:8081?username=test&password=test //例如果使用上面的鏈接進行connect，可以使用如下代碼獲取用戶密碼信息，本文不做身份驗證 // string username = data.getsingleurlparam("username"); // string password = data.getsingleurlparam("password"); return true; } }); final socketioserver server = new socketioserver(config); return server; } @bean public springannotationscanner springannotationscanner(socketioserver socketserver) { return new springannotationscanner(socketserver); } public static void main(string[] args) { springapplication.run(nettysocketspringapplication.class, args); } } |
4、添加消息結構類messageinfo.java
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
|
package com.xiaofangtech.sunt.message; public class messageinfo { //源客戶端id private string sourceclientid; //目標客戶端id private string targetclientid; //消息類型 private string msgtype; //消息內容 private string msgcontent; public string getsourceclientid() { return sourceclientid; } public void setsourceclientid(string sourceclientid) { this.sourceclientid = sourceclientid; } public string gettargetclientid() { return targetclientid; } public void settargetclientid(string targetclientid) { this.targetclientid = targetclientid; } public string getmsgtype() { return msgtype; } public void setmsgtype(string msgtype) { this.msgtype = msgtype; } public string getmsgcontent() { return msgcontent; } public void setmsgcontent(string msgcontent) { this.msgcontent = msgcontent; } } |
5、添加客戶端信息，用來存放客戶端的sessionid
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
|
package com.xiaofangtech.sunt.bean; import java.util.date; import javax.persistence.entity; import javax.persistence.id; import javax.persistence.table; import javax.validation.constraints.notnull; @entity@table(name="t_clientinfo") public class clientinfo { @id @notnull private string clientid; private short connected; private long mostsignbits; private long leastsignbits; private date lastconnecteddate; public string getclientid() { return clientid; } public void setclientid(string clientid) { this.clientid = clientid; } public short getconnected() { return connected; } public void setconnected(short connected) { this.connected = connected; } public long getmostsignbits() { return mostsignbits; } public void setmostsignbits(long mostsignbits) { this.mostsignbits = mostsignbits; } public long getleastsignbits() { return leastsignbits; } public void setleastsignbits(long leastsignbits) { this.leastsignbits = leastsignbits; } public date getlastconnecteddate() { return lastconnecteddate; } public void setlastconnecteddate(date lastconnecteddate) { this.lastconnecteddate = lastconnecteddate; } } |
6、添加查詢數據庫接口clientinforepository.java
|
1
2
3
4
5
6
7
8
9
|
package com.xiaofangtech.sunt.repository; import org.springframework.data.repository.crudrepository; import com.xiaofangtech.sunt.bean.clientinfo; public interface clientinforepository extends crudrepository<clientinfo, string>{ clientinfo findclientbyclientid(string clientid); } |
7、添加消息處理類messageeventhandler.java
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
|
package com.xiaofangtech.sunt.message; import java.util.date; import java.util.uuid; import org.springframework.beans.factory.annotation.autowired; import org.springframework.stereotype.component; import com.corundumstudio.socketio.ackrequest; import com.corundumstudio.socketio.socketioclient; import com.corundumstudio.socketio.socketioserver; import com.corundumstudio.socketio.annotation.onconnect; import com.corundumstudio.socketio.annotation.ondisconnect; import com.corundumstudio.socketio.annotation.onevent; import com.xiaofangtech.sunt.bean.clientinfo; import com.xiaofangtech.sunt.repository.clientinforepository; @componentpublic class messageeventhandler { private final socketioserver server; @autowired private clientinforepository clientinforepository; @autowired public messageeventhandler(socketioserver server) { this.server = server; } //添加connect事件，當客戶端發起連接時調用，本文中將clientid與sessionid存入數據庫 //方便后面發送消息時查找到對應的目標client, @onconnect public void onconnect(socketioclient client) { string clientid = client.gethandshakedata().getsingleurlparam("clientid"); clientinfo clientinfo = clientinforepository.findclientbyclientid(clientid); if (clientinfo != null) { date nowtime = new date(system.currenttimemillis()); clientinfo.setconnected((short)1); clientinfo.setmostsignbits(client.getsessionid().getmostsignificantbits()); clientinfo.setleastsignbits(client.getsessionid().getleastsignificantbits()); clientinfo.setlastconnecteddate(nowtime); clientinforepository.save(clientinfo); } } //添加@ondisconnect事件，客戶端斷開連接時調用，刷新客戶端信息 @ondisconnect public void ondisconnect(socketioclient client) { string clientid = client.gethandshakedata().getsingleurlparam("clientid"); clientinfo clientinfo = clientinforepository.findclientbyclientid(clientid); if (clientinfo != null) { clientinfo.setconnected((short)0); clientinfo.setmostsignbits(null); clientinfo.setleastsignbits(null); clientinforepository.save(clientinfo); } } //消息接收入口，當接收到消息后，查找發送目標客戶端，并且向該客戶端發送消息，且給自己發送消息 @onevent(value = "messageevent") public void onevent(socketioclient client, ackrequest request, messageinfo data) { string targetclientid = data.gettargetclientid(); clientinfo clientinfo = clientinforepository.findclientbyclientid(targetclientid); if (clientinfo != null && clientinfo.getconnected() != 0) { uuid uuid = new uuid(clientinfo.getmostsignbits(), clientinfo.getleastsignbits()); system.out.println(uuid.tostring()); messageinfo senddata = new messageinfo(); senddata.setsourceclientid(data.getsourceclientid()); senddata.settargetclientid(data.gettargetclientid()); senddata.setmsgtype("chat"); senddata.setmsgcontent(data.getmsgcontent()); client.sendevent("messageevent", senddata); server.getclient(uuid).sendevent("messageevent", senddata); } } } |
8、添加serverrunner.java
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
|
package com.xiaofangtech.sunt.message; import org.springframework.beans.factory.annotation.autowired; import org.springframework.boot.commandlinerunner; import org.springframework.stereotype.component; import com.corundumstudio.socketio.socketioserver; @componentpublic class serverrunner implements commandlinerunner { private final socketioserver server; @autowired public serverrunner(socketioserver server) { this.server = server; } @override public void run(string... args) throws exception { server.start(); } } |

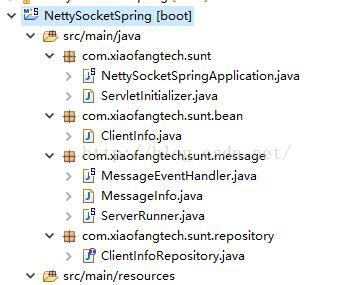

9、工程結構
10、運行測試
1） 添加基礎數據，數據庫中預置3個客戶端testclient1,testclient2,testclient3
2) 創建客戶端文件index.html,index2.html,index3.html分別代表testclient1 testclient2 testclient3三個用戶
本文直接修改的https://github.com/mrniko/netty-socketio-demo/tree/master/client 中的index.html文件
其中clientid為發送者id， targetclientid為目標方id，本文簡單的將發送方和接收方寫死在html文件中
使用 以下代碼進行連接
|
1
|
io.connect('http://localhost:8081?clientid='+clientid); |
index.html 文件內容如下
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
|
<!doctype html> <html> <head> <meta charset="utf-8" /> <title>demo chat</title> <link href="bootstrap.css" rel="external nofollow" rel="stylesheet"> <style> body { padding:20px; } #console { height: 400px; overflow: auto; } .username-msg {color:orange;} .connect-msg {color:green;} .disconnect-msg {color:red;} .send-msg {color:#888} </style> <script src="js/socket.io/socket.io.js"></script> <script src="js/moment.min.js"></script> <script src="http://code.jquery.com/jquery-1.10.1.min.js"></script> <script> var clientid = 'testclient1'; var targetclientid= 'testclient2'; var socket = io.connect('http://localhost:8081?clientid='+clientid); socket.on('connect', function() { output('<span class="connect-msg">client has connected to the server!</span>'); }); socket.on('messageevent', function(data) { output('<span class="username-msg">' + data.sourceclientid + ':</span> ' + data.msgcontent); }); socket.on('disconnect', function() { output('<span class="disconnect-msg">the client has disconnected!</span>'); }); function senddisconnect() { socket.disconnect(); } function sendmessage() { var message = $('#msg').val(); $('#msg').val(''); var jsonobject = {sourceclientid: clientid, targetclientid: targetclientid, msgtype: 'chat', msgcontent: message}; socket.emit('messageevent', jsonobject); } function output(message) { var currenttime = "<span class='time'>" + moment().format('hh:mm:ss.sss') + "</span>"; var element = $("<div>" + currenttime + " " + message + "</div>"); $('#console').prepend(element); } $(document).keydown(function(e){ if(e.keycode == 13) { $('#send').click(); } }); </script> </head> <body> <h1>netty-socketio demo chat</h1> <br/> <div id="console" class="well"> </div> <form class="well form-inline" onsubmit="return false;"> <input id="msg" class="input-xlarge" type="text" placeholder="type something..."/> <button type="button" onclick="sendmessage()" class="btn" id="send">send</button> <button type="button" onclick="senddisconnect()" class="btn">disconnect</button> </form> </body> </html> |
3、本例測試時
testclient1 發送消息給 testclient2
testclient2 發送消息給 testclient1
testclient3發送消息給testclient1

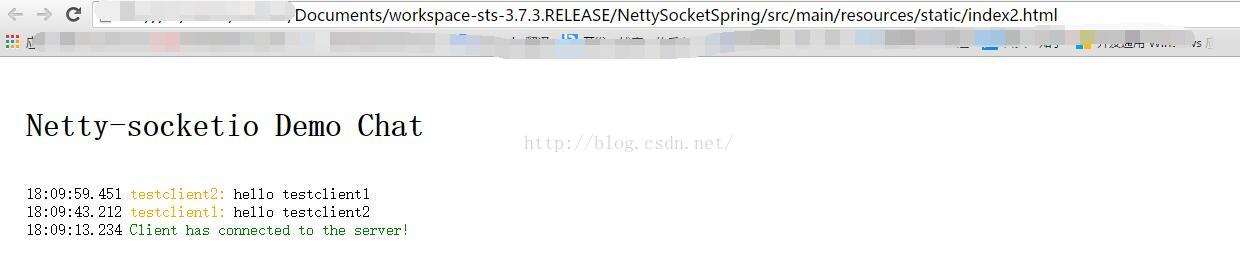

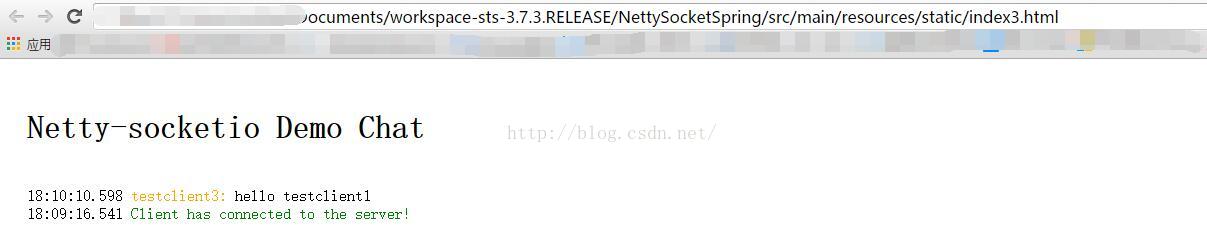

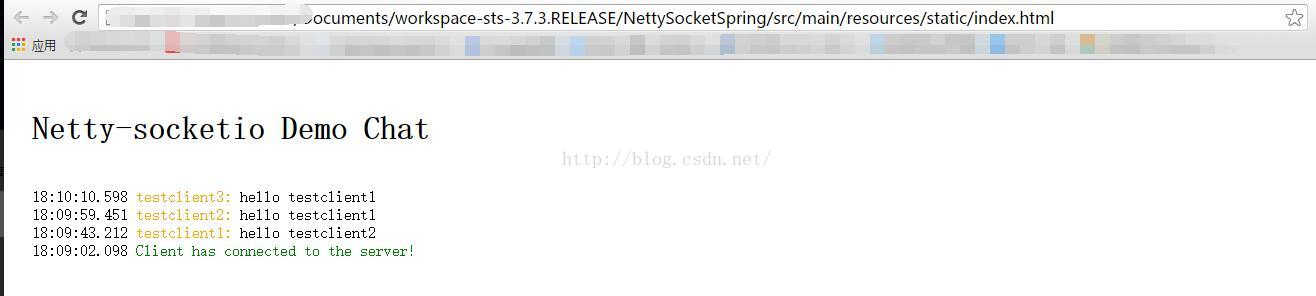

運行結果如下
以上就是本文的全部?jī)?nèi)容，希望對大家的學習有所幫助，也希望大家多多支持服務器之家。
