本文實例為大家分享了JAVA實現人臉識別的具體代碼，供大家參考，具體內容如下
官方下載 安裝文件 ，以win7為例，下載opencv-2.4.13.3-vc14.exe
安裝后，在build目錄下 D:\opencv\build\java，獲取opencv-2413.jar，copy至項目目錄
同時需要dll文件 與 各 識別xml文件，進行不同特征的識別（人臉，側臉，眼睛等）
dll目錄：D:\opencv\build\java\x64\opencv_java2413.dll
xml目錄：D:\opencv\sources\data\haarcascades\haarcascade_frontalface_alt.xml（目錄中有各類識別文件）

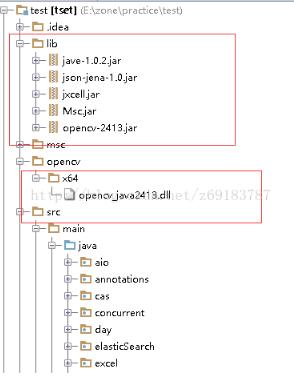

項目結構：
具體代碼：由于需要用到 opencv 的dll文件，故要么放在java library path 中，或放在jre lib 中，windows下可放在System32目錄下，也可以在代碼中動態加載，如下：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
|
package opencv; import com.sun.scenario.effect.ImageData; import org.opencv.core.*; import org.opencv.core.Point; import org.opencv.highgui.Highgui; import org.opencv.imgproc.Imgproc; import org.opencv.objdetect.CascadeClassifier; import javax.imageio.ImageIO; import javax.swing.*; import java.awt.*; import java.awt.image.BufferedImage; import java.io.File; import java.io.IOException; import java.util.Arrays; import java.util.Vector; /** * Created by Administrator on 2017/8/17. */public class Test { static{ // 導入opencv的庫 String opencvpath = System.getProperty("user.dir") + "\\opencv\\x64\\"; String libPath = System.getProperty("java.library.path"); String a = opencvpath + Core.NATIVE_LIBRARY_NAME + ".dll"; System.load(opencvpath + Core.NATIVE_LIBRARY_NAME + ".dll"); } public static String getCutPath(String filePath){ String[] splitPath = filePath.split("\\."); return splitPath[0]+"Cut"+"."+splitPath[1]; } public static void process(String original,String target) throws Exception { String originalCut = getCutPath(original); String targetCut = getCutPath(target); if(detectFace(original,originalCut) && detectFace(target,targetCut)){ } } public static boolean detectFace(String imagePath,String outFile) throws Exception { System.out.println("\nRunning DetectFaceDemo"); // 從配置文件lbpcascade_frontalface.xml中創建一個人臉識別器，該文件位于opencv安裝目錄中 CascadeClassifier faceDetector = new CascadeClassifier( "C:\\Users\\Administrator\\Desktop\\opencv\\haarcascade_frontalface_alt.xml"); Mat image = Highgui.imread(imagePath); // 在圖片中檢測人臉 MatOfRect faceDetections = new MatOfRect(); faceDetector.detectMultiScale(image, faceDetections); System.out.println(String.format("Detected %s faces", faceDetections.toArray().length)); Rect[] rects = faceDetections.toArray(); if(rects != null && rects.length > 1){ throw new RuntimeException("超過一個臉"); } // 在每一個識別出來的人臉周圍畫出一個方框 Rect rect = rects[0]; Core.rectangle(image, new Point(rect.x-2, rect.y-2), new Point(rect.x + rect.width, rect.y + rect.height), new Scalar(0, 255, 0)); Mat sub = image.submat(rect); Mat mat = new Mat(); Size size = new Size(300, 300); Imgproc.resize(sub, mat, size);//將人臉進行截圖并保存 return Highgui.imwrite(outFile, mat); // 將結果保存到文件 // String filename = "C:\\Users\\Administrator\\Desktop\\opencv\\faceDetection.png"; // System.out.println(String.format("Writing %s", filename)); // Highgui.imwrite(filename, image); } public static void setAlpha(String imagePath,String outFile) { /** * 增加測試項 * 讀取圖片，繪制成半透明 */ try { ImageIcon imageIcon = new ImageIcon(imagePath); BufferedImage bufferedImage = new BufferedImage(imageIcon.getIconWidth(),imageIcon.getIconHeight() , BufferedImage.TYPE_4BYTE_ABGR); Graphics2D g2D = (Graphics2D) bufferedImage.getGraphics(); g2D.drawImage(imageIcon.getImage(), 0, 0, imageIcon.getImageObserver()); //循環每一個像素點，改變像素點的Alpha值 int alpha = 100; for (int j1 = bufferedImage.getMinY(); j1 < bufferedImage.getHeight(); j1++) { for (int j2 = bufferedImage.getMinX(); j2 < bufferedImage.getWidth(); j2++) { int rgb = bufferedImage.getRGB(j2, j1); rgb = ( (alpha + 1) << 24) | (rgb & 0x00ffffff); bufferedImage.setRGB(j2, j1, rgb); } } g2D.drawImage(bufferedImage, 0, 0, imageIcon.getImageObserver()); //生成圖片為PNG ImageIO.write(bufferedImage, "png", new File(outFile)); } catch (Exception e) { e.printStackTrace(); } } private static void watermark(String a,String b,String outFile, float alpha) throws IOException { // 獲取底圖 BufferedImage buffImg = ImageIO.read(new File(a)); // 獲取層圖 BufferedImage waterImg = ImageIO.read(new File(b)); // 創建Graphics2D對象，用在底圖對象上繪圖 Graphics2D g2d = buffImg.createGraphics(); int waterImgWidth = waterImg.getWidth();// 獲取層圖的寬度 int waterImgHeight = waterImg.getHeight();// 獲取層圖的高度 // 在圖形和圖像中實現混合和透明效果 g2d.setComposite(AlphaComposite.getInstance(AlphaComposite.SRC_ATOP, alpha)); // 繪制 g2d.drawImage(waterImg, 0, 0, waterImgWidth, waterImgHeight, null); g2d.dispose();// 釋放圖形上下文使用的系統資源 //生成圖片為PNG ImageIO.write(buffImg, "png", new File(outFile)); } public static boolean mergeSimple(BufferedImage image1, BufferedImage image2, int posw, int posh, File fileOutput) { //合并兩個圖像 int w1 = image1.getWidth(); int h1 = image1.getHeight(); int w2 = image2.getWidth(); int h2 = image2.getHeight(); BufferedImage imageSaved = new BufferedImage(w1, h1, BufferedImage.TYPE_INT_ARGB); Graphics2D g2d = imageSaved.createGraphics(); // 增加下面代碼使得背景透明 g2d.drawImage(image1, null, 0, 0); image1 = g2d.getDeviceConfiguration().createCompatibleImage(w1, w2, Transparency.TRANSLUCENT); g2d.dispose(); g2d = image1.createGraphics(); // 背景透明代碼結束 // for (int i = 0; i < w2; i++) { // for (int j = 0; j < h2; j++) { // int rgb1 = image1.getRGB(i + posw, j + posh); // int rgb2 = image2.getRGB(i, j); // // if (rgb1 != rgb2) { // //rgb2 = rgb1 & rgb2; // } // imageSaved.setRGB(i + posw, j + posh, rgb2); // } // } boolean b = false; try { b = ImageIO.write(imageSaved, "png", fileOutput); } catch (IOException ie) { ie.printStackTrace(); } return b; } public static void main(String[] args) throws Exception { String a,b,c,d; a = "C:\\Users\\Administrator\\Desktop\\opencv\\zzl.jpg"; d = "C:\\Users\\Administrator\\Desktop\\opencv\\cgx.jpg"; //process(a,d); a = "C:\\Users\\Administrator\\Desktop\\opencv\\zzlCut.jpg"; d = "C:\\Users\\Administrator\\Desktop\\opencv\\cgxCut.jpg"; CascadeClassifier faceDetector = new CascadeClassifier( "C:\\Users\\Administrator\\Desktop\\opencv\\haarcascade_frontalface_alt.xml"); CascadeClassifier eyeDetector1 = new CascadeClassifier( "C:\\Users\\Administrator\\Desktop\\opencv\\haarcascade_eye.xml"); CascadeClassifier eyeDetector2 = new CascadeClassifier( "C:\\Users\\Administrator\\Desktop\\opencv\\haarcascade_eye_tree_eyeglasses.xml"); Mat image = Highgui.imread("C:\\Users\\Administrator\\Desktop\\opencv\\gakki.jpg"); // 在圖片中檢測人臉 MatOfRect faceDetections = new MatOfRect(); //eyeDetector2.detectMultiScale(image, faceDetections); Vector<Rect> objects; eyeDetector1.detectMultiScale(image, faceDetections, 2.0,1,1,new Size(20,20),new Size(20,20)); Rect[] rects = faceDetections.toArray(); Rect eyea,eyeb; eyea = rects[0];eyeb = rects[1]; System.out.println("a-中心坐標 " + eyea.x + " and " + eyea.y); System.out.println("b-中心坐標 " + eyeb.x + " and " + eyeb.y); //獲取兩個人眼的角度 double dy=(eyeb.y-eyea.y); double dx=(eyeb.x-eyea.x); double len=Math.sqrt(dx*dx+dy*dy); System.out.println("dx is "+dx); System.out.println("dy is "+dy); System.out.println("len is "+len); double angle=Math.atan2(Math.abs(dy),Math.abs(dx))*180.0/Math.PI; System.out.println("angle is "+angle); for(Rect rect:faceDetections.toArray()) { Core.rectangle(image, new Point(rect.x, rect.y), new Point(rect.x + rect.width, rect.y + rect.height), new Scalar(0, 255, 0)); } String filename = "C:\\Users\\Administrator\\Desktop\\opencv\\ouput.png"; System.out.println(String.format("Writing %s", filename)); Highgui.imwrite(filename, image); // watermark(a,d,"C:\\Users\\Administrator\\Desktop\\opencv\\zzlTm2.jpg",0.7f); // // // 讀取圖像，不改變圖像的原始信息 // Mat image1 = Highgui.imread(a); // Mat image2 = Highgui.imread(d); // Mat mat1 = new Mat();Mat mat2 = new Mat(); // Size size = new Size(300, 300); // Imgproc.resize(image1, mat1, size); // Imgproc.resize(image2, mat2, size); // Mat mat3 = new Mat(size,CvType.CV_64F); // //Core.addWeighted(mat1, 0.5, mat2, 1, 0, mat3); // // //Highgui.imwrite("C:\\Users\\Administrator\\Desktop\\opencv\\add.jpg", mat3); // // mergeSimple(ImageIO.read(new File(a)), // ImageIO.read(new File(d)),0,0, // new File("C:\\Users\\Administrator\\Desktop\\opencv\\add.jpg")); } } |
最終效果：人臉旁有綠色邊框，可以將綠色邊框圖片截取，生成人臉圖
以上就是本文的全部內容，希望對大家的學習有所幫助，也希望大家多多支持服務器之家。
原文鏈接：http://blog.csdn.net/z69183787/article/details/77334829
