介紹：
上篇給大家介紹了ssm多模塊項目的搭建，在搭建過程中spring整合springmvc和mybatis時會有很多的東西需要我們進行配置，這樣不僅浪費了時間，也比較容易出錯，由于這樣問題的產生，pivotal團隊提供了一款全新的框架，該框架使用了特定的方式來進行配置，從而使開發人員不再需要定義樣板化的配置。通過這種方式，spring boot致力于在蓬勃發展的快速應用開發領域(rapid application development)成為領導者。
特點:
1. 創建獨立的spring應用程序
2. 嵌入的tomcat，無需部署war文件
3. 簡化maven配置
4. 自動配置spring
5. 提供生產就緒型功能，如指標，健康檢查和外部配置
6. 絕對沒有代碼生成和對xml沒有要求配置
(以上大部分內容摘自百度百科)
ok，關于springboot的講解就到這里大家想了解的更詳細可以自行百度。
搭建springboot項目我推薦大家用idea或者sts（spring tool suite spring公司自己研發的一款編輯器），我現在用的是idea，所以接下來我是用idea搭建項目的

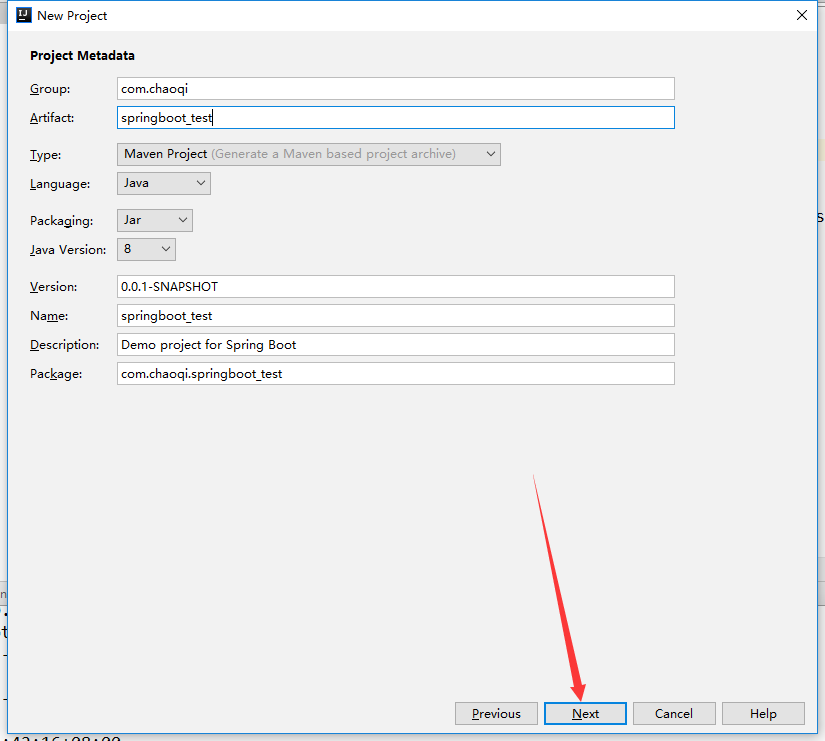

一、創建項目
填寫完group和atrifact后點擊下一步，這里我選擇的是jar，因為官方文檔推薦的是打包成jar，所以這里就不過多解釋了。
這里勾選上web
這里勾選上mysql、jdbc和mybatis點擊下一步
這里輸入項目名和項目路徑后點擊完成
這是新建完成后的項目結構
二、添加pom.xml依賴
因為springboot不推薦使用jsp做頁面，如果想要使用就必需的添加jsp的依賴
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
|
<?xml version="1.0" encoding="utf-8"?><project xmlns="http://maven.apache.org/pom/4.0.0" xmlns:xsi="http://www.w3.org/2001/xmlschema-instance" xsi:schemalocation="http://maven.apache.org/pom/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelversion>4.0.0</modelversion> <groupid>com.chaoqi</groupid> <artifactid>springboot_demo2</artifactid> <version>0.0.1-snapshot</version> <packaging>jar</packaging> <name>springboot_demo2</name> <description>demo project for spring boot</description> <parent> <groupid>org.springframework.boot</groupid> <artifactid>spring-boot-starter-parent</artifactid> <version>2.0.0.release</version> <relativepath/> </parent> <properties> <project.build.sourceencoding>utf-8</project.build.sourceencoding> <project.reporting.outputencoding>utf-8</project.reporting.outputencoding> <java.version>1.8</java.version> </properties> <dependencies> <dependency> <groupid>org.springframework.boot</groupid> <artifactid>spring-boot-starter-jdbc</artifactid> </dependency> <dependency> <groupid>org.springframework.boot</groupid> <artifactid>spring-boot-starter-web</artifactid> </dependency> <dependency> <groupid>org.mybatis.spring.boot</groupid> <artifactid>mybatis-spring-boot-starter</artifactid> <version>1.3.2</version> </dependency> <dependency> <groupid>mysql</groupid> <artifactid>mysql-connector-java</artifactid> <scope>runtime</scope> </dependency> <dependency> <groupid>org.springframework.boot</groupid> <artifactid>spring-boot-starter-test</artifactid> <scope>test</scope> </dependency> <!--添加jsp依賴 --> <dependency> <groupid>org.springframework.boot</groupid> <artifactid>spring-boot-starter-tomcat</artifactid> </dependency> <dependency> <groupid>org.apache.tomcat.embed</groupid> <artifactid>tomcat-embed-jasper</artifactid> </dependency> </dependencies> <build> <plugins> <plugin> <groupid>org.springframework.boot</groupid> <artifactid>spring-boot-maven-plugin</artifactid> </plugin> </plugins> </build></project> |
三、springboot整合springmvc
因為在創建項目的時候我們選擇了mybatis和jdbc所以在這里也要把他們兩也給配置進去
編輯application.properties
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
|
# 頁面默認前綴目錄spring.mvc.view.prefix=/web-inf/jsp/# 響應頁面默認后綴spring.mvc.view.suffix=.jsp#開發配置spring.datasource.driverclassname = com.mysql.jdbc.driverspring.datasource.url = jdbc:mysql://localhost:3306/test?useunicode=true&characterencoding=utf-8spring.datasource.username = rootspring.datasource.password = 123456# mybatis接口文件位置mybatis.mapper-locations: classpath:mapper/*.xmlmybatis.type-aliases-package: com.chaoqi.springboot_demo2.domain |
如果大家習慣用application.yml那也可以用，但是用application.yml在第一次啟動項目的時候一定要maven clean一下，不然會報錯。
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
|
server: port: 8080spring: mvc: view: prefix: /web-inf/jsp/ suffix: .jsp datasource: url: jdbc:mysql://localhost:3306/test?characterencoding=utf-8&useunicode=true&usessl=false username: root password: 123456 driver-class-name: com.mysql.jdbc.drivermybatis: mapper-locations: classpath:mapping/*.xml type-aliases-package: com.chaoqi.springboot_demo2.domain |

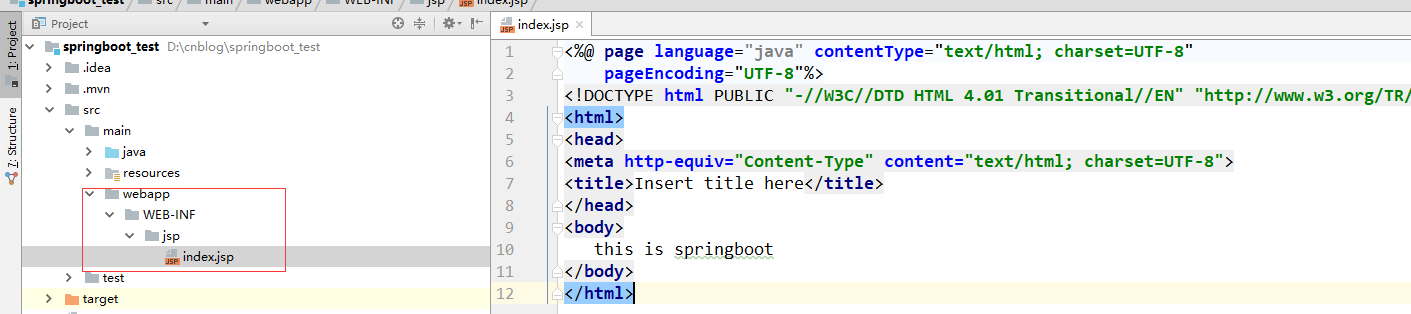

編輯完application.properties之后再src/mian下創建webapp目錄，結構如下
新建indexcontroller
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
|
package com.chaoqi.springboot_test.web;import org.springframework.stereotype.controller;import org.springframework.web.bind.annotation.requestmapping;@controllerpublic class indexcontroller { private static final string index = "index"; @requestmapping("/show") public string getindex() { return index; }} |

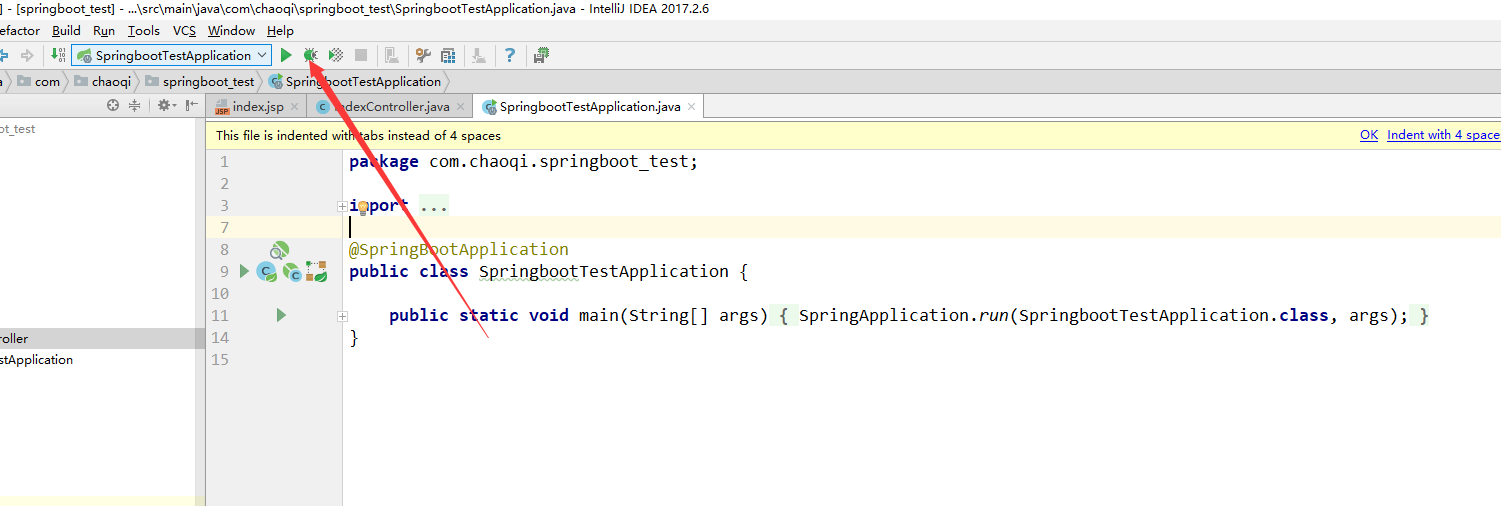

運行main函數
訪問頁面，成功
四、springboot整合mybatis
創建數據庫表
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
|
-- ------------------------------ table structure for music_info-- ----------------------------drop table if exists `music_info`;create table `music_info` ( `id` int(10) not null auto_increment comment '主鍵id', `singer_name` varchar(100) not null comment '歌手名', `music_size` varchar(100) not null comment '歌曲大小', `music_name` varchar(100) not null comment '歌曲名', primary key (`id`)) engine=innodb auto_increment=4 default charset=utf8;-- ------------------------------ records of music_info-- ----------------------------insert into `music_info` values ('1', '小三', '3.2m', '起風了');insert into `music_info` values ('2', '劉德華', '3.0m', '忘情水');insert into `music_info` values ('3', '豬點點', '5.0m', '會寫程序的小豬'); |
創建pojo
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
|
package com.chaoqi.springboot_test.dao.domain;public class musicinfo { // 主鍵id private integer id; // 歌手名 private string singername; // 歌曲大小 private string musicsize; // 歌曲名 private string musicname; /** * 獲取 主鍵id music_info.id * * @return 主鍵id */ public integer getid() { return id; } /** * 設置 主鍵id music_info.id * * @param id 主鍵id */ public void setid(integer id) { this.id = id; } /** * 獲取 歌手名 music_info.singer_name * * @return 歌手名 */ public string getsingername() { return singername; } /** * 設置 歌手名 music_info.singer_name * * @param singername 歌手名 */ public void setsingername(string singername) { this.singername = singername == null ? null : singername.trim(); } /** * 獲取 歌曲大小 music_info.music_size * * @return 歌曲大小 */ public string getmusicsize() { return musicsize; } /** * 設置 歌曲大小 music_info.music_size * * @param musicsize 歌曲大小 */ public void setmusicsize(string musicsize) { this.musicsize = musicsize == null ? null : musicsize.trim(); } /** * 獲取 歌曲名 music_info.music_name * * @return 歌曲名 */ public string getmusicname() { return musicname; } /** * 設置 歌曲名 music_info.music_name * * @param musicname 歌曲名 */ public void setmusicname(string musicname) { this.musicname = musicname == null ? null : musicname.trim(); } @override public string tostring() { return "musicinfo{" + "id=" + id + ", singername='" + singername + '\'' + ", musicsize='" + musicsize + '\'' + ", musicname='" + musicname + '\'' + '}'; }} |
創建mapper.xml
|
1
2
3
4
5
6
7
8
9
10
|
<?xml version="1.0" encoding="utf-8"?><!doctype mapper public "-//mybatis.org//dtd mapper 3.0//en" "http://mybatis.org/dtd/mybatis-3-mapper.dtd"><mapper namespace="com.chaoqi.springboot_test.dao.mapper.musicinfomapper"> <resultmap id="baseresultmap" type="com.chaoqi.springboot_test.dao.domain.musicinfo"> <id column="id" jdbctype="integer" property="id" /> <result column="singer_name" jdbctype="varchar" property="singername" /> <result column="music_size" jdbctype="varchar" property="musicsize" /> <result column="music_name" jdbctype="varchar" property="musicname" /> </resultmap></mapper> |
創建mapper
|
1
2
3
4
5
6
7
8
9
10
11
12
13
|
package com.chaoqi.springboot_test.dao.mapper;import com.chaoqi.springboot_test.dao.domain.musicinfo;import org.apache.ibatis.annotations.resultmap;import org.apache.ibatis.annotations.select;import java.util.list;public interface musicinfomapper { @resultmap("baseresultmap") @select("select * from music_info") list<musicinfo> selectall(musicinfo musicinfo);} |
service接口
|
1
2
3
4
5
6
7
8
|
package com.chaoqi.springboot_test.service;import com.chaoqi.springboot_test.dao.domain.musicinfo;import java.util.list;public interface musicinfoservice { public list<musicinfo> getmusicinfo(musicinfo musicinfo);} |
service實現類
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
|
package com.chaoqi.springboot_test.service.impl;import com.chaoqi.springboot_test.dao.domain.musicinfo;import com.chaoqi.springboot_test.dao.mapper.musicinfomapper;import com.chaoqi.springboot_test.service.musicinfoservice;import org.springframework.beans.factory.annotation.autowired;import org.springframework.stereotype.service;import java.util.list;@servicepublic class musicinfoserviceimpl implements musicinfoservice { @autowired private musicinfomapper musicinfomapper; @override public list<musicinfo> getmusicinfo(musicinfo musicinfo) { list<musicinfo> musicinfos = musicinfomapper.selectall(null); return musicinfos; }} |
創建完成后的結構如下
編輯indexcontroller
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
|
package com.chaoqi.springboot_test.web;import com.chaoqi.springboot_test.dao.domain.musicinfo;import com.chaoqi.springboot_test.service.musicinfoservice;import org.springframework.beans.factory.annotation.autowired;import org.springframework.stereotype.controller;import org.springframework.web.bind.annotation.requestmapping;import org.springframework.web.bind.annotation.responsebody;import java.util.list;@controllerpublic class indexcontroller { private static final string index = "index"; @autowired private musicinfoservice musicinfoservice; @requestmapping("/show") public string getindex() { return index; } @requestmapping("/music") @responsebody public list<musicinfo> getmusicinfo(musicinfo musicinfo) { list<musicinfo> musicinfolist = musicinfoservice.getmusicinfo(null); return musicinfolist; }} |
給springboottestapplication類加上注解@mapperscan("com.chaoqi.springboot_test.dao.mapper")
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
|
package com.chaoqi.springboot_test;import org.mybatis.spring.annotation.mapperscan;import org.springframework.boot.springapplication;import org.springframework.boot.autoconfigure.springbootapplication;import org.springframework.web.bind.annotation.requestmapping;import org.springframework.web.bind.annotation.restcontroller;@springbootapplication@mapperscan("com.chaoqi.springboot_test.dao.mapper")public class springboottestapplication { public static void main(string[] args) { springapplication.run(springboottestapplication.class, args); }} |

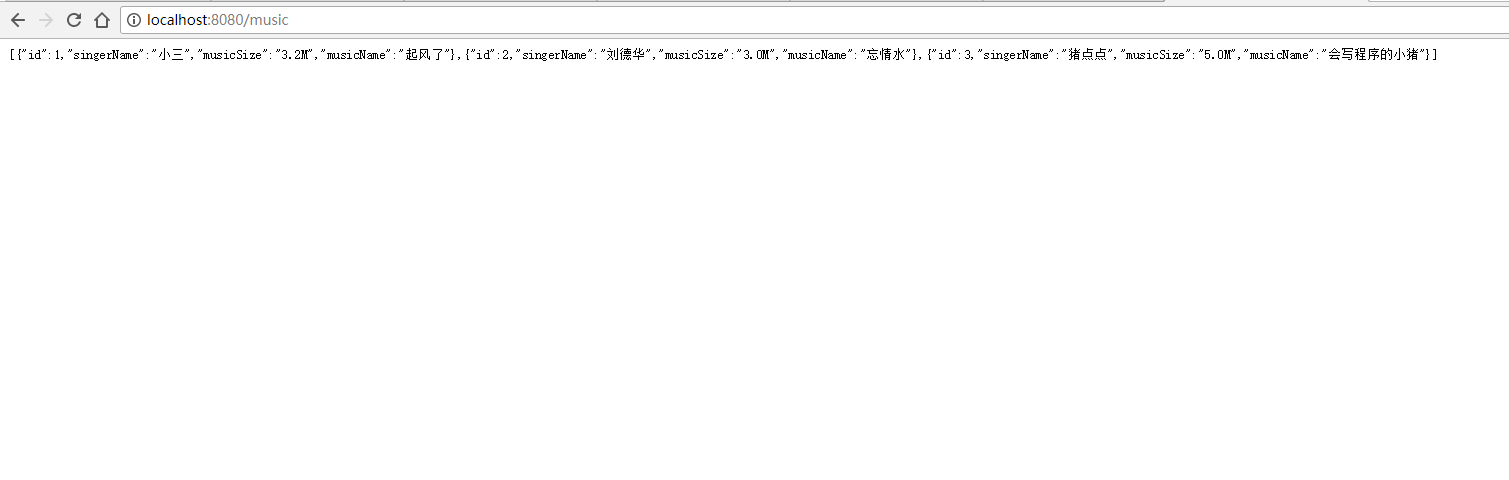

運行項目，成功，springboot+springmvc+mybatis整合完成（源碼下載地址）
以上就是本文的全部內容，希望對大家的學習有所幫助，也希望大家多多支持服務器之家。
