引入
rabbitmq 是一個由 erlang 語言開發的 amqp 的開源實現。
rabbitmq是一款基于amqp協議的消息中間件，它能夠在應用之間提供可靠的消息傳輸。在易用性，擴展性，高可用性上表現優秀。使用消息中間件利于應用之間的解耦，生產者（客戶端）無需知道消費者（服務端）的存在。而且兩端可以使用不同的語言編寫，大大提供了靈活性。
安裝
|
1
2
3
4
5
6
7
8
9
10
11
|
# 安裝配置epel源 rpm -ivh http://dl.fedoraproject.org/pub/epel/6/i386/epel-release-6-8.noarch.rpm # 安裝erlang yum -y install erlang # 安裝rabbitmq yum -y install rabbitmq-server# 啟動/停止 service rabbitmq-server start/stop |
rabbitmq工作模型
簡單模式
生產者
|
1
2
3
4
5
6
7
8
9
10
11
12
13
|
import pikaconnection = pika.blockingconnection(pika.connectionparameters( host='localhost'))channel = connection.channel()channel.queue_declare(queue='hello')channel.basic_publish(exchange='', routing_key='hello', body='hello world!')print(" [x] sent 'hello world!'")connection.close() |
消費者
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
|
connection = pika.blockingconnection(pika.connectionparameters(host='localhost'))channel = connection.channel() channel.queue_declare(queue='hello') def callback(ch, method, properties, body): print(" [x] received %r" % body) channel.basic_consume( callback, queue='hello', no_ack=true) print(' [*] waiting for messages. to exit press ctrl+c')channel.start_consuming() |
相關參數
1，no-ack ＝ false
如果消費者遇到情況(its channel is closed, connection is closed, or tcp connection is lost)掛掉了，那么，rabbitmq會重新將該任務添加到隊列中。
- 回調函數中的 ch.basic_ack(delivery_tag=method.delivery_tag)
- basic_comsume中的no_ack=false
接收消息端應該這么寫：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
|
import pikaconnection = pika.blockingconnection(pika.connectionparameters( host='10.211.55.4'))channel = connection.channel()channel.queue_declare(queue='hello')def callback(ch, method, properties, body): print(" [x] received %r" % body) import time time.sleep(10) print 'ok' ch.basic_ack(delivery_tag = method.delivery_tag)channel.basic_consume(callback, queue='hello', no_ack=false)print(' [*] waiting for messages. to exit press ctrl+c')channel.start_consuming() |
2，durable ：消息不丟失
生產者
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
|
import pikaconnection = pika.blockingconnection(pika.connectionparameters(host='10.211.55.4'))channel = connection.channel()# make message persistentchannel.queue_declare(queue='hello', durable=true)channel.basic_publish(exchange='', routing_key='hello', body='hello world!', properties=pika.basicproperties( delivery_mode=2, # make message persistent ))print(" [x] sent 'hello world!'")connection.close() |
3，消息獲取順序
默認消息隊列里的數據是按照順序被消費者拿走，例如：消費者1 去隊列中獲取 奇數 序列的任務，消費者1去隊列中獲取 偶數 序列的任務。
channel.basic_qos(prefetch_count=1) 表示誰來誰取，不再按照奇偶數排列
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
|
import pikaconnection = pika.blockingconnection(pika.connectionparameters(host='10.211.55.4'))channel = connection.channel()# make message persistentchannel.queue_declare(queue='hello')def callback(ch, method, properties, body): print(" [x] received %r" % body) import time time.sleep(10) print 'ok' ch.basic_ack(delivery_tag = method.delivery_tag)channel.basic_qos(prefetch_count=1)channel.basic_consume(callback, queue='hello', no_ack=false)print(' [*] waiting for messages. to exit press ctrl+c')channel.start_consuming() |
exchange模型
1，發布訂閱
發布訂閱和簡單的消息隊列區別在于，發布訂閱會將消息發送給所有的訂閱者，而消息隊列中的數據被消費一次便消失。所以，rabbitmq實現發布和訂閱時，會為每一個訂閱者創建一個隊列，而發布者發布消息時，會將消息放置在所有相關隊列中。
exchange type = fanout
生產者
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
|
import pikaimport sysconnection = pika.blockingconnection(pika.connectionparameters( host='localhost'))channel = connection.channel()channel.exchange_declare(exchange='logs', type='fanout')message = ' '.join(sys.argv[1:]) or "info: hello world!"channel.basic_publish(exchange='logs', routing_key='', body=message)print(" [x] sent %r" % message)connection.close() |
消費者
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
|
import pikaconnection = pika.blockingconnection(pika.connectionparameters( host='localhost'))channel = connection.channel()channel.exchange_declare(exchange='logs', type='fanout')result = channel.queue_declare(exclusive=true)queue_name = result.method.queuechannel.queue_bind(exchange='logs', queue=queue_name)print(' [*] waiting for logs. to exit press ctrl+c')def callback(ch, method, properties, body): print(" [x] %r" % body)channel.basic_consume(callback, queue=queue_name, no_ack=true)channel.start_consuming() |

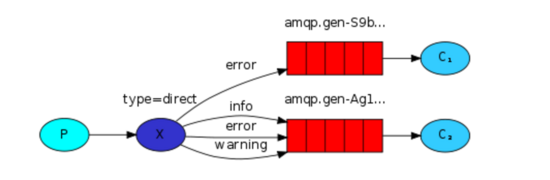

2，關鍵字發送
之前事例，發送消息時明確指定某個隊列并向其中發送消息，rabbitmq還支持根據關鍵字發送，即：隊列綁定關鍵字，發送者將數據根據關鍵字發送到消息exchange，exchange根據 關鍵字 判定應該將數據發送至指定隊列。
exchange type = direct
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
|
import pikaimport sysconnection = pika.blockingconnection(pika.connectionparameters( host='localhost'))channel = connection.channel()channel.exchange_declare(exchange='direct_logs', type='direct')result = channel.queue_declare(exclusive=true)queue_name = result.method.queueseverities = sys.argv[1:]if not severities: sys.stderr.write("usage: %s [info] [warning] [error]\n" % sys.argv[0]) sys.exit(1)for severity in severities: channel.queue_bind(exchange='direct_logs', queue=queue_name, routing_key=severity)print(' [*] waiting for logs. to exit press ctrl+c')def callback(ch, method, properties, body): print(" [x] %r:%r" % (method.routing_key, body))channel.basic_consume(callback, queue=queue_name, no_ack=true)channel.start_consuming() |
3，模糊匹配
exchange type = topic
發送者路由值 隊列中
old.boy.python old.* -- 不匹配
old.boy.python old.# -- 匹配
在topic類型下，可以讓隊列綁定幾個模糊的關鍵字，之后發送者將數據發送到exchange，exchange將傳入”路由值“和 ”關鍵字“進行匹配，匹配成功，則將數據發送到指定隊列。
- # 表示可以匹配 0 個 或 多個 單詞
- * 表示只能匹配 一個 單詞
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
|
import pikaimport sysconnection = pika.blockingconnection(pika.connectionparameters( host='localhost'))channel = connection.channel()channel.exchange_declare(exchange='topic_logs', type='topic')result = channel.queue_declare(exclusive=true)queue_name = result.method.queuebinding_keys = sys.argv[1:]if not binding_keys: sys.stderr.write("usage: %s [binding_key]...\n" % sys.argv[0]) sys.exit(1)for binding_key in binding_keys: channel.queue_bind(exchange='topic_logs', queue=queue_name, routing_key=binding_key)print(' [*] waiting for logs. to exit press ctrl+c')def callback(ch, method, properties, body): print(" [x] %r:%r" % (method.routing_key, body))channel.basic_consume(callback, queue=queue_name, no_ack=true)channel.start_consuming() |
基于rabbitmq的rpc
callback queue 回調隊列
一個客戶端向服務器發送請求，服務器端處理請求后，將其處理結果保存在一個存儲體中。而客戶端為了獲得處理結果，那么客戶在向服務器發送請求時，同時發送一個回調隊列地址 reply_to 。
correlation id 關聯標識
一個客戶端可能會發送多個請求給服務器，當服務器處理完后，客戶端無法辨別在回調隊列中的響應具體和那個請求時對應的。為了處理這種情況，客戶端在發送每個請求時，同時會附帶一個獨有 correlation_id 屬性，這樣客戶端在回調隊列中根據 correlation_id 字段的值就可以分辨此響應屬于哪個請求。
客戶端發送請求：
某個應用將請求信息交給客戶端，然后客戶端發送rpc請求，在發送rpc請求到rpc請求隊列時，客戶端至少發送帶有reply_to以及correlation_id兩個屬性的信息
服務端工作流：
等待接受客戶端發來rpc請求，當請求出現的時候，服務器從rpc請求隊列中取出請求，然后處理后，將響應發送到reply_to指定的回調隊列中
客戶端接受處理結果：
客戶端等待回調隊列中出現響應，當響應出現時，它會根據響應中correlation_id字段的值，將其返回給對應的應用
服務者
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
|
import pika# 建立連接，服務器地址為localhost，可指定ip地址connection = pika.blockingconnection(pika.connectionparameters( host='localhost'))# 建立會話channel = connection.channel()# 聲明rpc請求隊列channel.queue_declare(queue='rpc_queue')# 數據處理方法def fib(n): if n == 0: return 0 elif n == 1: return 1 else: return fib(n-1) + fib(n-2)# 對rpc請求隊列中的請求進行處理def on_request(ch, method, props, body): n = int(body) print(" [.] fib(%s)" % n) # 調用數據處理方法 response = fib(n) # 將處理結果(響應)發送到回調隊列 ch.basic_publish(exchange='', routing_key=props.reply_to, properties=pika.basicproperties(correlation_id = \ props.correlation_id), body=str(response)) ch.basic_ack(delivery_tag = method.delivery_tag)# 負載均衡，同一時刻發送給該服務器的請求不超過一個channel.basic_qos(prefetch_count=1)channel.basic_consume(on_request, queue='rpc_queue')print(" [x] awaiting rpc requests")channel.start_consuming() |
客戶端
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
|
import pikaimport uuidclass fibonaccirpcclient(object): def __init__(self): """ 客戶端啟動時，創建回調隊列，會開啟會話用于發送rpc請求以及接受響應 """ # 建立連接，指定服務器的ip地址 self.connection = pika.blockingconnection(pika.connectionparameters( host='localhost')) # 建立一個會話，每個channel代表一個會話任務 self.channel = self.connection.channel() # 聲明回調隊列，再次聲明的原因是，服務器和客戶端可能先后開啟，該聲明是冪等的，多次聲明，但只生效一次 result = self.channel.queue_declare(exclusive=true) # 將次隊列指定為當前客戶端的回調隊列 self.callback_queue = result.method.queue # 客戶端訂閱回調隊列，當回調隊列中有響應時，調用`on_response`方法對響應進行處理; self.channel.basic_consume(self.on_response, no_ack=true, queue=self.callback_queue) # 對回調隊列中的響應進行處理的函數 def on_response(self, ch, method, props, body): if self.corr_id == props.correlation_id: self.response = body # 發出rpc請求 def call(self, n): # 初始化 response self.response = none #生成correlation_id self.corr_id = str(uuid.uuid4()) # 發送rpc請求內容到rpc請求隊列`rpc_queue`，同時發送的還有`reply_to`和`correlation_id` self.channel.basic_publish(exchange='', routing_key='rpc_queue', properties=pika.basicproperties( reply_to = self.callback_queue, correlation_id = self.corr_id, ), body=str(n)) while self.response is none: self.connection.process_data_events() return int(self.response)# 建立客戶端fibonacci_rpc = fibonaccirpcclient()# 發送rpc請求print(" [x] requesting fib(30)")response = fibonacci_rpc.call(30)print(" [.] got %r" % response) |
以上就是本文的全部內容，希望對大家的學習有所幫助，也希望大家多多支持服務器之家。
