前言
其實很多人對分庫分表多少都有點恐懼，其實我也是，總覺得這玩意是運維干的、數據量上來了或者sql過于復雜、一些數據分片的中間件支持的也不是很友好、配置繁瑣等多種問題。
我們今天用ShardingSphere 給大家演示數據分片，包括分庫分表、只分表不分庫進行說明。
下一節有時間的話在講講讀寫分離吧。
github地址：https://github.com/362460453/boot-sharding-JDBC
ShardingSphere介紹
ShardingSphere是一套開源的分布式數據庫中間件解決方案組成的生態圈，它由Sharding-JDBC、Sharding-Proxy和Sharding-Sidecar（計劃中）這3款相互獨立的產品組成。 他們均提供標準化的數據分片、分布式事務和數據庫治理功能，可適用于如Java同構、異構語言、容器、云原生等各種多樣化的應用場景。
ShardingSphere的功能能幫助我們做什么
- 數據分片
- 讀寫分離
- 編排治理
- 分布式事務
2016年初Sharding-JDBC被開源，這個產品是當當?shù)模尤肓薃pache 后改名為 ShardingSphere 。他是我們應用和數據庫之間的中間層，雖代碼入侵性很強，但不會對現有業務邏輯進行改變。
更多文檔請點擊官網：https://shardingsphere.apache.org/document/current/en/overview/
為什么不用mycat
大家如果去查相關資料會知道，mycat和ShardingSphere是同類型的中間件，主要的功能，數據分片和讀寫分離兩個都能去做，但是姿勢卻有很大的差別， 從字面意義上看Sharding 含義是分片、碎片的意思，所以不難理解ShardingSphere 對數據分片有很強對能力，對于99%對sql都是支持的，官網也有sql支持的相關內容，大家詳細閱讀，只有 類似sum 這種函數不支持，而且對 ORM框架和常用數據庫基本都兼容，所以個人建議如果你們做數據分片，也就是是分庫分表對話，強烈建議選擇ShardingSphere，因為我私下也和一些朋友交流過，mycat 的數據分片對多表查詢不是很友好，而且用 mycat 要有很強的運維來做，還有一點就是mycat 都是靠xml配置的，沒有代碼入侵，所以這也算是他的優點吧。如果你們只做讀寫分離對話，那么我建議用mycat，是沒問題的。
實踐前的準備工作
啟動你的mysql，創建兩個數據庫，分別叫 sharding_master 和 sharding_salve分別在這兩個數據庫執行如下sql
CREATE TABLE IF NOT EXISTS `t_order_0` ( `order_id` INT NOT NULL, `user_id` INT NOT NULL, PRIMARY KEY (`order_id`) ); CREATE TABLE IF NOT EXISTS `t_order_1` ( `order_id` INT NOT NULL, `user_id` INT NOT NULL, PRIMARY KEY (`order_id`) );

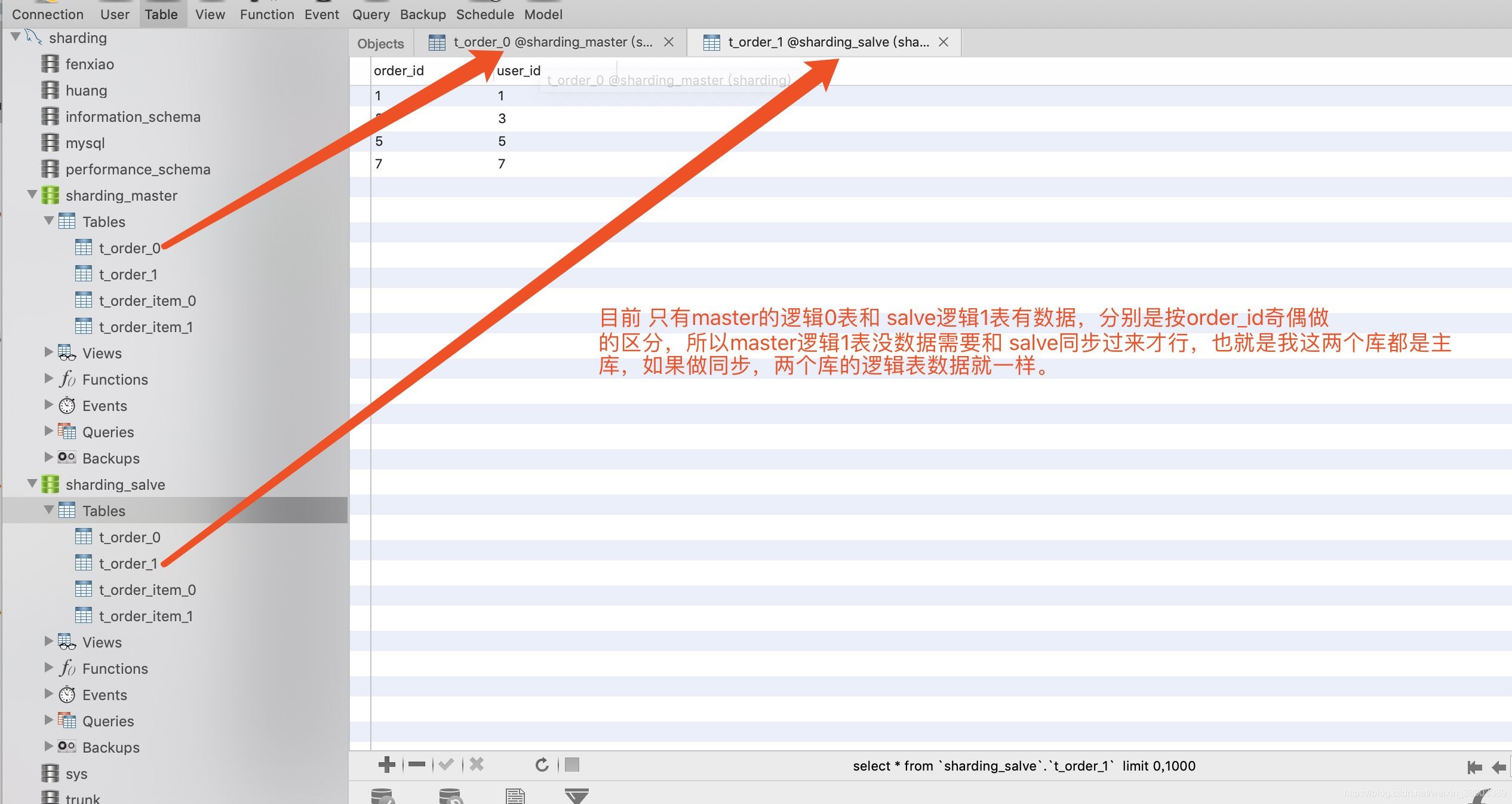

做完以上兩步結果如下
代碼案例
環境
| 工具 | 版本 |
| jdk |
1.8.0_144 |
| springboot | 2.0.4.RELEASE |
| sharding | 1.3.1 |
| mysql | 5.7 |
創建一個springboot工程，我們使用 JdbcTemplate 框架，如果用mybatis也是無影響的。
pom引用依賴如下
<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>2.0.4.RELEASE</version>
</parent>
<properties>
<java.version>1.8</java.version>
<druid.version>1.0.26</druid.version>
<sharding.jdbc.core.version>1.3.3</sharding.jdbc.core.version>
</properties>
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-jdbc</artifactId>
</dependency>
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
</dependency>
<dependency>
<groupId>com.dangdang</groupId>
<artifactId>sharding-jdbc-core</artifactId>
<version>${sharding.jdbc.core.version}</version>
</dependency>
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>druid</artifactId>
<version>${druid.version}</version>
</dependency>
</dependencies>
application.yml 配置如下
server:
port: 8050
sharding:
jdbc:
driverClassName: com.mysql.jdbc.Driver
url: jdbc:mysql://localhost:3306/sharding_master?useUnicode=true&characterEncoding=UTF-8&autoReconnect=true&failOverReadOnly=false
username: root
password: 123456
filters: stat
maxActive: 100
initialSize: 1
maxWait: 15000
minIdle: 1
timeBetweenEvictionRunsMillis: 30000
minEvictableIdleTimeMillis: 180000
validationQuery: SELECT "x"
testWhileIdle: true
testOnBorrow: false
testOnReturn: false
poolPreparedStatements: false
maxPoolPreparedStatementPerConnectionSize: 20
removeAbandoned: true
removeAbandonedTimeout: 600
logAbandoned: false
connectionInitSqls:
url0: jdbc:mysql://localhost:3306/sharding_master?useUnicode=true&characterEncoding=UTF-8&autoReconnect=true&failOverReadOnly=false
username0: root
password0: 123456
url1: jdbc:mysql://localhost:3306/sharding_salve?useUnicode=true&characterEncoding=UTF-8&autoReconnect=true&failOverReadOnly=false
username1: root
password1: 123456
yml映射成Bean
@Data
@ConfigurationProperties(prefix="sharding.jdbc")
public class ShardDataSourceProperties {
private String driverClassName;
private String url;
private String username;
private String password;
private String url0;
private String username0;
private String password0;
private String url1;
private String username1;
private String password1;
private String filters;
private int maxActive;
private int initialSize;
private int maxWait;
private int minIdle;
private int timeBetweenEvictionRunsMillis;
private int minEvictableIdleTimeMillis;
private String validationQuery;
private boolean testWhileIdle;
private boolean testOnBorrow;
private boolean testOnReturn;
private boolean poolPreparedStatements;
private int maxPoolPreparedStatementPerConnectionSize;
private boolean removeAbandoned;
private int removeAbandonedTimeout;
private boolean logAbandoned;
private List<String> connectionInitSqls;
//省略geter setter
分庫策略
//通過實現SingleKeyDatabaseShardingAlgorithm接口實現分庫
public class ModuloDatabaseShardingAlgorithm implements SingleKeyDatabaseShardingAlgorithm<Integer> {
@Override
public String doEqualSharding(Collection<String> availableTargetNames, ShardingValue<Integer> shardingValue) {
for (String each : availableTargetNames) {
if (each.endsWith(shardingValue.getValue() % 2 + "")) {
return each;
}
}
throw new IllegalArgumentException();
}
@Override
public Collection<String> doInSharding(Collection<String> availableTargetNames,
ShardingValue<Integer> shardingValue) {
Collection<String> result = new LinkedHashSet<>(availableTargetNames.size());
for (Integer value : shardingValue.getValues()) {
for (String targetName : availableTargetNames) {
if (targetName.endsWith(value % 2 + "")) {
result.add(targetName);
}
}
}
return result;
}
@Override
public Collection<String> doBetweenSharding(Collection<String> availableTargetNames,
ShardingValue<Integer> shardingValue) {
Collection<String> result = new LinkedHashSet<>(availableTargetNames.size());
Range<Integer> range = (Range<Integer>) shardingValue.getValueRange();
for (Integer i = range.lowerEndpoint(); i <= range.upperEndpoint(); i++) {
for (String each : availableTargetNames) {
if (each.endsWith(i % 2 + "")) {
result.add(each);
}
}
}
return result;
}
}
分表策略
public class ModuloTableShardingAlgorithm implements SingleKeyTableShardingAlgorithm<Integer> {
/**
* 對于分片字段的等值操作 都走這個方法。(包括 插入 更新)
* 如：
* <p>
* select * from t_order from t_order where order_id = 11
* └── SELECT * FROM t_order_1 WHERE order_id = 11
* select * from t_order from t_order where order_id = 44
* └── SELECT * FROM t_order_0 WHERE order_id = 44
* </P>
*/
@Override
public String doEqualSharding(final Collection<String> tableNames, final ShardingValue<Integer> shardingValue) {
for (String each : tableNames) {
if (each.endsWith(shardingValue.getValue() % 2 + "")) {
return each;
}
}
throw new IllegalArgumentException();
}
/**
* 對于分片字段的in操作，都走這個方法。
* select * from t_order from t_order where order_id in (11,44)
* ├── SELECT * FROM t_order_0 WHERE order_id IN (11,44)
* └── SELECT * FROM t_order_1 WHERE order_id IN (11,44)
* select * from t_order from t_order where order_id in (11,13,15)
* └── SELECT * FROM t_order_1 WHERE order_id IN (11,13,15)
* select * from t_order from t_order where order_id in (22,24,26)
* └──SELECT * FROM t_order_0 WHERE order_id IN (22,24,26)
*/
@Override
public Collection<String> doInSharding(final Collection<String> tableNames, final ShardingValue<Integer> shardingValue) {
Collection<String> result = new LinkedHashSet<>(tableNames.size());
for (Integer value : shardingValue.getValues()) {
for (String tableName : tableNames) {
if (tableName.endsWith(value % 2 + "")) {
result.add(tableName);
}
}
}
return result;
}
/**
* 對于分片字段的between操作都走這個方法。
* select * from t_order from t_order where order_id between 10 and 20
* ├── SELECT * FROM t_order_0 WHERE order_id BETWEEN 10 AND 20
* └── SELECT * FROM t_order_1 WHERE order_id BETWEEN 10 AND 20
*/
@Override
public Collection<String> doBetweenSharding(final Collection<String> tableNames, final ShardingValue<Integer> shardingValue) {
Collection<String> result = new LinkedHashSet<>(tableNames.size());
Range<Integer> range = (Range<Integer>) shardingValue.getValueRange();
for (Integer i = range.lowerEndpoint(); i <= range.upperEndpoint(); i++) {
for (String each : tableNames) {
if (each.endsWith(i % 2 + "")) {
result.add(each);
}
}
}
return result;
}
}
對特定表和庫，進行特定的分庫分表規則
簡單說，就是分庫按照了user_id的奇偶區分，分表按照order_id 的奇偶區分，
如果你有多個表進行分片，就寫多個TableRule，
配置兩個數據源，分別是我在yml里的配置，根據你的需求個性化配置就可以。
@Configuration
@EnableConfigurationProperties(ShardDataSourceProperties.class)
public class ShardDataSourceConfig {
@Autowired
private ShardDataSourceProperties shardDataSourceProperties;
private DruidDataSource parentDs() throws SQLException {
DruidDataSource ds = new DruidDataSource();
ds.setDriverClassName(shardDataSourceProperties.getDriverClassName());
ds.setUsername(shardDataSourceProperties.getUsername());
ds.setUrl(shardDataSourceProperties.getUrl());
ds.setPassword(shardDataSourceProperties.getPassword());
ds.setFilters(shardDataSourceProperties.getFilters());
ds.setMaxActive(shardDataSourceProperties.getMaxActive());
ds.setInitialSize(shardDataSourceProperties.getInitialSize());
ds.setMaxWait(shardDataSourceProperties.getMaxWait());
ds.setMinIdle(shardDataSourceProperties.getMinIdle());
ds.setTimeBetweenEvictionRunsMillis(shardDataSourceProperties.getTimeBetweenEvictionRunsMillis());
ds.setMinEvictableIdleTimeMillis(shardDataSourceProperties.getMinEvictableIdleTimeMillis());
ds.setValidationQuery(shardDataSourceProperties.getValidationQuery());
ds.setTestWhileIdle(shardDataSourceProperties.isTestWhileIdle());
ds.setTestOnBorrow(shardDataSourceProperties.isTestOnBorrow());
ds.setTestOnReturn(shardDataSourceProperties.isTestOnReturn());
ds.setPoolPreparedStatements(shardDataSourceProperties.isPoolPreparedStatements());
ds.setMaxPoolPreparedStatementPerConnectionSize(
shardDataSourceProperties.getMaxPoolPreparedStatementPerConnectionSize());
ds.setRemoveAbandoned(shardDataSourceProperties.isRemoveAbandoned());
ds.setRemoveAbandonedTimeout(shardDataSourceProperties.getRemoveAbandonedTimeout());
ds.setLogAbandoned(shardDataSourceProperties.isLogAbandoned());
ds.setConnectionInitSqls(shardDataSourceProperties.getConnectionInitSqls());
return ds;
}
private DataSource ds0() throws SQLException {
DruidDataSource ds = parentDs();
ds.setUsername(shardDataSourceProperties.getUsername0());
ds.setUrl(shardDataSourceProperties.getUrl0());
ds.setPassword(shardDataSourceProperties.getPassword0());
return ds;
}
private DataSource ds1() throws SQLException {
DruidDataSource ds = parentDs();
ds.setUsername(shardDataSourceProperties.getUsername1());
ds.setUrl(shardDataSourceProperties.getUrl1());
ds.setPassword(shardDataSourceProperties.getPassword1());
return ds;
}
private DataSourceRule dataSourceRule() throws SQLException {
Map<String, DataSource> dataSourceMap = new HashMap<>(2);
dataSourceMap.put("ds_0", ds0());
dataSourceMap.put("ds_1", ds1());
DataSourceRule dataSourceRule = new DataSourceRule(dataSourceMap);
return dataSourceRule;
}
//對order對策略
private TableRule orderTableRule() throws SQLException {
TableRule orderTableRule = TableRule.builder("t_order").actualTables(Arrays.asList("t_order_0", "t_order_1"))
.dataSourceRule(dataSourceRule()).build();
return orderTableRule;
}
//分庫分表策略
private ShardingRule shardingRule() throws SQLException {
ShardingRule shardingRule = ShardingRule.builder().dataSourceRule(dataSourceRule())
.tableRules(Arrays.asList(orderTableRule(), orderItemTableRule()))
.databaseShardingStrategy(
new DatabaseShardingStrategy("user_id", new ModuloDatabaseShardingAlgorithm()))
.tableShardingStrategy(new TableShardingStrategy("order_id", new ModuloTableShardingAlgorithm()))
.build();
return shardingRule;
}
@Bean
public DataSource dataSource() throws SQLException {
return ShardingDataSourceFactory.createDataSource(shardingRule());
}
@Bean
public PlatformTransactionManager transactionManager() throws SQLException {
return new DataSourceTransactionManager(dataSource());
}
}
我們需要從controller調用接口進行對數據的增加和查詢
下面所有的類都是用來模擬請求進行測試
@RestController
@RequestMapping("/order")
public class OrderController {
@Autowired
private OrderDao orderDao;
@RequestMapping(path = "/createOrder/{userId}/{orderId}", method = {RequestMethod.GET})
public String createOrder(@PathVariable("userId") Integer userId, @PathVariable("orderId") Integer orderId) {
Order order = new Order();
order.setOrderId(orderId);
order.setUserId(userId);
orderDao.createOrder(order);
return "success";
}
@RequestMapping(path = "/{userId}", method = {RequestMethod.GET})
public List<Order> getOrderListByUserId(@PathVariable("userId") Integer userId) {
return orderDao.getOrderListByUserId(userId);
}
}
---------------------------------------------------
public interface OrderDao {
List<Order> getOrderListByUserId(Integer userId);
void createOrder(Order order);
}
---------------------------------------------------
@Service
public class OrderDaoImpl implements OrderDao {
@Autowired
JdbcTemplate jdbcTemplate;
@Override
public List<Order> getOrderListByUserId(Integer userId) {
StringBuilder sqlBuilder = new StringBuilder();
sqlBuilder
.append("select order_id, user_id from t_order where user_id=? ");
return jdbcTemplate.query(sqlBuilder.toString(), new Object[]{userId},
new int[]{Types.INTEGER}, new BeanPropertyRowMapper<Order>(
Order.class));
}
@Override
public void createOrder(Order order) {
StringBuffer sb = new StringBuffer();
sb.append("insert into t_order(user_id, order_id)");
sb.append("values(");
sb.append(order.getUserId()).append(",");
sb.append(order.getOrderId());
sb.append(")");
jdbcTemplate.update(sb.toString());
}
}
---------------------------------------------------
public class Order implements Serializable {
private int userId;
private int orderId;
---------------------------------------------------
@SpringBootApplication
public class Application {
public static void main(String[] args) {
SpringApplication.run(Application.class, args);
}
}
測試
啟動項目，訪問：http://localhost:8050/order/createOrder/1/1
更換參數多次訪問，可以插入多條記錄，觀察你的數據庫入庫情況，已經按照我們制定的分庫分表策略進行劃分了。
需要注意的是
shareding是不支持jdbctemplate的批量修改操作的。
表名前不要加上庫名，原生的情況加庫名，不加庫名其實是一樣的，但使用shareding的表就會報錯。
如果想進行只分表不分庫的話
- 注釋掉 ModuloDatabaseShardingAlgorithm 類
- 還有ShardDataSourceConfig.shardingRule() 中的分庫策略那行代碼
- 還有相關數據源配置改成 1 個
到此這篇關于Java中ShardingSphere 數據分片的實現的文章就介紹到這了,更多相關ShardingSphere 數據分片內容請搜索服務器之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持服務器之家！
原文鏈接：https://blog.csdn.net/weixin_38003389/article/details/90518112
