前言
Activity是Android中一個很重要的概念，堪稱四大組件之首，關于Activity有很多內容，比如生命周期和啟動Flags，這二者想要說清楚，恐怕又要寫兩篇長文，更何況分析它們的源碼呢。不過本文的側重點不是它們，我要介紹的是一個Activity典型的啟動過程，本文會從源碼的角度對其進行分析。我們知道，當startActivity被調用的時候，可以啟動一個Activity，但是你知道這個Activity是如何被啟動的嗎？每個Activity也是一個對象，你知道這個對象是啥時候被創建的嗎（也就是說它的構造方法是什么時候被調用的）？為什么onCreate是Activity的執行入口？所有的這一切都被系統封裝好了，對我們來說是透明的，我們使用的時候僅僅是傳遞一個intent然后startActivity就可以達到目的了，不過，閱讀了本文以后，你將會了解它的背后到底做了哪些事情。在分析之前，我先介紹幾個類：
- Activity：這個大家都熟悉，startActivity方法的真正實現在Activity中
- Instrumentation：用來輔助Activity完成啟動Activity的過程
- ActivityThread（包含ApplicationThread + ApplicationThreadNative + IApplicationThread）：真正啟動Activity的實現都在這里
源碼分析
首先看入口
code：Activity#startActivity
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
|
@Overridepublic void startActivity(Intent intent) { startActivity(intent, null); } @Overridepublic void startActivity(Intent intent, Bundle options) { if (options != null) { startActivityForResult(intent, -1, options); } else { // Note we want to go through this call for compatibility with // applications that may have overridden the method. startActivityForResult(intent, -1); } } public void startActivityForResult(Intent intent, int requestCode) { startActivityForResult(intent, requestCode, null); } |
說明：顯然，從上往下，最終都是由startActivityForResult來實現的
接著看
code：Activity#startActivityForResult
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
|
public void startActivityForResult(Intent intent, int requestCode, Bundle options) { //一般的Activity其mParent為null，mParent常用在ActivityGroup中，ActivityGroup已廢棄 if (mParent == null) { //這里會啟動新的Activity，核心功能都在mMainThread.getApplicationThread()中完成 Instrumentation.ActivityResult ar = mInstrumentation.execStartActivity( this, mMainThread.getApplicationThread(), mToken, this, intent, requestCode, options); if (ar != null) { //發送結果，即onActivityResult會被調用 mMainThread.sendActivityResult( mToken, mEmbeddedID, requestCode, ar.getResultCode(), ar.getResultData()); } if (requestCode >= 0) { // If this start is requesting a result, we can avoid making // the activity visible until the result is received. Setting // this code during onCreate(Bundle savedInstanceState) or onResume() will keep the // activity hidden during this time, to avoid flickering. // This can only be done when a result is requested because // that guarantees we will get information back when the // activity is finished, no matter what happens to it. mStartedActivity = true; } final View decor = mWindow != null ? mWindow.peekDecorView() : null; if (decor != null) { decor.cancelPendingInputEvents(); } // TODO Consider clearing/flushing other event sources and events for child windows. } else { //在ActivityGroup內部的Activity調用startActivity的時候會走到這里，內部處理邏輯和上面是類似的 if (options != null) { mParent.startActivityFromChild(this, intent, requestCode, options); } else { // Note we want to go through this method for compatibility with // existing applications that may have overridden it. mParent.startActivityFromChild(this, intent, requestCode); } } } |
說明：上述代碼關鍵點都有注釋了，可以發現，真正打開activity的實現在Instrumentation的execStartActivity方法中，去看看
code：Instrumentation#execStartActivity
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
|
public ActivityResult execStartActivity( Context who, IBinder contextThread, IBinder token, Activity target, Intent intent, int requestCode, Bundle options) { //核心功能在這個whoThread中完成，其內部scheduleLaunchActivity方法用于完成activity的打開 IApplicationThread whoThread = (IApplicationThread) contextThread; if (mActivityMonitors != null) { synchronized (mSync) { //先查找一遍看是否存在這個activity final int N = mActivityMonitors.size(); for (int i=0; i<N; i++) { final ActivityMonitor am = mActivityMonitors.get(i); if (am.match(who, null, intent)) { //如果找到了就跳出循環 am.mHits++; //如果目標activity無法打開，直接return if (am.isBlocking()) { return requestCode >= 0 ? am.getResult() : null; } break; } } } } try { intent.migrateExtraStreamToClipData(); intent.prepareToLeaveProcess(); //這里才是真正打開activity的地方，核心功能在whoThread中完成。 int result = ActivityManagerNative.getDefault() .startActivity(whoThread, who.getBasePackageName(), intent, intent.resolveTypeIfNeeded(who.getContentResolver()), token, target != null ? target.mEmbeddedID : null, requestCode, 0, null, null, options); //這個方法是專門拋異常的，它會對結果進行檢查，如果無法打開activity， //則拋出諸如ActivityNotFoundException類似的各種異常 checkStartActivityResult(result, intent); } catch (RemoteException e) { } return null; } |
說明：我想再說一下這個方法checkStartActivityResult，它也專業拋異常的，看代碼，相信大家對下面的異常信息不陌生吧，就是它干的，其中最熟悉的非Unable to find explicit activity class莫屬了，如果你在xml中沒有注冊目標activity，此異常將會拋出。
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
|
/*package*/ static void checkStartActivityResult(int res, Object intent) { if (res >= ActivityManager.START_SUCCESS) { return; } switch (res) { case ActivityManager.START_INTENT_NOT_RESOLVED: case ActivityManager.START_CLASS_NOT_FOUND: if (intent instanceof Intent && ((Intent)intent).getComponent() != null) throw new ActivityNotFoundException( "Unable to find explicit activity class " + ((Intent)intent).getComponent().toShortString() + "; have you declared this activity in your AndroidManifest.xml?"); throw new ActivityNotFoundException( "No Activity found to handle " + intent); case ActivityManager.START_PERMISSION_DENIED: throw new SecurityException("Not allowed to start activity " + intent); case ActivityManager.START_FORWARD_AND_REQUEST_CONFLICT: throw new AndroidRuntimeException( "FORWARD_RESULT_FLAG used while also requesting a result"); case ActivityManager.START_NOT_ACTIVITY: throw new IllegalArgumentException( "PendingIntent is not an activity"); default: throw new AndroidRuntimeException("Unknown error code " + res + " when starting " + intent); } } |
接下來我們要去看看IApplicationThread，因?yàn)楹诵墓δ苡善鋬?nèi)部的scheduleLaunchActivity方法來完成，由于IApplicationThread是個接口，所以，我們需要找到它的實現類，我已經幫大家找到了，它就是ActivityThread中的內部類ApplicationThread，看下它的繼承關系：
private class ApplicationThread extends ApplicationThreadNative;
public abstract class ApplicationThreadNative extends Binder implements IApplicationThread;

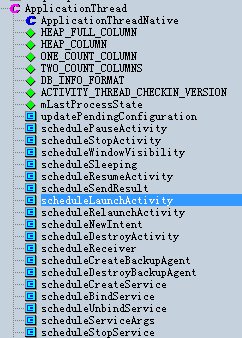

可以發現，ApplicationThread還是間接實現了IApplicationThread接口，先看下這個類的結構
看完ApplicationThread的大致結構，我們應該能夠猜測到，Activity的生命周期中的resume、newIntent、pause、stop等事件都是由它觸發的，事實上，的確是這樣的。這里，我們?yōu)榱苏f(shuō)明問題，僅僅看scheduleLaunchActivity方法
code：ApplicationThread#scheduleLaunchActivity
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
|
public final void scheduleLaunchActivity(Intent intent, IBinder token, int ident, ActivityInfo info, Configuration curConfig, CompatibilityInfo compatInfo, int procState, Bundle state, List<ResultInfo> pendingResults, List<Intent> pendingNewIntents, boolean notResumed, boolean isForward, String profileName, ParcelFileDescriptor profileFd, boolean autoStopProfiler) { updateProcessState(procState, false); ActivityClientRecord r = new ActivityClientRecord(); r.token = token; r.ident = ident; r.intent = intent; r.activityInfo = info; r.compatInfo = compatInfo; r.state = state; r.pendingResults = pendingResults; r.pendingIntents = pendingNewIntents; r.startsNotResumed = notResumed; r.isForward = isForward; r.profileFile = profileName; r.profileFd = profileFd; r.autoStopProfiler = autoStopProfiler; updatePendingConfiguration(curConfig); queueOrSendMessage(H.LAUNCH_ACTIVITY, r); } |
說明：上述代碼很好理解，構造一個activity記錄，然后發送一個消息，所以，我們要看看Handler是如何處理這個消息的，現在轉到這個Handler，它有個很短的名字叫做H
code：ActivityThread#H
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
|
//這個類太長，我只帖出了我們用到的部分 private class H extends Handler { public void handleMessage(Message msg) { if (DEBUG_MESSAGES) Slog.v(TAG, ">>> handling: " + codeToString(msg.what)); switch (msg.what) { //這里處理LAUNCH_ACTIVITY消息類型 case LAUNCH_ACTIVITY: { Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "activityStart"); ActivityClientRecord r = (ActivityClientRecord)msg.obj; r.packageInfo = getPackageInfoNoCheck( r.activityInfo.applicationInfo, r.compatInfo); //這里處理startActivity消息 handleLaunchActivity(r, null); Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER); } break; case RELAUNCH_ACTIVITY: { Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "activityRestart"); ActivityClientRecord r = (ActivityClientRecord)msg.obj; handleRelaunchActivity(r); Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER); } break; case PAUSE_ACTIVITY: Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "activityPause"); handlePauseActivity((IBinder)msg.obj, false, msg.arg1 != 0, msg.arg2); maybeSnapshot(); Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER); break; ... } } |
說明：看來還要看handleLaunchActivity
code：ActivityThread#handleLaunchActivity
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
|
private void handleLaunchActivity(ActivityClientRecord r, Intent customIntent) { // If we are getting ready to gc after going to the background, well // we are back active so skip it. unscheduleGcIdler(); if (r.profileFd != null) { mProfiler.setProfiler(r.profileFile, r.profileFd); mProfiler.startProfiling(); mProfiler.autoStopProfiler = r.autoStopProfiler; } // Make sure we are running with the most recent config. handleConfigurationChanged(null, null); if (localLOGV) Slog.v( TAG, "Handling launch of " + r); //終于到底了，大家都有點不耐煩了吧，從方法名可以看出， //performLaunchActivity真正完成了activity的調起, //同時activity會被實例化，并且onCreate會被調用 Activity a = performLaunchActivity(r, customIntent); if (a != null) { r.createdConfig = new Configuration(mConfiguration); Bundle oldState = r.state; //看到?jīng)]，目標activity的onResume會被調用 handleResumeActivity(r.token, false, r.isForward, !r.activity.mFinished && !r.startsNotResumed); if (!r.activity.mFinished && r.startsNotResumed) { // The activity manager actually wants this one to start out // paused, because it needs to be visible but isn't in the // foreground. We accomplish this by going through the // normal startup (because activities expect to go through // onResume() the first time they run, before their window // is displayed), and then pausing it. However, in this case // we do -not- need to do the full pause cycle (of freezing // and such) because the activity manager assumes it can just // retain the current state it has. try { r.activity.mCalled = false; //同時，由于新activity被調起了，原activity的onPause會被調用 mInstrumentation.callActivityOnPause(r.activity); // We need to keep around the original state, in case // we need to be created again. But we only do this // for pre-Honeycomb apps, which always save their state // when pausing, so we can not have them save their state // when restarting from a paused state. For HC and later, // we want to (and can) let the state be saved as the normal // part of stopping the activity. if (r.isPreHoneycomb()) { r.state = oldState; } if (!r.activity.mCalled) { throw new SuperNotCalledException( "Activity " + r.intent.getComponent().toShortString() + " did not call through to super.onPause()"); } } catch (SuperNotCalledException e) { throw e; } catch (Exception e) { if (!mInstrumentation.onException(r.activity, e)) { throw new RuntimeException( "Unable to pause activity " + r.intent.getComponent().toShortString() + ": " + e.toString(), e); } } r.paused = true; } } else { // If there was an error, for any reason, tell the activity // manager to stop us. try { ActivityManagerNative.getDefault() .finishActivity(r.token, Activity.RESULT_CANCELED, null); } catch (RemoteException ex) { // Ignore } } } |
說明：關于原activity和新activity之間的狀態同步，如果大家感興趣可以自己研究下，因?yàn)檫壿嬏珡?fù)雜，我沒法把所有問題都說清楚，否則就太深入細節而淹沒了整體邏輯，研究源碼要的就是清楚整體邏輯。下面看最后一個方法，這個方法是activity的啟動過程的真正實現。
code：ActivityThread#performLaunchActivity
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
|
private Activity performLaunchActivity(ActivityClientRecord r, Intent customIntent) { // System.out.println("##### [" + System.currentTimeMillis() + "] ActivityThread.performLaunchActivity(" + r + ")"); ActivityInfo aInfo = r.activityInfo; if (r.packageInfo == null) { r.packageInfo = getPackageInfo(aInfo.applicationInfo, r.compatInfo, Context.CONTEXT_INCLUDE_CODE); } //首先從intent中解析出目標activity的啟動參數 ComponentName component = r.intent.getComponent(); if (component == null) { component = r.intent.resolveActivity( mInitialApplication.getPackageManager()); r.intent.setComponent(component); } if (r.activityInfo.targetActivity != null) { component = new ComponentName(r.activityInfo.packageName, r.activityInfo.targetActivity); } Activity activity = null; try { java.lang.ClassLoader cl = r.packageInfo.getClassLoader(); //用ClassLoader（類加載器）將目標activity的類通過類名加載進來并調用newInstance來實例化一個對象 //其實就是通過Activity的無參構造方法來new一個對象，對象就是在這里new出來的。 activity = mInstrumentation.newActivity( cl, component.getClassName(), r.intent); StrictMode.incrementExpectedActivityCount(activity.getClass()); r.intent.setExtrasClassLoader(cl); if (r.state != null) { r.state.setClassLoader(cl); } } catch (Exception e) { if (!mInstrumentation.onException(activity, e)) { throw new RuntimeException( "Unable to instantiate activity " + component + ": " + e.toString(), e); } } try { Application app = r.packageInfo.makeApplication(false, mInstrumentation); if (localLOGV) Slog.v(TAG, "Performing launch of " + r); if (localLOGV) Slog.v( TAG, r + ": app=" + app + ", appName=" + app.getPackageName() + ", pkg=" + r.packageInfo.getPackageName() + ", comp=" + r.intent.getComponent().toShortString() + ", dir=" + r.packageInfo.getAppDir()); if (activity != null) { Context appContext = createBaseContextForActivity(r, activity); CharSequence id="codetool">
總結 相信當你看到這里的時候，你對Activity的啟動過程應該有了一個感性的認識。Activity很復雜，特性很多，本文沒法對各個細節進行深入分析，而且就算真的對各個細節都進行了深入分析，那文章要有多長啊，還有人有耐心看下去嗎？希望本文能夠給大家?guī)?lái)一些幫助，謝謝大家閱讀。 也希望大家多多支持服務器之家。 原文鏈接：https://blog.csdn.net/singwhatiwanna/article/details/18154335 延伸 · 閱讀
