一、概述
ExpandableListView是常用的一個控件，今天自己做了個小練習，主要需求是單選以及多選的實現，看似比較簡單，但是還是比較復雜，把代碼貼給大家，有這種需求的可以參考一下。

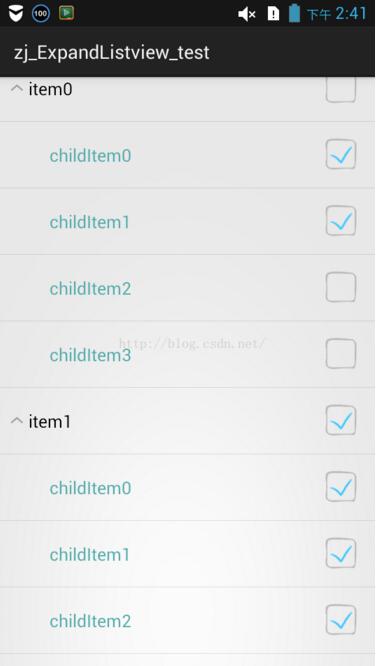

二、效果截圖
三、實現過程
activity_main.xml
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
|
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:tools="http://schemas.android.com/tools" android:layout_width="match_parent" android:layout_height="match_parent" android:orientation="vertical" tools:context=".MainActivity" > <ExpandableListView android:id="@+id/exlistview" android:layout_width="match_parent" android:layout_height="match_parent" android:listSelector="@android:color/transparent" > </ExpandableListView> </LinearLayout> |
group_item.xml
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
|
<?xml version="1.0" encoding="utf-8"?> <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android" android:layout_width="match_parent" android:layout_height="match_parent" android:descendantFocusability="blocksDescendants" android:padding="10dp" > <TextView android:id="@+id/id_group_text" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_centerVertical="true" android:layout_marginLeft="10dp" android:padding="10dp" android:text="hao" android:textColor="@android:color/black" android:textIsSelectable="true" android:textSize="15sp" > </TextView> <CheckBox android:id="@+id/id_group_checkbox" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_alignParentRight="true" android:layout_centerVertical="true" /> </RelativeLayout> |
listview_item.xml
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
|
<?xml version="1.0" encoding="utf-8"?> <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android" android:layout_width="match_parent" android:layout_height="match_parent" android:descendantFocusability="blocksDescendants" android:padding="10dp" > <TextView android:id="@+id/id_text" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_centerVertical="true" android:padding="10dp" android:layout_marginLeft="30dp" android:textColor="#55acac" android:textIsSelectable="true" android:textSize="15sp" > </TextView> <CheckBox android:id="@+id/id_checkbox" android:layout_width="wrap_content" android:layout_height="wrap_content" android:clickable="false" android:layout_alignParentRight="true" android:layout_centerVertical="true" /> </RelativeLayout> |
MainAcitivity.java
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
|
public class MainActivity extends Activity { private List<Map<String, String>> parentList = new ArrayList<Map<String, String>>(); private List<List<Map<String, String>>> childData = new ArrayList<List<Map<String, String>>>(); private ExpandableListView exListView; private Context context = this; private MyAdapter adapter; @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); initView(); initData(); setListener(); } /** * 記錄正在選中的子listview的item條目 用hashset是為了去除重復值 */ private HashSet<String> hashSet; private void setListener() { exListView.setOnGroupExpandListener(new OnGroupExpandListener() { @Override public void onGroupExpand(int groupPosition) { //存取已選定的集合 hashSet = new HashSet<String>(); } }); // ExpandableListView的Group的點擊事件 exListView.setOnGroupClickListener(new OnGroupClickListener() { @Override public boolean onGroupClick(ExpandableListView parent, View v, int groupPosition, long id) { // 可以寫點擊后實現的功能 return false; } }); // ExpandableListView的child的點擊事件 exListView.setOnChildClickListener(new OnChildClickListener() { @Override public boolean onChildClick(ExpandableListView parent, View v, int groupPosition, int childPosition, long id) { Map<String, String> map = childData.get(groupPosition).get( childPosition); String childChecked = map.get("isChecked"); if ("No".equals(childChecked)) { map.put("isChecked", "Yes"); hashSet.add("選定" + childPosition); } else { map.put("isChecked", "No"); if (hashSet.contains("選定" + childPosition)) { hashSet.remove("選定" + childPosition); } } System.out.println("選定的長度==1" + hashSet.size()); System.out.println("選定的長度==2" + childData.get(groupPosition).size()); if (hashSet.size() == childData.get(groupPosition).size()) { parentList.get(groupPosition).put("isGroupCheckd", "Yes"); } else { parentList.get(groupPosition).put("isGroupCheckd", "No"); } adapter.notifyDataSetChanged(); return false; } }); } // 初始化數據 private void initData() { for (int i = 0; i < 10; i++) { Map<String, String> groupMap = new HashMap<String, String>(); groupMap.put("groupText", "item" + i); groupMap.put("isGroupCheckd", "No"); parentList.add(groupMap); } for (int i = 0; i < 10; i++) { List<Map<String, String>> list = new ArrayList<Map<String, String>>(); for (int j = 0; j < 4; j++) { Map<String, String> map = new HashMap<String, String>(); map.put("childItem", "childItem" + j); map.put("isChecked", "No"); list.add(map); } childData.add(list); } adapter = new MyAdapter(); exListView.setAdapter(adapter); exListView.expandGroup(0); hashSet = new HashSet<String>(); } private void initView() { exListView = (ExpandableListView) findViewById(R.id.exlistview); } /** * 適配adapter */ private class MyAdapter extends BaseExpandableListAdapter { @Override public Object getChild(int groupPosition, int childPosition) { // TODO Auto-generated method stub return childData.get(groupPosition).get(childPosition); } @Override public long getChildId(int groupPosition, int childPosition) { // TODO Auto-generated method stub return childPosition; } @Override public View getChildView(int groupPosition, int childPosition, boolean isLastChild, View convertView, ViewGroup parent) { ViewHolder holder = null; if (convertView == null) { holder = new ViewHolder(); convertView = View.inflate(context, R.layout.listview_item, null); holder.childText = (TextView) convertView .findViewById(R.id.id_text); holder.childBox = (CheckBox) convertView .findViewById(R.id.id_checkbox); convertView.setTag(holder); } else { holder = (ViewHolder) convertView.getTag(); } holder.childText.setText(childData.get(groupPosition) .get(childPosition).get("childItem")); String isChecked = childData.get(groupPosition).get(childPosition) .get("isChecked"); if ("No".equals(isChecked)) { holder.childBox.setChecked(false); } else { holder.childBox.setChecked(true); } return convertView; } @Override public int getChildrenCount(int groupPosition) { // TODO Auto-generated method stub return childData.get(groupPosition).size(); } @Override public Object getGroup(int groupPosition) { return parentList.get(groupPosition); } @Override public int getGroupCount() { // TODO Auto-generated method stub return parentList.size(); } @Override public long getGroupId(int groupPosition) { // TODO Auto-generated method stub return groupPosition; } @Override public View getGroupView(final int groupPosition, final boolean isExpanded, View convertView, ViewGroup parent) { ViewHolder holder = null; if (convertView == null) { holder = new ViewHolder(); convertView = View.inflate(context, R.layout.group_item, null); holder.groupText = (TextView) convertView .findViewById(R.id.id_group_text); holder.groupBox = (CheckBox) convertView .findViewById(R.id.id_group_checkbox); convertView.setTag(holder); } else { holder = (ViewHolder) convertView.getTag(); } holder.groupText.setText(parentList.get(groupPosition).get( "groupText")); final String isGroupCheckd = parentList.get(groupPosition).get( "isGroupCheckd"); if ("No".equals(isGroupCheckd)) { holder.groupBox.setChecked(false); } else { holder.groupBox.setChecked(true); } /* * groupListView的點擊事件 */ holder.groupBox.setOnClickListener(new OnClickListener() { @Override public void onClick(View v) { CheckBox groupBox = (CheckBox) v .findViewById(R.id.id_group_checkbox); if (!isExpanded) { //展開某個group view exListView.expandGroup(groupPosition); } else { //關閉某個group view exListView.collapseGroup(groupPosition); } if ("No".equals(isGroupCheckd)) { exListView.expandGroup(groupPosition); groupBox.setChecked(true); parentList.get(groupPosition).put("isGroupCheckd", "Yes"); List<Map<String, String>> list = childData .get(groupPosition); for (Map<String, String> map : list) { map.put("isChecked", "Yes"); } } else { groupBox.setChecked(false); parentList.get(groupPosition) .put("isGroupCheckd", "No"); List<Map<String, String>> list = childData .get(groupPosition); for (Map<String, String> map : list) { map.put("isChecked", "No"); } } notifyDataSetChanged(); } }); return convertView; } @Override public boolean hasStableIds() { return true; } @Override public boolean isChildSelectable(int groupPosition, int childPosition) { return true; } } private class ViewHolder { TextView groupText, childText; CheckBox groupBox, childBox; } } |
四、總結及注意點
1、設置CheckBox的點擊事件，而非別的
2、exListView.collapseGroup(groupPosition); 關閉正展開的子ListView.
這是demo地址，歡迎下載：
以上就是本文的全部內容，希望對大家的學習有所幫助，也希望大家多多支持服務器之家。
