Hibernate與數據庫鎖
一、為什么要使用鎖？
要想弄清楚鎖機制存在的原因，首先要了解事務的概念。
事務是對數據庫一系列相關的操作，它必須具備ACID特征：
- A（原子性）：要么全部成功，要么全部撤銷。
- C（一致性）：要保持數據庫的一致性。
- I（隔離性）：不同事務操作相同數據時，要有各自的數據空間。
- D（持久性）：一旦事務成功結束，它對數據庫所做的更新必須永久保持。
我們常用的關系型數據庫RDBMS實現了事務的這些特性。其中，原子性、
一致性和持久性都是采用日志來保證的。而隔離性就是由今天我們關注的
鎖機制來實現的，這就是為什么我們需要鎖機制。
如果沒有鎖，對隔離性不加控制，可能會造成哪些后果呢？
- 更新丟失：事務1提交的數據被事務2覆蓋。
- 臟讀：事務2查詢到了事務1未提交的數據。
- 虛讀：事務2查詢到了事務1提交的新建數據。
- 不可重復讀：事務2查詢到了事務1提交的更新數據。
下面來看Hibernate的例子，兩個線程分別開啟兩個事務操作tb_account表中
的同一行數據col_id=1。
package com.cdai.orm.hibernate.annotation;
import java.io.Serializable;
import javax.persistence.Column;
import javax.persistence.Entity;
import javax.persistence.Id;
import javax.persistence.Table;
@Entity
@Table(name = "tb_account")
public class Account implements Serializable {
private static final long serialVersionUID = 5018821760412231859L;
@Id
@Column(name = "col_id")
private long id;
@Column(name = "col_balance")
private long balance;
public Account() {
}
public Account(long id, long balance) {
this.id = id;
this.balance = balance;
}
public long getId() {
return id;
}
public void setId(long id) {
this.id = id;
}
public long getBalance() {
return balance;
}
public void setBalance(long balance) {
this.balance = balance;
}
@Override
public String toString() {
return "Account [id=" + id + ", balance=" + balance + "]";
}
}
package com.cdai.orm.hibernate.transaction;
import org.hibernate.Session;
import org.hibernate.SessionFactory;
import org.hibernate.Transaction;
import org.hibernate.cfg.AnnotationConfiguration;
import com.cdai.orm.hibernate.annotation.Account;
public class DirtyRead {
public static void main(String[] args) {
final SessionFactory sessionFactory = new AnnotationConfiguration().
addFile("hibernate/hibernate.cfg.xml").
configure().
addPackage("com.cdai.orm.hibernate.annotation").
addAnnotatedClass(Account.class).
buildSessionFactory();
Thread t1 = new Thread() {
@Override
public void run() {
Session session1 = sessionFactory.openSession();
Transaction tx1 = null;
try {
tx1 = session1.beginTransaction();
System.out.println("T1 - Begin trasaction");
Thread.sleep(500);
Account account = (Account)
session1.get(Account.class, new Long(1));
System.out.println("T1 - balance=" + account.getBalance());
Thread.sleep(500);
account.setBalance(account.getBalance() + 100);
System.out.println("T1 - Change balance:" + account.getBalance());
tx1.commit();
System.out.println("T1 - Commit transaction");
Thread.sleep(500);
}
catch (Exception e) {
e.printStackTrace();
if (tx1 != null)
tx1.rollback();
}
finally {
session1.close();
}
}
};
// 3.Run transaction 2
Thread t2 = new Thread() {
@Override
public void run() {
Session session2 = sessionFactory.openSession();
Transaction tx2 = null;
try {
tx2 = session2.beginTransaction();
System.out.println("T2 - Begin trasaction");
Thread.sleep(500);
Account account = (Account)
session2.get(Account.class, new Long(1));
System.out.println("T2 - balance=" + account.getBalance());
Thread.sleep(500);
account.setBalance(account.getBalance() - 100);
System.out.println("T2 - Change balance:" + account.getBalance());
tx2.commit();
System.out.println("T2 - Commit transaction");
Thread.sleep(500);
}
catch (Exception e) {
e.printStackTrace();
if (tx2 != null)
tx2.rollback();
}
finally {
session2.close();
}
}
};
t1.start();
t2.start();
while (t1.isAlive() || t2.isAlive()) {
try {
Thread.sleep(2000L);
} catch (InterruptedException e) {
}
}
System.out.println("Both T1 and T2 are dead.");
sessionFactory.close();
}
}
事務1將col_balance減小100，而事務2將其減少100，最終結果可能是0，也
可能是200，事務1或2的更新可能會丟失。log輸出也印證了這一點，事務1和2
的log交叉打印。
T1 - Begin trasaction T2 - Begin trasaction Hibernate: select account0_.col_id as col1_0_0_, account0_.col_balance as col2_0_0_ from tb_account account0_ where account0_.col_id=? Hibernate: select account0_.col_id as col1_0_0_, account0_.col_balance as col2_0_0_ from tb_account account0_ where account0_.col_id=? T1 - balance=100 T2 - balance=100 T2 - Change balance:0 T1 - Change balance:200 Hibernate: update tb_account set col_balance=? where col_id=? Hibernate: update tb_account set col_balance=? where col_id=? T1 - Commit transaction T2 - Commit transaction Both T1 and T2 are dead.
由此可見，隔離性是一個需要慎重考慮的問題，理解鎖很有必要。
二、有多少種鎖？
常見的有共享鎖、更新鎖和獨占鎖。
1.共享鎖：用于讀數據操作，允許其他事務同時讀取。當事務執行select語句時，
數據庫自動為事務分配一把共享鎖來鎖定讀取的數據。
2.獨占鎖：用于修改數據，其他事務不能讀取也不能修改。當事務執行insert、
update和delete時，數據庫會自動分配。
3.更新鎖：用于避免更新操作時共享鎖造成的死鎖，比如事務1和2同時持有
共享鎖并等待獲得獨占鎖。當執行update時，事務先獲得更新鎖，然后將
更新鎖升級成獨占鎖，這樣就避免了死鎖。
此外，這些鎖都可以施加到數據庫中不同的對象上，即這些鎖可以有不同的粒度。
如數據庫級鎖、表級鎖、頁面級鎖、鍵級鎖和行級鎖。
所以鎖是有很多種的，這么多鎖要想完全掌握靈活使用太難了，我們又不是DBA。
怎么辦？還好，鎖機制對于我們一般用戶來說是透明的，數據庫會自動添加合適的
鎖，并在適當的時機自動升級、降級各種鎖，真是太周到了！我們只需要做的就是
學會根據不同的業務需求，設置好隔離級別就可以了。
三、怎樣設置隔離級別？
一般來說，數據庫系統會提供四種事務隔離級別供用戶選擇：
1.Serializable（串行化）：當兩個事務同時操縱相同數據時，事務2只能停下來等。
2.Repeatable Read（可重復讀）：事務1能看到事務2新插入的數據，不能看到對
已有數據的更新。
3.Read Commited（讀已提交數據）：事務1能看到事務2新插入和更新的數據。
4.Read Uncommited（讀未提交數據）：事務1能看到事務2沒有提交的插入和更新
數據。
四、應用程序中的鎖
當數據庫采用Read Commited隔離級別時，可以在應用程序中采用悲觀鎖或樂觀鎖。
1.悲觀鎖：假定當前事務操作的數據肯定還會有其他事務訪問，因此悲觀地在應用
程序中顯式指定采用獨占鎖來鎖定數據資源。在MySQL、Oracle中支持以下形式：
select ... for update
顯式地讓select采用獨占鎖鎖定查詢的記錄，其他事務要查詢、更新或刪除這些被
鎖定的數據，都要等到該事務結束后才行。
在Hibernate中，可以在load時傳入LockMode.UPGRADE來采用悲觀鎖。修改前面的例子，
在事務1和2的get方法調用處，多傳入一個LockMode參數。從log中可以看出，事務1和2
不再是交叉運行，事務2等待事務1結束后才可以讀取數據，所以最終col_balance值是正確
的100。
package com.cdai.orm.hibernate.transaction;
import org.hibernate.LockMode;
import org.hibernate.Session;
import org.hibernate.SessionFactory;
import org.hibernate.Transaction;
import com.cdai.orm.hibernate.annotation.Account;
import com.cdai.orm.hibernate.annotation.AnnotationHibernate;
public class UpgradeLock {
@SuppressWarnings("deprecation")
public static void main(String[] args) {
final SessionFactory sessionFactory = AnnotationHibernate.createSessionFactory();
// Run transaction 1
Thread t1 = new Thread() {
@Override
public void run() {
Session session1 = sessionFactory.openSession();
Transaction tx1 = null;
try {
tx1 = session1.beginTransaction();
System.out.println("T1 - Begin trasaction");
Thread.sleep(500);
Account account = (Account)
session1.get(Account.class, new Long(1), LockMode.UPGRADE);
System.out.println("T1 - balance=" + account.getBalance());
Thread.sleep(500);
account.setBalance(account.getBalance() + 100);
System.out.println("T1 - Change balance:" + account.getBalance());
tx1.commit();
System.out.println("T1 - Commit transaction");
Thread.sleep(500);
}
catch (Exception e) {
e.printStackTrace();
if (tx1 != null)
tx1.rollback();
}
finally {
session1.close();
}
}
};
// Run transaction 2
Thread t2 = new Thread() {
@Override
public void run() {
Session session2 = sessionFactory.openSession();
Transaction tx2 = null;
try {
tx2 = session2.beginTransaction();
System.out.println("T2 - Begin trasaction");
Thread.sleep(500);
Account account = (Account)
session2.get(Account.class, new Long(1), LockMode.UPGRADE);
System.out.println("T2 - balance=" + account.getBalance());
Thread.sleep(500);
account.setBalance(account.getBalance() - 100);
System.out.println("T2 - Change balance:" + account.getBalance());
tx2.commit();
System.out.println("T2 - Commit transaction");
Thread.sleep(500);
}
catch (Exception e) {
e.printStackTrace();
if (tx2 != null)
tx2.rollback();
}
finally {
session2.close();
}
}
};
t1.start();
t2.start();
while (t1.isAlive() || t2.isAlive()) {
try {
Thread.sleep(2000L);
} catch (InterruptedException e) {
}
}
System.out.println("Both T1 and T2 are dead.");
sessionFactory.close();
}
}
T1 - Begin trasaction T2 - Begin trasaction Hibernate: select account0_.col_id as col1_0_0_, account0_.col_balance as col2_0_0_ from tb_account account0_ with (updlock, rowlock) where account0_.col_id=? Hibernate: select account0_.col_id as col1_0_0_, account0_.col_balance as col2_0_0_ from tb_account account0_ with (updlock, rowlock) where account0_.col_id=? T2 - balance=100 T2 - Change balance:0 Hibernate: update tb_account set col_balance=? where col_id=? T2 - Commit transaction T1 - balance=0 T1 - Change balance:100 Hibernate: update tb_account set col_balance=? where col_id=? T1 - Commit transaction Both T1 and T2 are dead.
Hibernate對于SQLServer 2005會執行SQL：
復制代碼 代碼如下:
select account0_.col_id as col1_0_0_, account0_.col_balance as col2_0_0_ from tb_account account0_ with (updlock, rowlock) where account0_.col_id=?
為選定的col_id為1的數據行加上行鎖和更新鎖。
2.樂觀鎖：假定當前事務操作的數據不會有其他事務同時訪問，因此完全依靠數據庫
的隔離級別來自動管理鎖的工作。在應用程序中采用版本控制來避免可能低概率出現
的并發問題。

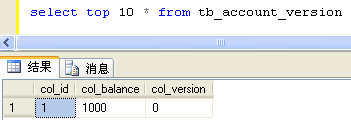

在Hibernate中，使用Version注解來定義版本號字段。
將DirtyLock中的Account對象替換成AccountVersion，其他代碼不變，執行出現異常。
package com.cdai.orm.hibernate.transaction;
import javax.persistence.Column;
import javax.persistence.Entity;
import javax.persistence.Id;
import javax.persistence.Table;
import javax.persistence.Version;
@Entity
@Table(name = "tb_account_version")
public class AccountVersion {
@Id
@Column(name = "col_id")
private long id;
@Column(name = "col_balance")
private long balance;
@Version
@Column(name = "col_version")
private int version;
public AccountVersion() {
}
public AccountVersion(long id, long balance) {
this.id = id;
this.balance = balance;
}
public long getId() {
return id;
}
public void setId(long id) {
this.id = id;
}
public long getBalance() {
return balance;
}
public void setBalance(long balance) {
this.balance = balance;
}
public int getVersion() {
return version;
}
public void setVersion(int version) {
this.version = version;
}
}
log如下：
T1 - Begin trasaction T2 - Begin trasaction Hibernate: select accountver0_.col_id as col1_0_0_, accountver0_.col_balance as col2_0_0_, accountver0_.col_version as col3_0_0_ from tb_account_version accountver0_ where accountver0_.col_id=? Hibernate: select accountver0_.col_id as col1_0_0_, accountver0_.col_balance as col2_0_0_, accountver0_.col_version as col3_0_0_ from tb_account_version accountver0_ where accountver0_.col_id=? T1 - balance=1000 T2 - balance=1000 T1 - Change balance:900 T2 - Change balance:1100 Hibernate: update tb_account_version set col_balance=?, col_version=? where col_id=? and col_version=? Hibernate: update tb_account_version set col_balance=?, col_version=? where col_id=? and col_version=? T1 - Commit transaction 2264 [Thread-2] ERROR org.hibernate.event.def.AbstractFlushingEventListener - Could not synchronize database state with session org.hibernate.StaleObjectStateException: Row was updated or deleted by another transaction (or unsaved-value mapping was incorrect): [com.cdai.orm.hibernate.transaction.AccountVersion#1] at org.hibernate.persister.entity.AbstractEntityPersister.check(AbstractEntityPersister.java:1934) at org.hibernate.persister.entity.AbstractEntityPersister.update(AbstractEntityPersister.java:2578) at org.hibernate.persister.entity.AbstractEntityPersister.updateOrInsert(AbstractEntityPersister.java:2478) at org.hibernate.persister.entity.AbstractEntityPersister.update(AbstractEntityPersister.java:2805) at org.hibernate.action.EntityUpdateAction.execute(EntityUpdateAction.java:114) at org.hibernate.engine.ActionQueue.execute(ActionQueue.java:268) at org.hibernate.engine.ActionQueue.executeActions(ActionQueue.java:260) at org.hibernate.engine.ActionQueue.executeActions(ActionQueue.java:180) at org.hibernate.event.def.AbstractFlushingEventListener.performExecutions(AbstractFlushingEventListener.java:321) at org.hibernate.event.def.DefaultFlushEventListener.onFlush(DefaultFlushEventListener.java:51) at org.hibernate.impl.SessionImpl.flush(SessionImpl.java:1206) at org.hibernate.impl.SessionImpl.managedFlush(SessionImpl.java:375) at org.hibernate.transaction.JDBCTransaction.commit(JDBCTransaction.java:137) at com.cdai.orm.hibernate.transaction.VersionLock$2.run(VersionLock.java:93) Both T1 and T2 are dead.

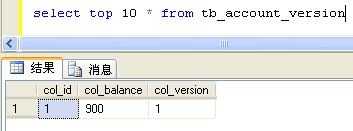

由于樂觀鎖完全將事務隔離交給數據庫來控制，所以事務1和2交叉運行了，事務1提交
成功并將col_version改為1，然而事務2提交時已經找不到col_version為0的數據了，所以
拋出了異常。
Hibernate查詢方法比較
Hibernate主要有三種查詢方法：
1.HQL (Hibernate Query Language)
和SQL很類似，支持分頁、連接、分組、聚集函數和子查詢等特性，
但HQL是面向對象的，而不是面向關系數據庫中的表。正因查詢語句
是面向Domain對象的，所以使用HQL可以獲得跨平臺的好處，Hibernate
會自動幫我們根據不同的數據庫翻譯成不同的SQL語句。這在需要支持
多種數據庫或者數據庫遷移的應用中是十分方便的。
但得到方便的同時，由于SQL語句是由Hibernate自動生成的，所以這不
利于SQL語句的效率優化和調試，當數據量很大時可能會有效率問題，
出了問題也不便于排查解決。
2.QBC/QBE (Query by Criteria/Example)
QBC/QBE是通過組裝查詢條件或者模板對象來執行查詢的。這在需要
靈活地支持許多查詢條件自由組合的應用中是比較方便的。同樣的問題
是由于查詢語句是自由組裝的，創建一條語句的代碼可能很長，并且
包含許多分支條件，很不便于優化和調試。
3.SQL
Hibernate也支持直接執行SQL的查詢方式。這種方式犧牲了Hibernate跨
數據庫的優點，手工地編寫底層SQL語句，從而獲得最好的執行效率，
相對前兩種方法，優化和調試方便了一些。
下面來看一組簡單的例子。
package com.cdai.orm.hibernate.query;
import java.util.Arrays;
import java.util.List;
import org.hibernate.Criteria;
import org.hibernate.Query;
import org.hibernate.Session;
import org.hibernate.SessionFactory;
import org.hibernate.cfg.AnnotationConfiguration;
import org.hibernate.criterion.Criterion;
import org.hibernate.criterion.Example;
import org.hibernate.criterion.Expression;
import com.cdai.orm.hibernate.annotation.Account;
public class BasicQuery {
public static void main(String[] args) {
SessionFactory sessionFactory = new AnnotationConfiguration().
addFile("hibernate/hibernate.cfg.xml").
configure().
addPackage("com.cdai.orm.hibernate.annotation").
addAnnotatedClass(Account.class).
buildSessionFactory();
Session session = sessionFactory.openSession();
// 1.HQL
Query query = session.createQuery("from Account as a where a.id=:id");
query.setLong("id", 1);
List result = query.list();
for (Object row : result) {
System.out.println(row);
}
// 2.QBC
Criteria criteria = session.createCriteria(Account.class);
criteria.add(Expression.eq("id", new Long(2)));
result = criteria.list();
for (Object row : result) {
System.out.println(row);
}
// 3.QBE
Account example= new Account();
example.setBalance(100);
result = session.createCriteria(Account.class).
add(Example.create(example)).
list();
for (Object row : result) {
System.out.println(row);
}
// 4.SQL
query = session.createSQLQuery(
" select top 10 * from tb_account order by col_id desc ");
result = query.list();
for (Object row : result) {
System.out.println(Arrays.toString((Object[]) row));
}
session.close();
}
}
Hibernate: select account0_.col_id as col1_0_, account0_.col_balance as col2_0_ from tb_account account0_ where account0_.col_id=? Account [id=1, balance=100] Hibernate: select this_.col_id as col1_0_0_, this_.col_balance as col2_0_0_ from tb_account this_ where this_.col_id=? Account [id=2, balance=100] Hibernate: select this_.col_id as col1_0_0_, this_.col_balance as col2_0_0_ from tb_account this_ where (this_.col_balance=?) Account [id=1, balance=100] Account [id=2, balance=100] Hibernate: select top 10 * from tb_account order by col_id desc [2, 100] [1, 100]
從log中可以清楚的看到Hibernate對于生成的SQL語句的控制，具體選擇
哪種查詢方式就要看具體應用了。
