直接上代碼：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
|
fig_acc2= np.zeros([n_epoch])for epoch in range(n_epoch): start_time = time.time() #training train_loss, train_acc, n_batch = 0, 0, 0 for x_train_a, y_train_a in minibatches(x_train, y_train, batch_size, shuffle=True): _,err,ac=sess.run([train_op,loss,acc], feed_dict={x: x_train_a, y_: y_train_a}) train_loss += err; train_acc += ac; n_batch += 1 summary_str = sess.run(merged_summary_op,feed_dict={x: x_train_a, y_: y_train_a}) summary_writer.add_summary(summary_str, epoch) print(" train loss: %f" % (np.sum(train_loss)/ n_batch)) print(" train acc: %f" % (np.sum(train_acc)/ n_batch)) fig_loss[epoch] = np.sum(train_loss)/ n_batch fig_acc1[epoch] = np.sum(train_acc) / n_batch #validation val_loss, val_acc, n_batch = 0, 0, 0 for x_val_a, y_val_a in minibatches(x_val, y_val, batch_size, shuffle=False): err, ac = sess.run([loss,acc], feed_dict={x: x_val_a, y_: y_val_a}) val_loss += err; val_acc += ac; n_batch += 1 print(" validation loss: %f" % (np.sum(val_loss)/ n_batch)) print(" validation acc: %f" % (np.sum(val_acc)/ n_batch)) fig_acc2[epoch] = np.sum(val_acc) / n_batch# 訓練loss圖fig, ax1 = plt.subplots()lns1 = ax1.plot(np.arange(n_epoch), fig_loss, label="Loss")ax1.set_xlabel('iteration')ax1.set_ylabel('training loss')# 訓練和驗證兩種準確率曲線圖放在一張圖中fig2, ax2 = plt.subplots()ax3 = ax2.twinx()#由ax2圖生成ax3圖lns2 = ax2.plot(np.arange(n_epoch), fig_acc1, label="Loss")lns3 = ax3.plot(np.arange(n_epoch), fig_acc2, label="Loss")ax2.set_xlabel('iteration')ax2.set_ylabel('training acc')ax3.set_ylabel('val acc') # 合并圖例lns = lns3 + lns2labels = ["train acc", "val acc"]plt.legend(lns, labels, loc=7)plt.show() |

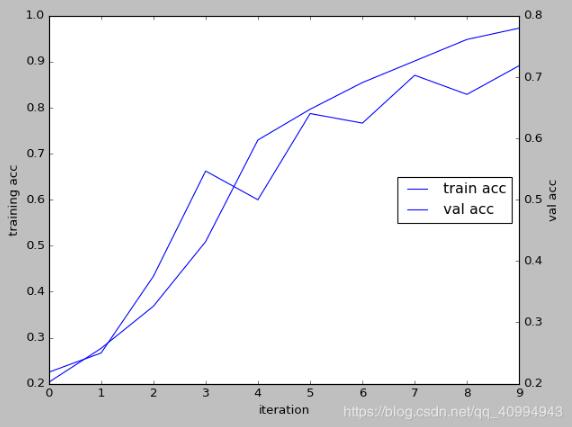

結果：
補充知識：tensorflow2.x實時繪制訓練時的損失和準確率
我就廢話不多說了，大家還是直接看代碼吧！
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
|
sgd = SGD(lr=float(model_value[3]), decay=1e-6, momentum=0.9, nesterov=True)model.compile(loss='categorical_crossentropy', optimizer=sgd, metrics=['accuracy'])# validation_split：0~1之間的浮點數，用來指定訓練集的一定比例數據作為驗證集history=model.fit(self.x_train, self.y_train, batch_size=self.batch_size, epochs=self.epoch_size, class_weight = 'auto', validation_split=0.1)# 繪制訓練 & 驗證的準確率值plt.plot(history.history['accuracy'])plt.plot(history.history['val_accuracy'])plt.title('Model accuracy')plt.ylabel('Accuracy')plt.xlabel('Epoch')plt.legend(['Train', 'Test'], loc='upper left')plt.show() # 繪制訓練 & 驗證的損失值plt.plot(history.history['loss'])plt.plot(history.history['val_loss'])plt.title('Model loss')plt.ylabel('Loss')plt.xlabel('Epoch')plt.legend(['Train', 'Test'], loc='upper left')plt.show()print("savemodel---------------")model.save(os.path.join(model_value[0],'model3_3.h5'))#輸出損失和精確度score = model.evaluate(self.x_test, self.y_test, batch_size=self.batch_size) |
以上這篇在tensorflow下利用plt畫論文中l(wèi)oss,acc等曲線圖實例就是小編分享給大家的全部?jī)?nèi)容了，希望能給大家一個參考，也希望大家多多支持服務器之家。
原文鏈接：https://blog.csdn.net/qq_40994943/article/details/86651941
