java 過濾器模式(Filter/Criteria Pattern)
過濾器模式（Filter Pattern）或標準模式（Criteria Pattern）是一種設計模式，這種模式允許開發人員使用不同的標準來過濾一組對象，通過邏輯運算以解耦的方式把它們連接起來。這種類型的設計模式屬于結構型模式，它結合多個標準來獲得單一標準。
過濾器模式（Filter Pattern）或標準模式（Criteria Pattern）是一種設計模式，這種模式允許開發人員使用不同的標準來過濾一組對象，通過邏輯運算以解耦的方式把它們連接起來。這種類型的設計模式屬于結構型模式，它結合多個標準來獲得單一標準。
實現

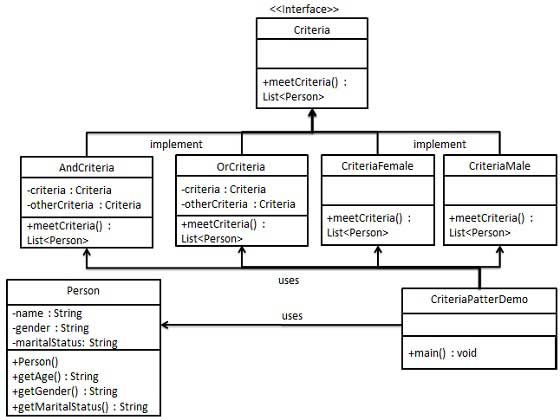

我們將創建一個 Person 對象、Criteria 接口和實現了該接口的實體類，來過濾 Person 對象的列表。CriteriaPatternDemo，我們的演示類使用 Criteria 對象，基于各種標準和它們的結合來過濾 Person 對象的列表。
步驟 1
創建一個類，在該類上應用標準。
Person.java
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
|
public class Person { private String name; private String gender; private String maritalStatus; public Person(String name,String gender,String maritalStatus){ this.name = name; this.gender = gender; this.maritalStatus = maritalStatus; } public String getName() { return name; } public String getGender() { return gender; } public String getMaritalStatus() { return maritalStatus; } } |
步驟 2
為標準（Criteria）創建一個接口。
Criteria.java
|
1
2
3
4
5
6
|
import java.util.List; public interface Criteria { public List<Person> meetCriteria(List<Person> persons);} |
步驟 3
創建實現了 Criteria 接口的實體類。
CriteriaMale.java
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
|
import java.util.ArrayList;import java.util.List; public class CriteriaMale implements Criteria { @Override public List<Person> meetCriteria(List<Person> persons) { List<Person> malePersons = new ArrayList<Person>(); for (Person person : persons) { if(person.getGender().equalsIgnoreCase("MALE")){ malePersons.add(person); } } return malePersons; }} |
CriteriaFemale.java
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
|
import java.util.ArrayList;import java.util.List; public class CriteriaFemale implements Criteria { @Override public List<Person> meetCriteria(List<Person> persons) { List<Person> femalePersons = new ArrayList<Person>(); for (Person person : persons) { if(person.getGender().equalsIgnoreCase("FEMALE")){ femalePersons.add(person); } } return femalePersons; }} |
CriteriaSingle.java
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
|
import java.util.ArrayList;import java.util.List; public class CriteriaSingle implements Criteria { @Override public List<Person> meetCriteria(List<Person> persons) { List<Person> singlePersons = new ArrayList<Person>(); for (Person person : persons) { if(person.getMaritalStatus().equalsIgnoreCase("SINGLE")){ singlePersons.add(person); } } return singlePersons; }} |
AndCriteria.java
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
|
import java.util.List; public class AndCriteria implements Criteria { private Criteria criteria; private Criteria otherCriteria; public AndCriteria(Criteria criteria, Criteria otherCriteria) { this.criteria = criteria; this.otherCriteria = otherCriteria; } @Override public List<Person> meetCriteria(List<Person> persons) { List<Person> firstCriteriaPersons = criteria.meetCriteria(persons); return otherCriteria.meetCriteria(firstCriteriaPersons); }} |
OrCriteria.java
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
|
import java.util.List; public class OrCriteria implements Criteria { private Criteria criteria; private Criteria otherCriteria; public OrCriteria(Criteria criteria, Criteria otherCriteria) { this.criteria = criteria; this.otherCriteria = otherCriteria; } @Override public List<Person> meetCriteria(List<Person> persons) { List<Person> firstCriteriaItems = criteria.meetCriteria(persons); List<Person> otherCriteriaItems = otherCriteria.meetCriteria(persons); for (Person person : otherCriteriaItems) { if(!firstCriteriaItems.contains(person)){ firstCriteriaItems.add(person); } } return firstCriteriaItems; }} |
步驟4
使用不同的標準（Criteria）和它們的結合來過濾 Person 對象的列表。
CriteriaPatternDemo.java
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
|
public class CriteriaPatternDemo { public static void main(String[] args) { List<Person> persons = new ArrayList<Person>(); persons.add(new Person("Robert","Male", "Single")); persons.add(new Person("John","Male", "Married")); persons.add(new Person("Laura","Female", "Married")); persons.add(new Person("Diana","Female", "Single")); persons.add(new Person("Mike","Male", "Single")); persons.add(new Person("Bobby","Male", "Single")); Criteria male = new CriteriaMale(); Criteria female = new CriteriaFemale(); Criteria single = new CriteriaSingle(); Criteria singleMale = new AndCriteria(single, male); Criteria singleOrFemale = new OrCriteria(single, female); System.out.println("Males: "); printPersons(male.meetCriteria(persons)); System.out.println("\nFemales: "); printPersons(female.meetCriteria(persons)); System.out.println("\nSingle Males: "); printPersons(singleMale.meetCriteria(persons)); System.out.println("\nSingle Or Females: "); printPersons(singleOrFemale.meetCriteria(persons)); } public static void printPersons(List<Person> persons){ for (Person person : persons) { System.out.println("Person : [ Name : " + person.getName() +", Gender : " + person.getGender() +", Marital Status : " + person.getMaritalStatus() +" ]"); } } } |
步驟 5
驗證輸出。
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
|
Males: Person : [ Name : Robert, Gender : Male, Marital Status : Single ]Person : [ Name : John, Gender : Male, Marital Status : Married ]Person : [ Name : Mike, Gender : Male, Marital Status : Single ]Person : [ Name : Bobby, Gender : Male, Marital Status : Single ]Females: Person : [ Name : Laura, Gender : Female, Marital Status : Married ]Person : [ Name : Diana, Gender : Female, Marital Status : Single ]Single Males: Person : [ Name : Robert, Gender : Male, Marital Status : Single ]Person : [ Name : Mike, Gender : Male, Marital Status : Single ]Person : [ Name : Bobby, Gender : Male, Marital Status : Single ]Single Or Females: Person : [ Name : Robert, Gender : Male, Marital Status : Single ]Person : [ Name : Diana, Gender : Female, Marital Status : Single ]Person : [ Name : Mike, Gender : Male, Marital Status : Single ]Person : [ Name : Bobby, Gender : Male, Marital Status : Single ]Person : [ Name : Laura, Gender : Female, Marital Status : Married ] |
