本文實例講述了Python使用matplotlib實現在坐標系中畫一個矩形的方法。分享給大家供大家參考。具體實現方法如下：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
|
import matplotlib.pyplot as pltfrom matplotlib.patches import Rectangleclass Annotate(object): def __init__(self): self.ax = plt.gca() self.rect = Rectangle((0,0), 1, 1) self.x0 = None self.y0 = None self.x1 = None self.y1 = None self.ax.add_patch(self.rect) self.ax.figure.canvas.mpl_connect('button_press_event', self.on_press) self.ax.figure.canvas.mpl_connect('button_release_event', self.on_release) def on_press(self, event): print 'press' self.x0 = event.xdata self.y0 = event.ydata def on_release(self, event): print 'release' self.x1 = event.xdata self.y1 = event.ydata self.rect.set_width(self.x1 - self.x0) self.rect.set_height(self.y1 - self.y0) self.rect.set_xy((self.x0, self.y0)) self.ax.figure.canvas.draw()a = Annotate()plt.show() |

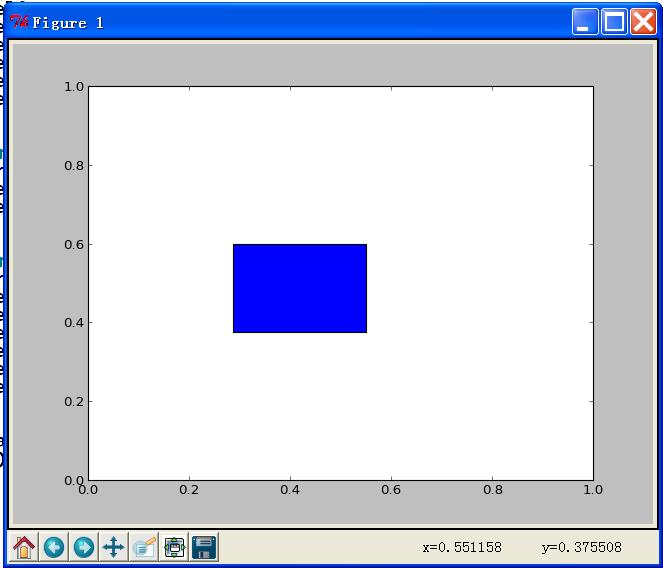

如下圖所示：
希望本文所述對大家的Python程序設計有所幫助。
