目前主流的Web MVC框架，除了Struts這個主力 外，還有Spring MVC，主要是由于Spring MVC配置比較簡單，使用起來也十分明了，非常靈活，與Spring 集成較好，對RESTful API的支持也比struts要好。
MyBatis是ibatis的升級版，作為hibernate的老對手，它 是一個可以自定義SQL、存儲過程和高級映射的持久層框架。
與hibernate的主要區別就是mybatis是半自動化的，而hibernate是全自動的，所以當應用需求越來越復雜的時候，自動化的sql顯得比較笨拙。

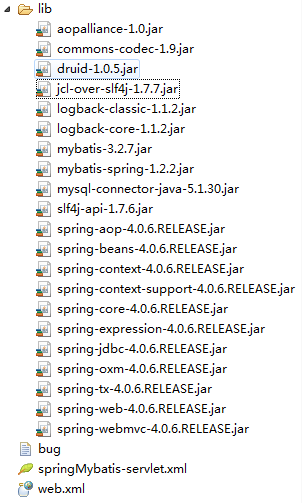

由于前段時間接了個項目要用springmvc做，所以我抱著練手的態度，又玩起了整合框架的游戲。經常搭框架的人應該都清楚，框架搭建的核心就是配置文件。所以我主要貼下幾個配置文件的代碼。還是那句話，我都是寫好配置文件之后，運行報錯再加jar。這里列一下我用的jar包（應該是最少的）：
備注：上圖有一些額外的jar，比如我用的數據庫連接池是阿里巴巴的druid、日志框架式logback，所以引入了相關jar。關于這兩個框架的使用和配置都是非常簡單的，所以這里就不細說。
1.整合SpringMVC
springMybatis-servlet.xml：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
|
<?xml version="1.0" encoding="UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context" xmlns:mvc="http://www.springframework.org/schema/mvc" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc.xsd"> <!-- 啟用spring mvc 注解--> <mvc:annotation-driven> </mvc:annotation-driven> <!-- 自動掃描的包名 ，使Spring支持自動檢測組件，如注解的Controller--> <context:component-scan base-package="com.alibaba.controller" /> <context:component-scan base-package="com.alibaba.service"/> <!-- 視圖解析器:定義跳轉的文件的前后綴 --> <bean id="viewResolver" class="org.springframework.web.servlet.view.InternalResourceViewResolver"> <property name="prefix" value="/WEB-INF/jsp/" /> <property name="suffix" value=".jsp" /> <!--可為空,方便實現自已的依據擴展名來選擇視圖解釋類的邏輯 --> </bean> <!--配置攔截器, 多個攔截器,順序執行 --> <mvc:interceptors> <mvc:interceptor> <!-- 匹配的是url路徑 --> <mvc:mapping path="/" /> <mvc:mapping path="/user/**" /> <mvc:mapping path="/test/**" /> <bean class="com.alibaba.interceptor.CommonInterceptor"></bean> </mvc:interceptor> <!-- 當設置多個攔截器時，先按順序調用preHandle方法，然后逆序調用每個攔截器的postHandle和afterCompletion方法 --> </mvc:interceptors> </beans> |
2.整合Mybatis
spring-dao.xml:
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
|
<?xml version="1.0" encoding="UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:mybatis="http://mybatis.org/schema/mybatis-spring" xmlns:context="http://www.springframework.org/schema/context" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://mybatis.org/schema/mybatis-spring http://mybatis.org/schema/mybatis-spring.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd"> <!-- 該包下的類支持注解，表示會被當作{@code mybatis mapper}處理 配置了之后表示可以自動引入mapper類--> <mybatis:scan base-package="com.alibaba.dao"/> <!--引入屬性文件 --> <context:property-placeholder location="classpath:configuration.properties"/> <!--數據庫連接--> <bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource" init-method="init" destroy-method="close"> <property name="url" value="${jdbc.url}" /> <property name="username" value="${jdbc.username}"/> <property name="password" value="${jdbc.password}"/> <!-- 配置初始化大小、最小、最大 --> <property name="initialSize"><value>1</value></property> <property name="maxActive"><value>5</value></property> <property name="minIdle"><value>1</value></property> <!-- 配置獲取連接等待超時的時間 --> <property name="maxWait"><value>60000</value></property> <!-- 配置監控統計攔截的filters --> <property name="filters"><value>stat</value></property> <!-- 配置間隔多久才進行一次檢測，檢測需要關閉的空閑連接，單位是毫秒 --> <property name="timeBetweenEvictionRunsMillis"><value>60000</value></property> <!-- 配置一個連接在池中最小生存的時間，單位是毫秒 --> <property name="minEvictableIdleTimeMillis"><value>300000</value></property> <!-- <property name="validationQuery"><value>SELECT 'x'</value></property> <property name="testWhileIdle"><value>true</value></property> <property name="testOnBorrow"><value>false</value></property> <property name="testOnReturn"><value>false</value></property> <property name="poolPreparedStatements"><value>true</value></property> <property name="maxOpenPreparedStatements"><value>20</value></property> --> </bean> <!-- mybatis配置 --> <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean"> <property name="dataSource" ref="dataSource" /> </bean> </beans> |
3.web.xml整合SpringMVC和Mybatis
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
|
<?xml version="1.0" encoding="UTF-8"?> <web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://java.sun.com/xml/ns/javaee" xmlns:web="http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd" version="3.0"> <!-- 該servlet為tomcat,jetty等容器提供,將靜態資源映射從/改為/static/目錄，如原來訪問 http://localhost/foo.css ,現在http://localhost/static/foo.css --> <!-- 不攔截靜態文件 --> <servlet-mapping> <servlet-name>default</servlet-name> <url-pattern>/js/*</url-pattern> <url-pattern>/css/*</url-pattern> <url-pattern>/images/*</url-pattern> <url-pattern>/fonts/*</url-pattern> </servlet-mapping> <!-- 配置字符集 --> <filter> <filter-name>encodingFilter</filter-name> <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class> <init-param> <param-name>encoding</param-name> <param-value>UTF-8</param-value> </init-param> <init-param> <param-name>forceEncoding</param-name> <param-value>true</param-value> </init-param> </filter> <filter-mapping> <filter-name>encodingFilter</filter-name> <url-pattern>/*</url-pattern> </filter-mapping> <!-- 初始化 DispatcherServlet時，該框架在 web應用程序WEB-INF目錄中尋找一個名為[servlet-名稱]-servlet.xml的文件， 并在那里定義相關的Beans，重寫在全局中定義的任何Beans --> <servlet> <servlet-name>springMybatis</servlet-name> <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class> <load-on-startup>1</load-on-startup> </servlet> <servlet-mapping> <servlet-name>springMybatis</servlet-name> <!-- 所有的的請求，都會被DispatcherServlet處理 --> <url-pattern>/</url-pattern> </servlet-mapping> <context-param> <param-name>contextConfigLocation</param-name> <param-value>/WEB-INF/config/spring-*.xml</param-value> </context-param> <listener> <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class> </listener> <!-- druid web 監控 --> <servlet> <servlet-name>DruidStatView</servlet-name> <servlet-class>com.alibaba.druid.support.http.StatViewServlet</servlet-class> </servlet> <servlet-mapping> <servlet-name>DruidStatView</servlet-name> <url-pattern>/druid/*</url-pattern> </servlet-mapping> <error-page> <error-code>404</error-code> <location>/error/404.jsp</location> </error-page> <error-page> <error-code>500</error-code> <location>/error/500.jsp</location> </error-page> </web-app> |
4.logback.xml日志配置
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
|
<?xml version="1.0" encoding="UTF-8"?> <configuration> <appender name="STDOUT" class="ch.qos.logback.core.ConsoleAppender"> <encoder> <pattern>%d{HH:mm:ss.SSS} [%thread] %-5level %logger{36} - %msg%n</pattern> </encoder> </appender> <logger name="test.LogbackTest" level="TRACE"/> <logger name="com.alibaba.controller.TestController" level="TRACE"/> <logger name="org.springframework.web.servlet.DispatcherServlet" level="DEBUG" /> <logger name="druid.sql" level="INFO" /><!-- 如果spring-config里面沒有配置slf4j,就不會顯示sql日志，logback只是slf4j的一個實現 --> <root level="debug"> <appender-ref ref="STDOUT" /> </root> </configuration> |
5.configuration.properties配置
|
1
2
3
|
jdbc.url=jdbc\:mysql\://localhost\:3306/druid?useUnicode\=true&characterEncoding\=UTF-8&zeroDateTimeBehavior\=convertToNull jdbc.username=root jdbc.password=123456 |
6.測試搭建是否成功，后臺代碼
首先是登錄，用了加密，可以去掉
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
|
package com.alibaba.controller; import javax.annotation.Resource; import javax.servlet.http.HttpServletRequest; import org.apache.commons.codec.digest.DigestUtils; import org.slf4j.Logger; import org.slf4j.LoggerFactory; import org.springframework.stereotype.Controller; import org.springframework.web.bind.annotation.RequestMapping; import org.springframework.web.bind.annotation.RequestMethod; import org.springframework.web.bind.annotation.RequestParam; import com.alibaba.model.User; import com.alibaba.service.UserService; import com.alibaba.util.RequestUtil; /** * @author tfj * 2014-7-26 */@Controllerpublic class SystemController { private final Logger log = LoggerFactory.getLogger(SystemController.class); @Resource private UserService userService; @RequestMapping(value = "/",method = RequestMethod.GET) public String home() { log.info("返回首頁！"); return "index"; } @RequestMapping(value = "/test/hello",method = RequestMethod.GET) public String testHello() { log.info("執行了testHello方法！"); return "testHello"; } @RequestMapping(value = "/login",method = RequestMethod.POST) public String testLogin(HttpServletRequest request,@RequestParam String username, @RequestParam String password) { log.info("執行了testLogin方法！"); User user = userService.findUserByName(username); if(user!=null){ if(user.getPassword().equals(DigestUtils.md5Hex(password))){ request.getSession().setAttribute("userId", user.getId()); request.getSession().setAttribute("user", username); return "redirect:" + RequestUtil.retrieveSavedRequest();//跳轉至訪問頁面 }else{ log.info("密碼錯誤"); request.getSession().setAttribute("message", "用戶名密碼錯誤，請重新登錄"); return "login"; } }else{ log.info("用戶名不存在"); request.getSession().setAttribute("message", "用戶名不存在，請重新登錄"); return "login"; } } } |
關于service和model就不寫了，寫一下mybatis的mapper類映射
|
1
2
3
4
5
6
7
|
<?xml version="1.0" encoding="UTF-8" ?> <!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd"> <mapper namespace="com.alibaba.dao.UserMapper"> <select id="findUserByName" resultType="com.alibaba.model.User"> select id, username , password from sysuser where username = #{username} </select> </mapper> |
7.前臺jsp主要是登錄和登錄成功的頁面，就不寫了

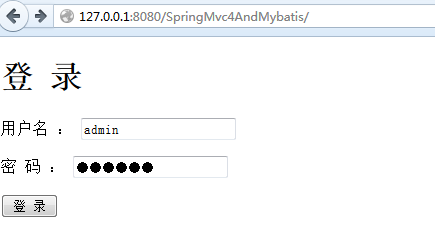

貼一下截圖：
到此，springmvc+mybatis整合成功。后續復雜的功能待添加
注意事項
1.框架中關于druid和logback的配置都是從官網上copy下來的，所以都是最基本的，讀者可以忽略，也可以換成讀者熟悉的數據庫組件和日志框架，如c3p0和log4j。
2.代碼里加入了權限管理，即訪問前需登錄，登錄后跳轉至待訪問頁面，關于springmvc的權限管理請看：http://www.ythuaji.com.cn/article/84142.html
3.本文是從我的測試代碼里剝離出來的最簡單的也是最基本的代碼，有些沒剝離干凈的地方還請見諒。
以上就是本文的全部內容，希望對大家的學習有所幫助，也希望大家多多支持服務器之家。
原文鏈接：http://blog.csdn.net/tonytfjing/article/details/39203121
