前言
QQ這類即時通訊工具多數是以桌面應用的方式存在。在沒有websocket出現之前，如果開發一個網頁版的即時通訊應用，則需要定時刷新頁面或定時調用ajax請求，這無疑會加大服務器的負載和增加了客戶端的流量。而websocket的出現，則完美的解決了這些問題。
spring boot對websocket進行了封裝，這對實現一個websocket網頁即時通訊應用來說，變得非常簡單。
一、準備工作
pom.xml引入
|
1
2
3
4
|
<dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-websocket</artifactId></dependency> |
完整的pom.xml文件代碼如下：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
|
<?xml version="1.0" encoding="UTF-8"?><project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion> <groupId>com.example</groupId> <artifactId>spring-boot-16</artifactId> <version>0.0.1-SNAPSHOT</version> <packaging>jar</packaging> <name>spring-boot-16</name> <description>Demo project for Spring Boot</description> <parent> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-parent</artifactId> <version>1.5.3.RELEASE</version> <relativePath /> <!-- lookup parent from repository --> </parent> <properties> <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding> <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding> <java.version>1.8</java.version> </properties> <dependencies> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-thymeleaf</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-web</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-websocket</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-devtools</artifactId> <scope>runtime</scope> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-test</artifactId> <scope>test</scope> </dependency> </dependencies> <build> <plugins> <plugin> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-maven-plugin</artifactId> </plugin> </plugins> </build></project> |
二、代碼編寫
1.創建名為“WebSocketConfig.java”的類來配置websocket，并繼承抽象類“AbstractWebSocketMessageBrokerConfigurer”
此類聲明“@EnableWebSocketMessageBroker”的注解
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
|
package com.example;import org.springframework.context.annotation.Configuration;import org.springframework.messaging.simp.config.MessageBrokerRegistry;import org.springframework.web.socket.config.annotation.AbstractWebSocketMessageBrokerConfigurer;import org.springframework.web.socket.config.annotation.EnableWebSocketMessageBroker;import org.springframework.web.socket.config.annotation.StompEndpointRegistry;@Configuration@EnableWebSocketMessageBrokerpublic class WebSocketConfig extends AbstractWebSocketMessageBrokerConfigurer { @Override public void configureMessageBroker(MessageBrokerRegistry config) { config.enableSimpleBroker("/topic"); config.setApplicationDestinationPrefixes("/app"); } @Override public void registerStompEndpoints(StompEndpointRegistry registry) { registry.addEndpoint("/my-websocket").withSockJS(); }} |
這里配置了以“/app”開頭的websocket請求url。和名為“my-websocket”的endpoint(端點)
2.編寫一個DTO類來承載消息：
|
1
2
3
4
5
6
7
8
9
|
package com.example;public class SocketMessage { public String message; public String date;} |
3.創建App.java類，用于啟用spring boot和用于接收、發送消息的控制器。
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
|
package com.example;import java.text.DateFormat;import java.text.SimpleDateFormat;import java.util.Date;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.boot.SpringApplication;import org.springframework.boot.autoconfigure.SpringBootApplication;import org.springframework.messaging.handler.annotation.MessageMapping;import org.springframework.messaging.handler.annotation.SendTo;import org.springframework.messaging.simp.SimpMessagingTemplate;import org.springframework.scheduling.annotation.EnableScheduling;import org.springframework.scheduling.annotation.Scheduled;import org.springframework.stereotype.Controller;import org.springframework.web.bind.annotation.GetMapping;@Controller@EnableScheduling@SpringBootApplicationpublic class App { public static void main(String[] args) { SpringApplication.run(App.class, args); } @Autowired private SimpMessagingTemplate messagingTemplate; @GetMapping("/") public String index() { return "index"; } @MessageMapping("/send") @SendTo("/topic/send") public SocketMessage send(SocketMessage message) throws Exception { DateFormat df = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss"); message.date = df.format(new Date()); return message; } @Scheduled(fixedRate = 1000) @SendTo("/topic/callback") public Object callback() throws Exception { // 發現消息 DateFormat df = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss"); messagingTemplate.convertAndSend("/topic/callback", df.format(new Date())); return "callback"; }} |
“send”方法用于接收客戶端發送過來的websocket請求。
@EnableScheduling注解為：啟用spring boot的定時任務，這與“callback”方法相呼應，用于每隔1秒推送服務器端的時間。
4.在“resources/templates”目錄下創建index.html文件：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
|
<!DOCTYPE html><html><head><title>玩轉spring boot——websocket</title><script src="//cdn.bootcss.com/angular.js/1.5.6/angular.min.js"></script><script src="https://cdn.bootcss.com/sockjs-client/1.1.4/sockjs.min.js"></script><script src="https://cdn.bootcss.com/stomp.js/2.3.3/stomp.min.js"></script><script type="text/javascript"> /*<![CDATA[*/ var stompClient = null; var app = angular.module('app', []); app.controller('MainController', function($rootScope, $scope, $http) { $scope.data = { //連接狀態 connected : false, //消息 message : '', rows : [] }; //連接 $scope.connect = function() { var socket = new SockJS('/my-websocket'); stompClient = Stomp.over(socket); stompClient.connect({}, function(frame) { // 注冊發送消息 stompClient.subscribe('/topic/send', function(msg) { $scope.data.rows.push(JSON.parse(msg.body)); $scope.data.connected = true; $scope.$apply(); }); // 注冊推送時間回調 stompClient.subscribe('/topic/callback', function(r) { $scope.data.time = '當前服務器時間：' + r.body; $scope.data.connected = true; $scope.$apply(); }); $scope.data.connected = true; $scope.$apply(); }); }; $scope.disconnect = function() { if (stompClient != null) { stompClient.disconnect(); } $scope.data.connected = false; } $scope.send = function() { stompClient.send("/app/send", {}, JSON.stringify({ 'message' : $scope.data.message })); } }); /*]]>*/</script></head><body ng-app="app" ng-controller="MainController"> <h2>玩轉spring boot——websocket</h2> <h4> 出處：劉冬博客 <a href="http://www.cnblogs.com/goodhelper" rel="external nofollow" >http://www.cnblogs.com/goodhelper</a> </h4> <label>WebSocket連接狀態:</label> <button type="button" ng-disabled="data.connected" ng-click="connect()">連接</button> <button type="button" ng-click="disconnect()" ng-disabled="!data.connected">斷開</button> <br /> <br /> <div ng-show="data.connected"> <label>{{data.time}}</label> <br /> <br /> <input type="text" ng-model="data.message" placeholder="請輸入內容..." /> <button ng-click="send()" type="button">發送</button> <br /> <br /> 消息列表： <br /> <table> <thead> <tr> <th>內容</th> <th>時間</th> </tr> </thead> <tbody> <tr ng-repeat="row in data.rows"> <td>{{row.message}}</td> <td>{{row.date}}</td> </tr> </tbody> </table> </div></body></html> |
除了引用angular.js的CDN文件外，還需要引用sockjs和stomp。
完整的項目結構，如下圖所示：

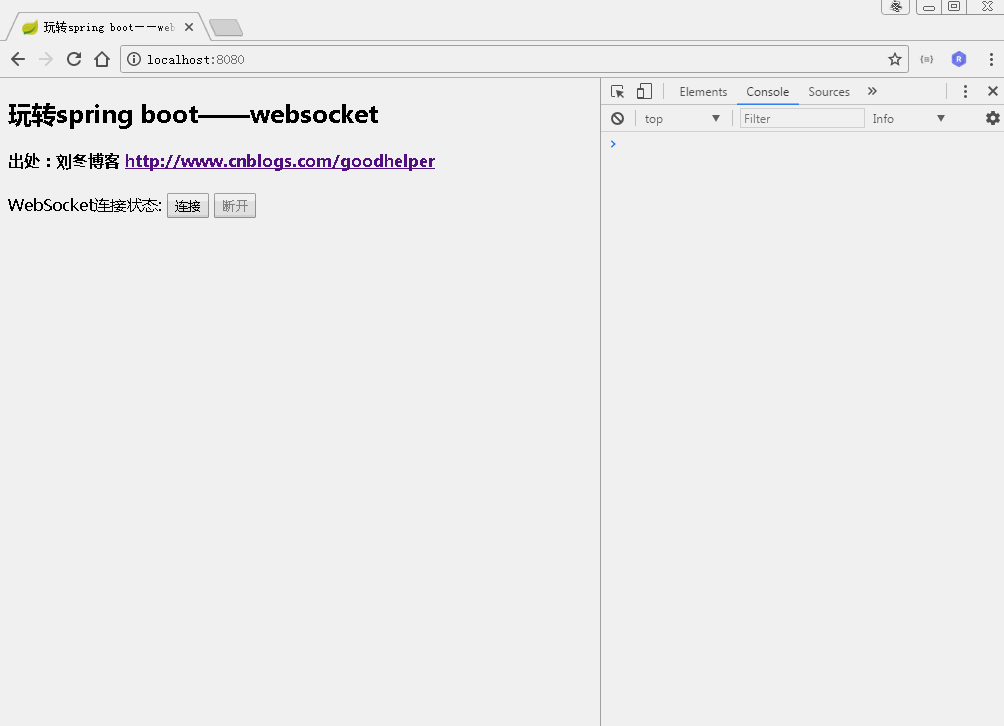

三、運行效果
點擊“連接”按鈕，出現發送消息的輸入框。并接收到服務器端的時間推送。
輸入發送內容并點擊“發送”按鈕后，頁面顯示出剛才發送的消息。
點擊“斷開”按鈕，則服務器端不會再推送消息。
總結
在開發一個基于web的即時通訊應用的過程中，我們還需考慮session的機制。
還需要一個集合來承載當前的在線用戶，并做一個定時任務，其目的是用輪詢的方式定時處理在線用戶的狀態，有哪些用戶在線，又有哪些用戶離線。
參考：
http://spring.io/guides/gs/scheduling-tasks/
http://spring.io/guides/gs/messaging-stomp-websocket/
代碼地址：https://github.com/carter659/spring-boot-16
