坐標系
- 1、原點O在顯示器的中間。
- 2、Z軸是指向屏幕之外的，也就是觀察者。
- 3、由于觀察者眼睛，即觀察方向是指向Z軸的反方向，所以當定義好圖形之后，光源的方向一定不能是指向Z軸的正方向，否則無法觀察到圖形。（根據光的反射）
基本體組合的顯示實例
import java.applet.Applet;
import java.awt.BorderLayout;
import java.awt.GraphicsConfiguration;
import javax.media.j3d.*;
import javax.vecmath.Color3f;
import javax.vecmath.Point3d;
import javax.vecmath.Vector3f;
import com.sun.j3d.utils.applet.MainFrame;
import com.sun.j3d.utils.behaviors.mouse.MouseRotate;
import com.sun.j3d.utils.behaviors.mouse.MouseTranslate;
import com.sun.j3d.utils.behaviors.mouse.MouseZoom;
import com.sun.j3d.utils.geometry.Box;
import com.sun.j3d.utils.geometry.Sphere;
import com.sun.j3d.utils.universe.SimpleUniverse;
public class towprimitivedisplay extends Applet {
public BranchGroup createBranchGroup()
{
//定義BranchGroup
BranchGroup BranchGroupRoot = new BranchGroup ();
//創建球心在坐標系原點球形范圍
BoundingSphere bounds = new BoundingSphere(new Point3d( 0.0,0.0,0.0),100.0);
//定義背景顏色
Color3f bgColor=new Color3f(.0f,.0f,.0f);
Background bg=new Background(bgColor);
bg.setApplicationBounds(bounds);
BranchGroupRoot.addChild(bg);
//定義平行光、顏色、照射方向與作用范圍
Color3f directionColor=new Color3f(1.f,1.f,1.f);
Vector3f vec=new Vector3f(1.0f,-1.0f,-1.0f);
DirectionalLight directionalLight= new DirectionalLight(directionColor,vec);
directionalLight.setInfluencingBounds(bounds);
BranchGroupRoot.addChild(directionalLight);
//定義總的TransformGroup:transformgroup
TransformGroup transformgroup=new TransformGroup();
//設置對該TransformGroup的讀寫能力
transformgroup.setCapability(TransformGroup.ALLOW_TRANSFORM_WRITE);
transformgroup.setCapability(TransformGroup.ALLOW_TRANSFORM_READ);
//將該TransformGroup加入到BranchGroupRoot中
BranchGroupRoot.addChild(transformgroup);
//定義鼠標對場景的旋轉、平移與放大功能
MouseRotate mouserotate=new MouseRotate();
mouserotate.setTransformGroup(transformgroup);
BranchGroupRoot.addChild(mouserotate);
mouserotate.setSchedulingBounds(bounds);
MouseZoom mousezoom=new MouseZoom();
mousezoom.setSchedulingBounds(bounds);
BranchGroupRoot.addChild(mousezoom);
mousezoom.setSchedulingBounds(bounds);
MouseTranslate mousetranslate=new MouseTranslate();
mousetranslate.setTransformGroup(transformgroup);
BranchGroupRoot.addChild(mousetranslate);
mousetranslate.setSchedulingBounds(bounds);
//定義兩個三維型體的外觀
Appearance app1=new Appearance();
Material material1=new Material();
material1.setDiffuseColor(new Color3f(1.0f,.0f,0.0f));
app1.setMaterial(material1);
Appearance app2=new Appearance();
Material material2=new Material();
material2.setDiffuseColor(new Color3f(0.0f,1.0f,0.0f));
app2.setMaterial(material2);
//定義一個球體于一個長方體的大小、外觀屬性與坐標變換，并定義相應的TransformGroup：ta1、ta2
TransformGroup tg1=new TransformGroup();
tg1.addChild(new Sphere(0.3f,app1));
Transform3D t=new Transform3D();
t.setTranslation(new Vector3f(0.f,-0.425f,0.f));
TransformGroup tg2=new TransformGroup(t);
tg2.addChild(new Box(0.5f,0.05f,0.5f,app2));
//將定義好的兩個TransformGroup(tg1、tg2)加入到總的transformgroup
transformgroup.addChild(tg1);
transformgroup.addChild(tg2);
//對BranchGroupRoot預編譯
BranchGroupRoot.compile();
//通過方法名返回BranchGroupRoot
return BranchGroupRoot;
}
public towprimitivedisplay()
{
//設置顯示界面的相關參數
setLayout(new BorderLayout());
//創建投影平面Canvas3D
GraphicsConfiguration gc=SimpleUniverse.getPreferredConfiguration();
Canvas3D c=new Canvas3D(gc);
//將投影平面上的圖像顯示在顯示平面的中間
add("Center",c);
//設置SimpleUniverse，由系統選擇視點在z軸的正向，觀察方向沿z軸反向
BranchGroup BranchGroupScene=createBranchGroup();
SimpleUniverse u=new SimpleUniverse(c);
u.getViewingPlatform().setNominalViewingTransform();
//將BranchGroup:BranchGroupScene加入到SimpleUniverse:u中
u.addBranchGraph(BranchGroupScene);
}
public static void main(String[] args)
{//通過MainFrame顯示圖像
new MainFrame(new towprimitivedisplay(),300,300);
}
}

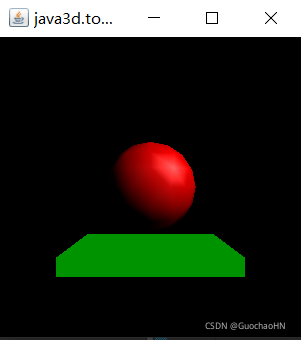

由于光源方向是：
Vector3f vec=new Vector3f(-1.f,-1.f,-1.0f); 即指向第七象限。所以結果是：

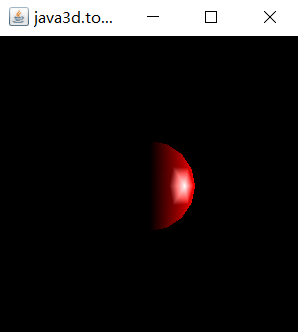

如果改變光源方向：
Vector3f vec=new Vector3f(0.0f,0.0f,-1.0f);光源指向Z軸反方向
Vector3f vec=new Vector3f(-1.0f,0.0f,0.0f);光源指向X軸反方向
三角面圖形
以一維數組給出頂點的坐標值，從前向后一次以3個頂點形成一個三角形，并且上一個三角形與下一個三角形之間沒有公共頂點。
import java.awt.BorderLayout;
import java.awt.GraphicsConfiguration;
import javax.media.j3d.Appearance;
import javax.media.j3d.Background;
import javax.media.j3d.BoundingSphere;
import javax.media.j3d.BranchGroup;
import javax.media.j3d.Canvas3D;
import javax.media.j3d.DirectionalLight;
import javax.media.j3d.PolygonAttributes;
import javax.media.j3d.Shape3D;
import javax.media.j3d.TransformGroup;
import javax.media.j3d.TriangleArray;
import javax.vecmath.Color3f;
import javax.vecmath.Point3d;
import javax.vecmath.Vector3f;
import com.sun.j3d.utils.applet.MainFrame;
import com.sun.j3d.utils.behaviors.mouse.MouseRotate;
import com.sun.j3d.utils.behaviors.mouse.MouseTranslate;
import com.sun.j3d.utils.behaviors.mouse.MouseZoom;
import com.sun.j3d.utils.universe.SimpleUniverse;
import java.applet.Applet;
public class DisplayTriangles extends Applet {
public BranchGroup createBranchGroup() {
BranchGroup BranchGroupRoot = new BranchGroup();
BoundingSphere bounds = new BoundingSphere(new Point3d(0.0, 0.0, 0.0), 100.0);
Color3f bgColor = new Color3f(1.0f, 1.0f, 1.0f);
Background bg = new Background(bgColor);
bg.setApplicationBounds(bounds);
BranchGroupRoot.addChild(bg);
Color3f directionalColor = new Color3f(1.f, 0.f, 0.f);
Vector3f vec = new Vector3f(0.f, 0.f, -1.0f);
DirectionalLight directionalLight = new DirectionalLight(directionalColor, vec);
directionalLight.setInfluencingBounds(bounds);
BranchGroupRoot.addChild(directionalLight);
TransformGroup transformgroup = new TransformGroup();
transformgroup.setCapability(TransformGroup.ALLOW_TRANSFORM_WRITE);
transformgroup.setCapability(TransformGroup.ALLOW_TRANSFORM_READ);
BranchGroupRoot.addChild(transformgroup);
MouseRotate mouserotate = new MouseRotate();
mouserotate.setTransformGroup(transformgroup);
BranchGroupRoot.addChild(mouserotate);
mouserotate.setSchedulingBounds(bounds);
MouseZoom mousezoom = new MouseZoom();
mousezoom.setTransformGroup(transformgroup);
BranchGroupRoot.addChild(mousezoom);
mousezoom.setSchedulingBounds(bounds);
MouseTranslate mousetranslate = new MouseTranslate();
mousetranslate.setTransformGroup(transformgroup);
BranchGroupRoot.addChild(mousetranslate);
mousetranslate.setSchedulingBounds(bounds);
transformgroup.addChild(new TriangleArrays());
BranchGroupRoot.compile();
return BranchGroupRoot;
}
public DisplayTriangles() {
setLayout(new BorderLayout());
GraphicsConfiguration gc = SimpleUniverse.getPreferredConfiguration();
Canvas3D c = new Canvas3D(gc);
add("Center", c);
BranchGroup BranchGroupScene = createBranchGroup();
SimpleUniverse u = new SimpleUniverse(c);
u.getViewingPlatform().setNominalViewingTransform();
u.addBranchGraph(BranchGroupScene);
}
public static void main(String[] args) {
new MainFrame(new DisplayTriangles(), 300, 300);
}
}
//outsideclass
class TriangleArrays extends Shape3D {
public TriangleArrays() {
int vCount = 12;
float vertexes[] = { -0.6f,0.9f,0.0f, -0.6f,-0.9f,0.2f,
-0.4f, 0.9f, -0.2f, -0.2f, -0.9f, 0.2f,
0.0f, 0.9f,-0.2f, 0.0f, -0.9f, 0.2f,
0.2f, 0.7f, 0.0f, 0.2f, -0.9f, 0.3f,
0.5f, 0.8f, -0.3f, 0.6f, -.9f, 0.0f,
0.8f, 0.9f, 0.2f, 0.8f, -0.8f, 0.3f };
float colors[] = { 0.0f,0.5f,1.0f, 0.0f,0.5f,1.0f,
0.0f,0.8f,.0f, 1.0f,0.0f,0.3f,
0.0f,1.0f,0.5f, 0.9f,1.0f,0.0f,
0.5f,0.0f,1.0f, 0.0f,0.5f,1.0f,
1.0f,0.5f,0.0f, 1.0f,0.0f,0.5f,
1.0f,0.8f,0.0f, 1.0f,0.5f,0.0f};
TriangleArray trianglearray = new TriangleArray(vCount, TriangleArray.COORDINATES | TriangleArray.COLOR_3);
trianglearray.setCoordinates(0, vertexes);
trianglearray.setColors(0, colors);

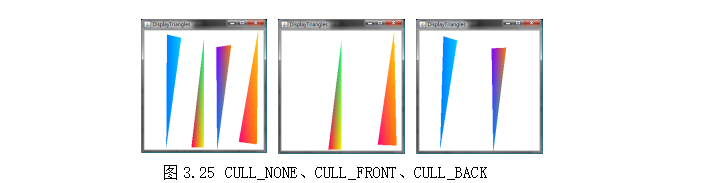

PolygonAttributes polygonattributes = new PolygonAttributes();
//polygonattributes.setCullFace(PolygonAttributes.CULL_NONE);
//polygonattributes.setCullFace(PolygonAttributes.CULL_FRONT);
polygonattributes.setCullFace(PolygonAttributes.CULL_BACK);
Appearance app = new Appearance();
app.setPolygonAttributes(polygonattributes);
this.setGeometry(trianglearray);
this.setAppearance(app);
}
}
三角扇圖形
以第一個頂點為公用頂點，依次與其余頂點分別連接形成三角形。其中給定的定點數至少為3個。
class ShapeTriangleFanArray extends Shape3D {
public ShapeTriangleFanArray() {
int vertexesCount = 12;
int stripCount[] = new int[1];
//int stripCount[]=new int[2];
//int stripCount[]=new int[3];
float vertexes[] = { .0f, 0.9f, 0.0f, -1.f, -0.8f, 0.f,
-0.8f, -0.6f, -0.2f, -0.6f, -0.9f, 0.2f,
-0.4f, -0.8f,-0.2f, 0.f, -0.8f, 0.2f,
0.2f, -0.5f, 0.0f, 0.4f, -0.6f, -0.5f,
0.6f, -0.8f, -0.3f, 0.8f, -0.9f, -0.2f,
0.9f, -0.7f, -0.2f, 1.1f, -0.8f, -0.3f
};
float colors[] = { 0.0f, 0.5f, 1.0f, 0.0f, 0.5f, 1.0f,
0.0f, 0.8f, .0f, 1.0f, 0.0f, 0.3f,
0.0f, 1.0f, 0.5f,0.9f, 1.0f, 0.0f,
0.5f, 0.0f, 1.0f, 0.0f, 0.5f, 1.0f,
1.0f, 0.5f, 0.0f, 1.0f, 0.0f, 0.5f,
1.0f, 0.8f,0.0f, 1.0f, 0.5f, 0.0f };
stripCount[0] = 12;
//stripCount[1]=4;
//stripCount[2]=4;
TriangleFanArray triangleFanarray = new TriangleFanArray(vertexesCount,
TriangleFanArray.COORDINATES | TriangleFanArray.COLOR_3, stripCount);
triangleFanarray.setCoordinates(0, vertexes);
triangleFanarray.setColors(0, colors);
PolygonAttributes polygonattributes = new PolygonAttributes();
polygonattributes.setCullFace(PolygonAttributes.CULL_NONE);
Appearance app = new Appearance();
app.setPolygonAttributes(polygonattributes);
this.setGeometry(triangleFanarray);
this.setAppearance(app);
}
}
int stripCount[];數組表示生成的三角扇個數
eg：總共十二個頂點
new stripCount[1]，表示生成一個扇區。所以stripCount[0]=12，這一個扇區有十二個點。
該程序，用頂點顏色插值生成線與面顏色，這種顏色無需光照，也能顯示。
四邊面圖形
以頂點坐標數組中給出的一維頂點數組，從前向后依次以4個頂點形成一個四邊形面，并且相鄰兩個四邊形面之間沒有公用頂點。給定的總的頂點數必須是4的倍數。
class ShapeQuadArray extends Shape3D
{public ShapeQuadArray()
{int vertexCount=12;
float vertexes[]={ -0.8f,0.9f,0.0f, -0.8f,-0.8f,0.f,
-0.6f,-0.8f,0.f, -0.6f,0.9f,0.f,
-0.4f,0.9f,0.f, -0.4f,-0.7f,-0.9f,
0.4f,-0.8f,0.f, 0.4f,0.8f,0.0f,
0.5f,0.8f,0.f, 0.6f,-0.8f,0.0f,
0.8f,-0.7f,0.f, 0.8f,0.8f,0.f};
float colors[]={0.0f,0.5f,1.0f, 0.0f,0.5f,1.0f,
0.0f,0.8f,.0f, 1.0f,0.0f,0.3f,
0.0f,1.0f,0.5f, 0.9f,1.0f,0.0f,
0.5f,0.0f,1.0f, 0.0f,0.5f,1.0f,
1.0f,0.5f,0.0f, 1.0f,0.0f,0.5f,
1.0f,0.8f,0.0f, 1.0f,0.5f,0.0f };
QuadArray quadarray=new QuadArray(vertexCount,
QuadArray.COORDINATES|QuadArray.COLOR_3);
quadarray.setCoordinates(0,vertexes);
quadarray.setColors(0,colors);
PolygonAttributes polygonattributes=new PolygonAttributes();
polygonattributes.setCullFace(PolygonAttributes.CULL_NONE);
//polygonattributes.setCullFace(PolygonAttributes.CULL_BACK);
//polygonattributes.setCullFace(PolygonAttributes.CULL_FRONT);
Appearance app=new Appearance();
app.setPolygonAttributes(polygonattributes);
this.setGeometry(quadarray);
this.setAppearance(app);
}}
