近期公司要開發新的項目，要用struts2+mybatis+spring框架，所以學習了下，來自己的博客發表下，希望能給大家?guī)韼椭?br /> 主要實現用戶的增刪改查操作

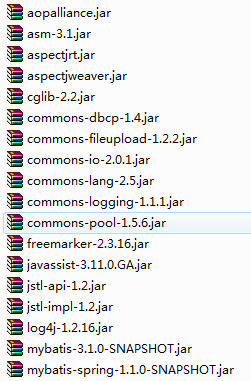

1、導入相應的jar包
2、配置web.xml主要是配置struts2和spring
web.xml文件內容如下：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
|
<?xml version="1.0" encoding="UTF-8"?> <web-app version="2.5" xmlns="http://java.sun.com/xml/ns/javaee" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"> <welcome-file-list> <welcome-file>index.jsp</welcome-file> </welcome-file-list> <!-- 加載spring的配置文件 --> <listener> <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class> </listener> <!-- 配置spring配置文件加載的位置 --> <context-param> <param-name>contextConfigLocation</param-name> <param-value>classpath:beans.xml</param-value> </context-param> <!-- 配置struts2 --> <filter> <filter-name>struts2</filter-name> <filter-class> org.apache.struts2.dispatcher.ng.filter.StrutsPrepareAndExecuteFilter</filter-class> </filter> <filter-mapping> <filter-name>struts2</filter-name> <url-pattern>/*</url-pattern> </filter-mapping> </web-app> |
3、配置spring配置文件，主要包括配置數據源、事務、mybaits等
beans.xml配置文件詳細如下：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
|
<?xml version="1.0" encoding="UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context" xmlns:aop="http://www.springframework.org/schema/aop" xmlns:tx="http://www.springframework.org/schema/tx" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.0.xsd http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-3.0.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-3.0.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-3.0.xsd"> <!-- 采用注釋的方式配置bean --> <context:annotation-config /> <!-- 配置要掃描的包 --> <context:component-scan base-package="com.pdsu.edu"></context:component-scan> <!--proxy-target-class="true"強制使用cglib代理 如果為false則spring會自動選擇--> <aop:aspectj-autoproxy proxy-target-class="true"/> <!-- 數據庫配置文件位置 --> <context:property-placeholder location="classpath:jdbc.properties" /> <!-- 配置dbcp數據源 --> <bean id="dataSource" class="org.apache.commons.dbcp.BasicDataSource" destroy-method="close"> <property name="driverClassName" value="${jdbc.driverClassName}" /> <property name="url" value="${jdbc.url}" /> <property name="username" value="${jdbc.username}" /> <property name="password" value="${jdbc.password}" /> <!-- 隊列中的最小等待數 --> <property name="minIdle" value="${jdbc.minIdle}"></property> <!-- 隊列中的最大等待數 --> <property name="maxIdle" value="${jdbc.maxIdle}"></property> <!-- 最長等待時間，單位毫秒 --> <property name="maxWait" value="${jdbc.maxWait}"></property> <!-- 最大活躍數 --> <property name="maxActive" value="${jdbc.maxActive}"></property> <property name="initialSize" value="${jdbc.initialSize}"></property> </bean> <!-- 配置mybitasSqlSessionFactoryBean --> <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean"> <property name="dataSource" ref="dataSource" /> <property name="configLocation" value="classpath:mybatis.xml"></property> </bean> <!-- 配置SqlSessionTemplate --> <bean id="sqlSessionTemplate" class="org.mybatis.spring.SqlSessionTemplate"> <constructor-arg name="sqlSessionFactory" ref="sqlSessionFactory" /> </bean> <!-- 事務配置 --> <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager"> <property name="dataSource" ref="dataSource" /> </bean> <!-- 使用annotation注解方式配置事務 --> <tx:annotation-driven transaction-manager="transactionManager"/> </beans> |
4.JDBC配置文件詳細
|
1
2
3
4
5
6
7
8
9
|
jdbc.driverClassName=com.mysql.jdbc.Driver jdbc.url=jdbc:mysql://localhost:3306/operationLog jdbc.username=root jdbc.password= jdbc.maxActive = 2 jdbc.maxIdle =5 jdbc.minIdle=1 jdbc.initialSize =3 jdbc.maxWait =3000 |
5、配置mybatis主配置文件：
|
1
2
3
4
5
6
7
8
9
10
|
<?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN" "http://mybatis.org/dtd/mybatis-3-config.dtd"> <configuration> <typeAliases> <typeAlias alias="user" type="com.pdsu.edu.domain.User"/> </typeAliases> <mappers> <mapper resource="com/pdsu/edu/domain/sqlMappers/user.xml" /> </mappers> </configuration> |
6、配置user.xml文件
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
|
<?xml version="1.0" encoding="utf-8" ?> <!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd"> <mapper namespace="com.pdsu.edu.domain.User"> <resultMap type="com.pdsu.edu.domain.User" id="userResult"> <result property="id" column="id" jdbcType="INTEGER" javaType="java.lang.Integer" /> <result property="username" column="username" /> <result property="password" column="password" /> </resultMap> <select id="userLogin" parameterType="user" resultMap="userResult"> select * from user where username=#{username} and password=#{password} </select> <select id="selectAllUser" resultMap="userResult"> select * from user </select> <select id="findUserById" parameterType="int" resultMap="userResult"> select * from user where id=#{id} </select> <insert id="insertUser" parameterType="user"> <![CDATA[ insert into user(username,password) values(#{username},#{password}) ]]> </insert> <update id="updateUser" parameterType="user"> update user set username=#{username},password=#{password} where id=#{id} </update> <delete id="deleteUser" parameterType="int"> delete from user where id=#{id} </delete> </mapper> |
7、User實體的寫法
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
|
public class User implements Serializable { private static final long serialVersionUID = -4415990281535582814L; private Integer id; private String username; private String password; public Integer getId() { return id; } public void setId(Integer id) { this.id = id; } public String getUsername() { return username; } public void setUsername(String username) { this.username = username; } public String getPassword() { return password; } public void setPassword(String password) { this.password = password; } @Override public String toString() { return "User [id=" + id + ", password=" + password + ", username=" + username + "]"; } @Override public int hashCode() { final int prime = 31; int result = 1; result = prime * result + ((id == null) ? 0 : id.hashCode()); return result; } @Override public boolean equals(Object obj) { if (this == obj) return true; if (obj == null) return false; if (getClass() != obj.getClass()) return false; User other = (User) obj; if (id == null) { if (other.id != null) return false; } else if (!id.equals(other.id)) return false; return true; } } |
8、UserDao的寫法
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
|
public interface UserDao { public abstract void insertUser(User user); public abstract void updateUser(User user); public abstract void deleteUser(Integer userId); public abstract User findUserByid(Integer userId); public abstract List<User> findAll(); public abstract User userLogin(User user); } |
9、UserDao的實現
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
|
@Repositorypublic class UserDaoImpl implements UserDao { private final String INSERT_USER = "insertUser"; private final String UPDATE_USER = "updateUser"; private final String DELETE_USER = "deleteUser"; private final String FIND_USER_BYID = "findUserById"; private final String SELECT_ALL_USER = "selectAllUser"; private final String USER_LOGIN = "userLogin"; @Autowired private SqlSessionTemplate sqlSessionTemplate; public void insertUser(User user) { sqlSessionTemplate.insert(INSERT_USER, user); } public void updateUser(User user) { sqlSessionTemplate.update(UPDATE_USER, user); } public void deleteUser(Integer userId) { sqlSessionTemplate.delete(DELETE_USER, userId); } public User findUserByid(Integer userId) { return sqlSessionTemplate.selectOne(FIND_USER_BYID, userId); } public List<User> findAll() { return sqlSessionTemplate.selectList(SELECT_ALL_USER); } public User userLogin(User user) { return sqlSessionTemplate.selectOne(USER_LOGIN, user); } } |
10、UserService接口
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
|
public interface UserService { // 添加用戶 public abstract void addUser(User user); public abstract void updateUser(User user); public abstract void deleteUser(Integer userId); public abstract User findUserById(Integer userId); public abstract List<User> findAllUser(); public abstract User login(User user); } |
11、UserService接口的實現
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
|
@Service@Transactionalpublic class UserServiceImpl implements UserService { @Autowired private UserDao userDao; // 添加用戶 public void addUser(User user) { userDao.insertUser(user); } // 更新用戶 public void updateUser(User user) { userDao.updateUser(user); } public void deleteUser(Integer userId) { userDao.deleteUser(userId); } public User findUserById(Integer userId) { return userDao.findUserByid(userId); } public List<User> findAllUser() { return userDao.findAll(); } public User login(User user) { return userDao.userLogin(user); } } |
12、配置Struts2
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
|
<?xml version="1.0" encoding="UTF-8" ?> <!DOCTYPE struts PUBLIC "-//Apache Software Foundation//DTD Struts Configuration 2.1//EN" "http://struts.apache.org/dtds/struts-2.1.dtd"> <struts> <constant name="struts.i18n.encoding" value="UTF-8"/> <!-- 指定默認編碼集 ，作用于HttpServletRequest的setCharacterEncoding（）和freemarker，vilocity的輸出 --> <constant name="struts.configuration.xmlreload" value="true"/> <!-- 當struts配置文件修改時是否自動加載 --> <constant name="struts.devMode" value="true"/> <!-- 開發模式下打印詳細的錯誤信息 --> <constant name="struts.ui.theme" value="xhtml"/> <package name="user" namespace="/user" extends="struts-default"> <action name="user_*" class="userAction" method="{1}"> <result name="success" type="redirectAction">user_queryAllUser.action</result> <result name="input">/index.jsp</result> <result name="userList">/userList.jsp</result> <result name="addUser">/userAdd.jsp</result> <result name="updateUser">/userUpdate.jsp</result> </action> </package> </struts> |
13、UserAction具體實現
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
|
@Controller@Scope("prototype") public class UserAction extends ActionSupport { @Autowired private UserService userService; private User user; private List<User> userList; public String execute() throws Exception { return null; } public String login() { if (user != null) { User user2 = userService.login(user); if (user2 != null) { return SUCCESS; } } this.addFieldError("user.username", "用戶名或密碼錯誤!"); return INPUT; } public String addUI() { return "addUser"; } public String updateUI() { user = userService.findUserById(user.getId()); return "updateUser"; } public String add() { userService.addUser(user); return SUCCESS; } public String delete() { userService.deleteUser(user.getId()); return SUCCESS; } public String update() { userService.updateUser(user); return SUCCESS; } public User getUser() { return user; } public void setUser(User user) { this.user = user; } public String queryAllUser() { userList = userService.findAllUser(); return "userList"; } public List<User> getUserList() { return userList; } public void setUserList(List<User> userList) { this.userList = userList; } } |
14、登錄頁面的實現
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
|
<%@ page language="java" import="java.util.*" pageEncoding="UTF-8"%> <%@ taglib prefix="s" uri="/struts-tags"%> <% String path = request.getContextPath(); String basePath = request.getScheme()+"://"+request.getServerName()+":"+request.getServerPort()+path+"/"; %> <!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN"> <html> <head> <base href="<%=basePath%>"> <title>用戶登錄</title> <meta http-equiv="pragma" content="no-cache"> <meta http-equiv="cache-control" content="no-cache"> <meta http-equiv="expires" content="0"> <meta http-equiv="keywords" content="keyword1,keyword2,keyword3"> <meta http-equiv="description" content="This is my page"> <!-- <link rel="stylesheet" type="text/css" href="styles.css"> --> <s:head/> </head> <body> <center> <h1>用戶登錄</h1> <s:a action="user_addUI" namespace="/user">添加新用戶</s:a> <s:form action="user_login" namespace="/user" method="post"> <s:textfield label="用戶名" name="user.username"></s:textfield> <s:password label="密碼" name="user.password"></s:password> <s:submit value="登錄"></s:submit> </s:form> </center> </body> </html> |
15、添加頁面
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
|
<%@ page language="java" import="java.util.*" pageEncoding="UTF-8"%> <%@ taglib prefix="s" uri="/struts-tags"%> <!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN"> <html> <head> <title>添加新用戶</title> <meta http-equiv="pragma" content="no-cache"> <meta http-equiv="cache-control" content="no-cache"> <meta http-equiv="expires" content="0"> </head> <body> <center> <h1>添加新用戶</h1> <s:form action="user_add" namespace="/user" method="post"> <s:textfield label="用戶名" name="user.username"></s:textfield> <s:password label="密碼" name="user.password"></s:password> <s:submit value="提交"></s:submit> </s:form> </center> </body> </html> |
16、修改頁面
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
|
<%@ page language="java" import="java.util.*" pageEncoding="UTF-8"%> <%@ taglib prefix="s" uri="/struts-tags"%> <!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN"> <html> <head> <title>修改用戶</title> <meta http-equiv="pragma" content="no-cache"> <meta http-equiv="cache-control" content="no-cache"> <meta http-equiv="expires" content="0"> </head> <body> <center> <h1>修改用戶</h1> <s:form action="user_update" namespace="/user" method="post"> <s:hidden name="user.id"></s:hidden> <s:textfield label="用戶名" name="user.username"></s:textfield> <s:password label="密碼" name="user.password"></s:password> <s:submit value="提交"></s:submit> </s:form> </center> </body> </html> |
17、列表頁面
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
|
<%@ page language="java" import="java.util.*" pageEncoding="UTF-8"%> <%@ taglib prefix="s" uri="/struts-tags"%> <!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN"> <html> <head> <title>用戶列表</title> <meta http-equiv="pragma" content="no-cache"> <meta http-equiv="cache-control" content="no-cache"> <meta http-equiv="expires" content="0"> </head> <body> <center> <h2>用戶列表</h2> <h3><s:a action="user_addUI" namespace="/user">添加新用戶</s:a> </h3> <table width="90%" border="1"> <tr> <th>用戶id</th> <th>用戶名稱</th> <th>用戶密碼</th> <th>操作</th> </tr> <s:iterator value="userList"> <tr> <td><s:property value="id"/> </td> <td><s:property value="username"/> </td> <td><s:property value="password"/> </td> <td><s:a action="user_updateUI" namespace="/user"><s:param name="user.id">${id}</s:param>修改</s:a> <s:a action="user_delete" namespace="/user"><s:param name="user.id">${id}</s:param>刪除</s:a></td> </tr> </s:iterator> </table> </center> </body> </html> |
以上就是本文的全部內容，希望對大家的學習有所幫助，也希望大家多多支持服務器之家。
