一、Sharding-JDBC簡介

Sharding-JDBC是Sharding-Sphere的一個產品，它有三個產品，分別是Sharding-JDBC、Sharding-Proxy和Sharding-Sidecar，這三個產品提供了標準化的數據分片、讀寫分離、柔性事務和數據治理功能。我們這里用的是Sharding-JDBC，所以想了解后面兩個產品的話可以去它們官網查看。

Sharding-JDBC為輕量級Java框架，使用客戶端直連數據庫，以jar包形式提供服務，無需額外部署和依賴，可理解為增強版的JDBC驅動，兼容性特別強。適用的ORM框架有JPA, Hibernate, Mybatis, Spring JDBC Template或直接使用JDBC；第三方的數據庫連接池有DBCP, C3P0, BoneCP, Druid等；支持的數據庫有MySQL，Oracle，SQLServer和PostgreSQL；多樣化的配置文件Java，yaml，Spring Boot ，Spring命名空間。其實這里說的都是廢話，大家可以不看，下面我們動手開始正式配置。

二、具體的實現方式

1、maven引用

我這里用的配置方式是Spring命名空間配置，所以只需要引用sharding-jdbc-spring-namespace就可以了，還有要注意的是我用的不是當當網的sharding，注意groupId是io.shardingsphere。如果用的是其它配置方式可以去http://maven.aliyun.com/nexus/#nexus-search;quick~io.shardingsphere網站查找相應maven引用

<dependency>
  <groupId>io.shardingsphere</groupId>
  <artifactId>sharding-jdbc-spring-namespace</artifactId>
  <version>3.0.0.M1</version>
</dependency>

2、數據庫準備

我這里用的是mysql數據庫，根據我們項目的具體需求，我準備了三個主庫和對應的從庫。模擬的主庫名有master，暫時沒有做對應從庫，所以對應的從庫還是指向master；第二個主庫有master_1，對應的從庫有master_1_slaver_1，master_1_slave_2；第三個主庫有master_2，對應的從庫有master_2_slave_1，master_2_slave_2。
數據庫中的表也做了分表，下面是對應的mysql截圖。

SpringBoot使用Sharding-JDBC實現數據分片和讀寫分離的方法

這第一幅圖上的主從庫都應該在不同的服務器上的，但這里只是為了模擬所以就建在了本地服務器上了。我們讀寫分離中的寫操作只會發生在主庫上，從庫會自動同步主庫上的數據并為讀提供數據。數據庫的主從復制在上篇博文中做了詳細的介紹，大家可以去看看http://www.ythuaji.com.cn/article/208668.html

SpringBoot使用Sharding-JDBC實現數據分片和讀寫分離的方法

這幅圖作為我們本來的主庫，下面做的分庫和分表都是基于這個庫中的訂單表分的。所以分庫中的表只有訂單表和訂單明細表。

SpringBoot使用Sharding-JDBC實現數據分片和讀寫分離的方法

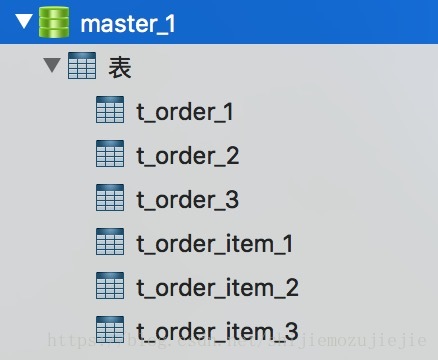

第三幅圖截的是第二個主庫，里面對訂單和訂單明細表做了分表操作，具體的分片策略和分片算法下面再做介紹。第三個主表和第二個主表是一樣的，所有的從表都和對應的主表是一致的。

3、Spring配置

數據庫信息配置文件db.properties配置可以配置兩份，分為開發版和測試版，如下：

# master
Master.url=jdbc:mysql://localhost:3306/master?useUnicode=true&characterEncoding=utf8&autoReconnect=true&rewriteBatchedStatements=true
Master.username=root
Master.password=123456
Slave.url=jdbc:mysql://localhost:3306/master?useUnicode=true&characterEncoding=utf8&autoReconnect=true&rewriteBatchedStatements=true
Slave.username=root
Slave.password=123456

# maste_1
Master_1.url=jdbc:mysql://localhost:3306/master_1?useUnicode=true&characterEncoding=utf8&autoReconnect=true&rewriteBatchedStatements=true
Master_1.username=root
Master_1.password=123456
Master_1_Slave_1.url=jdbc:mysql://localhost:3306/master_1_slave_1?useUnicode=true&characterEncoding=utf8&autoReconnect=true&rewriteBatchedStatements=true
Master_1_Slave_1.username=root
Master_1_Slave_1.password=123456
Master_1_Slave_2.url=jdbc:mysql://localhost:3306/master_1_slave_2?useUnicode=true&characterEncoding=utf8&autoReconnect=true&rewriteBatchedStatements=true
Master_1_Slave_2.username=root
Master_1_Slave_2.password=123456

# master_2
Master_2.url=jdbc:mysql://localhost:3306/master_2?useUnicode=true&characterEncoding=utf8&autoReconnect=true&rewriteBatchedStatements=true
Master_2.username=root
Master_2.password=123456
Master_2_Slave_1.url=jdbc:mysql://localhost:3306/master_2_slave_1?useUnicode=true&characterEncoding=utf8&autoReconnect=true&rewriteBatchedStatements=true
Master_2_Slave_1.username=root
Master_2_Slave_1.password=123456
Master_2_Slave_2.url=jdbc:mysql://localhost:3306/master_2_slave_2?useUnicode=true&characterEncoding=utf8&autoReconnect=true&rewriteBatchedStatements=true
Master_2_Slave_2.username=root
Master_2_Slave_2.password=123456

Spring對應的配置：
Spring-Sphere官網中的demo里用的都是行表達式的分片策略，但是行表達式的策略不利于數據庫和表的橫向擴展，所以我這里用的是標準分片策略，精準分片算法和范圍分片算法。因為我們項目中暫時用的分片鍵都是user_id單一鍵，所以說不存在復合分片策略，也用不到Hint分片策略，行表達式分片策略和不分片策略。

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
     xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
     xmlns:context="http://www.springframework.org/schema/context"
     xmlns:tx="http://www.springframework.org/schema/tx"
     xmlns:sharding="http://shardingsphere.io/schema/shardingsphere/sharding"
     xmlns:master-slave="http://shardingsphere.io/schema/shardingsphere/masterslave"
     xsi:schemaLocation="http://www.springframework.org/schema/beans
                      http://www.springframework.org/schema/beans/spring-beans.xsd
                      http://www.springframework.org/schema/context
                      http://www.springframework.org/schema/context/spring-context.xsd
                      http://www.springframework.org/schema/tx
                      http://www.springframework.org/schema/tx/spring-tx.xsd
                      http://shardingsphere.io/schema/shardingsphere/sharding
                      http://shardingsphere.io/schema/shardingsphere/sharding/sharding.xsd
                      http://shardingsphere.io/schema/shardingsphere/masterslave
                      http://shardingsphere.io/schema/shardingsphere/masterslave/master-slave.xsd">

  <context:component-scan base-package="com.jihao" />

  <!-- db.properties數據庫信息配置 -->
  <bean id="property" class="org.springframework.beans.factory.config.PropertyPlaceholderConfigurer">
	    <property name="location" value="classpath:property/db_dev.properties" />
	</bean>
	<!-- 主庫 -->
  <bean id="master" class="org.apache.commons.dbcp.BasicDataSource" destroy-method="close">
      <property name="driverClassName" value="com.mysql.jdbc.Driver"/>
      <property name="url" value="${Master.url}"/>
      <property name="username" value="${Master.username}"/>
      <property name="password" value="${Master.password}"/>
  </bean>
	<!-- 主庫的從庫 -->
  <bean id="slave" class="org.apache.commons.dbcp.BasicDataSource" destroy-method="close">
      <property name="driverClassName" value="com.mysql.jdbc.Driver"/>
      <property name="url" value="${Slave.url}"/>
      <property name="username" value="${Slave.username}"/>
      <property name="password" value="${Slave.password}"/>
  </bean>
  <!-- 主庫的分庫1 -->
  <bean id="master_1" class="org.apache.commons.dbcp.BasicDataSource" destroy-method="close">
      <property name="driverClassName" value="com.mysql.jdbc.Driver"/>
      <property name="url" value="${Master_1.url}"/>
      <property name="username" value="${Master_1.username}"/>
      <property name="password" value="${Master_1.password}"/>
  </bean>

  <!-- 分庫1的從庫1 -->
  <bean id="master_1_slave_1" class="org.apache.commons.dbcp.BasicDataSource" destroy-method="close">
      <property name="driverClassName" value="com.mysql.jdbc.Driver"/>
      <property name="url" value="${Master_1_Slave_1.url}"/>
      <property name="username" value="${Master_1_Slave_1.username}"/>
      <property name="password" value="${Master_1_Slave_1.password}"/>
  </bean>

  <!-- 分庫1的從庫2 -->
  <bean id="master_1_slave_2" class="org.apache.commons.dbcp.BasicDataSource" destroy-method="close">
      <property name="driverClassName" value="com.mysql.jdbc.Driver"/>
      <property name="url" value="${Master_1_Slave_2.url}"/>
      <property name="username" value="${Master_1_Slave_2.username}"/>
      <property name="password" value="${Master_1_Slave_2.password}"/>
  </bean>

  <!-- 主庫的分庫2 -->
  <bean id="master_2" class="org.apache.commons.dbcp.BasicDataSource" destroy-method="close">
      <property name="driverClassName" value="com.mysql.jdbc.Driver"/>
      <property name="url" value="${Master_2.url}"/>
      <property name="username" value="${Master_2.username}"/>
      <property name="password" value="${Master_2.password}"/>
  </bean>

  <!-- 分庫2的從庫1 -->
  <bean id="master_2_slave_1" class="org.apache.commons.dbcp.BasicDataSource" destroy-method="close">
      <property name="driverClassName" value="com.mysql.jdbc.Driver"/>
      <property name="url" value="${Master_2_Slave_1.url}"/>
      <property name="username" value="${Master_2_Slave_1.username}"/>
      <property name="password" value="${Master_2_Slave_1.password}"/>
  </bean>

  <!-- 分庫2的從庫2 -->
  <bean id="master_2_slave_2" class="org.apache.commons.dbcp.BasicDataSource" destroy-method="close">
      <property name="driverClassName" value="com.mysql.jdbc.Driver"/>
      <property name="url" value="${Master_2_Slave_2.url}"/>
      <property name="username" value="${Master_2_Slave_2.username}"/>
      <property name="password" value="${Master_2_Slave_2.password}"/>
  </bean>

	<!-- 主從關系配置 -->
  <bean id="randomStrategy" class="io.shardingsphere.core.api.algorithm.masterslave.RandomMasterSlaveLoadBalanceAlgorithm" />
  <master-slave:data-source id="ms_master" master-data-source-name="master" slave-data-source-names="slave" strategy-ref="randomStrategy" />
  <master-slave:data-source id="ms_master_1" master-data-source-name="master_1" slave-data-source-names="master_1_slave_1, master_1_slave_2" strategy-ref="randomStrategy" />
  <master-slave:data-source id="ms_master_2" master-data-source-name="master_2" slave-data-source-names="master_2_slave_1, master_2_slave_2" strategy-ref="randomStrategy" />

  <!-- 分庫策略  精確分片算法 -->
  <bean id="preciseDatabaseStrategy" class="com.jihao.algorithm.PreciseModuleDatabaseShardingAlgorithm" />
  <!-- 分庫策略  范圍分片算法 -->
  <bean id="rangeDatabaseStrategy" class="com.jihao.algorithm.RangeModuleDatabaseShardingAlgorithm" />
  <!-- 分表策略  精確分片算法 -->
  <bean id="preciseTableStrategy" class="com.jihao.algorithm.PreciseModuleTableShardingAlgorithm" />
  <!-- 分表策略  范圍分片算法-->
  <bean id="rangeTableStrategy" class="com.jihao.algorithm.RangeModuleTableShardingAlgorithm" />
  <sharding:standard-strategy id="databaseStrategy" sharding-column="user_id" precise-algorithm-ref="preciseDatabaseStrategy" range-algorithm-ref="rangeDatabaseStrategy" />
  <!-- 分表策略 -->
  <sharding:standard-strategy id="tableStrategy" sharding-column="user_id" precise-algorithm-ref="preciseTableStrategy" range-algorithm-ref="rangeTableStrategy" />

  <!-- 行表達式算法 -->
  <!-- <sharding:inline-strategy id="databaseStrategy" sharding-column="user_id" algorithm-expression="demo_ds_ms_$->{user_id % 2}" />
  <sharding:inline-strategy id="orderTableStrategy" sharding-column="order_id" algorithm-expression="t_order_$->{order_id % 2}" />
  <sharding:inline-strategy id="orderItemTableStrategy" sharding-column="order_item_id" algorithm-expression="t_order_item_$->{order_item_id % 2}" /> -->

  <sharding:data-source id="shardingDataSource">
      <sharding:sharding-rule data-source-names="ms_master,ms_master_1,ms_master_2">
          <sharding:table-rules>
              <sharding:table-rule logic-table="t_order" actual-data-nodes="ms_master_$->{1..2}.t_order_$->{1..3}" database-strategy-ref="databaseStrategy" table-strategy-ref="tableStrategy" generate-key-column-name="order_id"/>
              <sharding:table-rule logic-table="t_order_item" actual-data-nodes="ms_master_$->{1..2}.t_order_item_$->{1..3}" database-strategy-ref="databaseStrategy" table-strategy-ref="tableStrategy" generate-key-column-name="order_item_id"/>
          </sharding:table-rules>
      </sharding:sharding-rule>
  </sharding:data-source>

  <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
      <property name="dataSource" ref="shardingDataSource" />
  </bean>
  <tx:annotation-driven />

  <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
	    <!-- 用于在控制臺打印sql（不需要的可以注釋掉這一行） -->
  	<property name="configLocation" value="classpath:log/mybatis-config.xml"></property>
      <property name="dataSource" ref="shardingDataSource"/>
      <property name="mapperLocations" value="classpath*:com/jihao/mapper/*.xml"/>
  </bean>

  <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
      <property name="basePackage" value="com.jihao"/>
      <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"/>
  </bean>
</beans>

4、精準分片算法和范圍分片算法的Java代碼

標準分片策略，精準分片算法

package com.jihao.algorithm;

import io.shardingsphere.core.api.algorithm.sharding.PreciseShardingValue;
import io.shardingsphere.core.api.algorithm.sharding.standard.PreciseShardingAlgorithm;

import java.util.Collection;

import com.alibaba.fastjson.JSON;

/**
* 自定義標準分片策略，使用精確分片算法（=與IN）
* @author JiHao
*
*/
public class PreciseModuleDatabaseShardingAlgorithm implements PreciseShardingAlgorithm<Long>{

	@Override
	public String doSharding(Collection<String> availableTargetNames,
			PreciseShardingValue<Long> preciseShardingValue) {
		System.out.println("collection:" + JSON.toJSONString(availableTargetNames) + ",preciseShardingValue:" + JSON.toJSONString(preciseShardingValue));
      for (String name : availableTargetNames) {
      	// =與IN中分片鍵對應的值
      	String value = String.valueOf(preciseShardingValue.getValue());
      	// 分庫的后綴
      	int i = 1;
      	// 求分庫后綴名的遞歸算法
          if (name.endsWith("_" + countDatabaseNum(Long.parseLong(value), i))) {
              return name;
          }
      }
      throw new UnsupportedOperationException();
	}

	/**
	 * 計算該量級的數據在哪個數據庫
	 * @return
	 */
	private String countDatabaseNum(long columnValue, int i){
		// ShardingSphereConstants每個庫中定義的數據量
		long left = ShardingSphereConstants.databaseAmount * (i-1);
		long right = ShardingSphereConstants.databaseAmount * i;
		if(left < columnValue && columnValue <= right){
			return String.valueOf(i);
		}else{
			i++;
			return countDatabaseNum(columnValue, i);
		}
	}

}

標準分片策略，范圍分片算法

package com.jihao.algorithm;

import io.shardingsphere.core.api.algorithm.sharding.RangeShardingValue;
import io.shardingsphere.core.api.algorithm.sharding.standard.RangeShardingAlgorithm;

import java.util.ArrayList;
import java.util.Collection;
import java.util.List;

import com.alibaba.fastjson.JSON;
import com.google.common.collect.Range;

/**
* 自定義標準分庫策略，使用范圍分片算法（BETWEEN AND）
* @author JiHao
*
*/
public class RangeModuleDatabaseShardingAlgorithm implements RangeShardingAlgorithm<Long>{

	@Override
	public Collection<String> doSharding(
			Collection<String> availableTargetNames,
			RangeShardingValue<Long> rangeShardingValue) {
		System.out.println("Range collection:" + JSON.toJSONString(availableTargetNames) + ",rangeShardingValue:" + JSON.toJSONString(rangeShardingValue));
      Collection<String> collect = new ArrayList<>();
      Range<Long> valueRange = rangeShardingValue.getValueRange();
      // BETWEEN AND中分片鍵對應的最小值
      long lowerEndpoint = Long.parseLong(String.valueOf(valueRange.lowerEndpoint()));
      // BETWEEN AND中分片鍵對應的最大值
      long upperEndpoint = Long.parseLong(String.valueOf(valueRange.upperEndpoint()));
      // 分表的后綴
      int i = 1;
      List<Integer> arrs = new ArrayList<Integer>();
      // 求分表后綴名的遞歸算法
      List<Integer> list = countDatabaseNum(i, lowerEndpoint, upperEndpoint, arrs);
      for (Integer integer : list) {
			for (String each : availableTargetNames) {
				if (each.endsWith("_" + integer)) {
                collect.add(each);
				}
			}
		}
      return collect;
	}

	/**
	 * 計算該量級的數據在哪個表
	 * @param columnValue
	 * @param i
	 * @param lowerEndpoint 最小區間
	 * @param upperEndpoint 最大區間
	 * @return
	 */
	private List<Integer> countDatabaseNum(int i, long lowerEndpoint, long upperEndpoint, List<Integer> arrs){
		long left = ShardingSphereConstants.databaseAmount * (i-1);
		long right = ShardingSphereConstants.databaseAmount * i;
		// 區間最大值小于分庫最大值
		if(left < upperEndpoint && upperEndpoint <= right){
			arrs.add(i);
			return arrs;
		}else{
			if(left < lowerEndpoint && lowerEndpoint <= right){
				arrs.add(i);
			}
			i++;
			return countDatabaseNum(i, lowerEndpoint, upperEndpoint, arrs);
		}
	}
}

分庫的策略用的和分庫的代碼是一樣的，不同之處就是分庫用的是databaseAmount，分表用的是tableAmount。下面的ShardingSphereConstants的代碼。

package com.jihao.algorithm;

/**
* ShardingSphere中用到的常量
* @author JiHao
*
*/
public class ShardingSphereConstants {

	/**
	 * 訂單、優惠券相關的表，按用戶數量分庫，64w用戶數據為一個庫
	 * (0,64w]
	 */
	public static int databaseAmount = 640000;

	/**
	 * 一個訂單表里存10000的用戶訂單
	 * (0,1w]
	 */
	public static int tableAmount = 10000;

}

到這里所有的配置基本上都已經完成了，下面的測試。

5、測試

下面是測試的mybatis的測試文件，都是最基礎的就不講解了。

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.jihao.dao.TestShardingMapper">

	<resultMap id="BaseResultMap" type="com.jihao.entity.Order">
	    <id column="order_id" jdbcType="INTEGER" property="orderId" />
	    <result column="user_id" jdbcType="INTEGER" property="userId" />
	    <result column="status" jdbcType="INTEGER" property="status" />
	</resultMap>

	<insert id="insert" parameterType="com.jihao.entity.Order" useGeneratedKeys="true" keyProperty="orderId">
  	INSERT INTO t_order (
  		user_id, status
 		)
  	VALUES (
  		#{userId,jdbcType=INTEGER},
  		#{status,jdbcType=VARCHAR}
 		)
	</insert>

	<insert id="insertItem" useGeneratedKeys="true" keyProperty="orderItemId">
      INSERT INTO t_order_item (
        order_id, user_id
      )
      VALUES (
      	#{orderId,jdbcType=INTEGER},
      	#{userId,jdbcType=INTEGER}
      )
  </insert>

  <select id="searchOrder" resultMap="BaseResultMap">
  	SELECT * from t_order
  </select>

  <select id="queryWithEqual" resultMap="BaseResultMap">
  	SELECT * FROM t_order WHERE user_id=51
  </select>

  <select id="queryWithIn" resultMap="BaseResultMap">
  	SELECT * FROM t_order WHERE user_id IN (50, 51)
  </select>

  <select id="queryWithBetween" resultMap="BaseResultMap">
  	SELECT * FROM t_order WHERE user_id between 10000 and 30000
  </select>

  <select id="queryUser" resultType="Map">
  	SELECT * FROM t_user
  </select>

</mapper>

下面對應的mapper的Java代碼

package com.jihao.dao;

import java.util.List;
import java.util.Map;

import org.apache.ibatis.annotations.Mapper;

import com.jihao.entity.Order;
import com.jihao.entity.OrderItem;

@Mapper
public interface TestShardingMapper {

  int insert(Order record);

  int insertItem(OrderItem record);

  List<Order> searchOrder();

  List<Order> queryWithEqual();

  List<Order> queryWithIn();

  List<Order> queryWithBetween();

  List<Map<String, Object>> queryUser();

}

下面是對應的訂單entity代碼

package com.jihao.entity;


/**
* 訂單
* @author JiHao
*/
public class Order {

  private Long orderId;

  private Integer userId;

  private String status;

	public Long getOrderId() {
		return orderId;
	}

	public void setOrderId(Long orderId) {
		this.orderId = orderId;
	}

	public Integer getUserId() {
		return userId;
	}

	public void setUserId(Integer userId) {
		this.userId = userId;
	}

	public String getStatus() {
		return status;
	}

	public void setStatus(String status) {
		this.status = status;
	}

}

下面是對應的訂單明細entity代碼

package com.jihao.entity;


/**
* 測試分片
* @author JiHao
*/
public class OrderItem {

	private Long orderItemId;

  private Long orderId;

  private Integer userId;


	public Long getOrderId() {
		return orderId;
	}

	public void setOrderId(Long orderId) {
		this.orderId = orderId;
	}

	public Integer getUserId() {
		return userId;
	}

	public void setUserId(Integer userId) {
		this.userId = userId;
	}

	public Long getOrderItemId() {
		return orderItemId;
	}

	public void setOrderItemId(Long orderItemId) {
		this.orderItemId = orderItemId;
	}
}

下面是測試的controller，并沒有寫Junit測試。

package com.jihao.controller.test;


import java.util.List;
import java.util.Map;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;

import com.jihao.dao.TestShardingMapper;
import com.jihao.entity.Order;
import com.jihao.entity.OrderItem;
import com.jihao.result.Result;
import com.jihao.result.ResultUtil;

/**
* 測試分片
* @author JiHao
*
*/
@Controller
@RequestMapping(value = "test")
public class TestShardingController {

	@Autowired
  private TestShardingMapper testShardingMapper;

  /**
   * 測試添加
   * @return
   */
  @ResponseBody
  @GetMapping(value = "/testAdd")
  public String testAdd(){
  	for (int i = 0; i < 10; i++) {
          Order order = new Order();
//            order.setUserId(50);
//            order.setUserId(51);
//            order.setUserId(10001);
          order.setUserId(20001);
          order.setStatus("INSERT_TEST");
          int count = testShardingMapper.insert(order);
          System.out.println(count);
          long orderId = order.getOrderId();
          System.out.println(order.getOrderId());
          OrderItem item = new OrderItem();
          item.setOrderId(orderId);
//            order.setUserId(50);
//            order.setUserId(51);
//            order.setUserId(10001);
          order.setUserId(20001);
          testShardingMapper.insertItem(item);
      }
      return "success";
  }

  /**
   * 測試搜索
   * @return
   */
  @ResponseBody
  @GetMapping(value = "/testSearch")
  public Result searchData(){
  	List<Order> list = testShardingMapper.searchOrder();
  	System.out.println(list.size() + " all");
  	List<Order> list1 = testShardingMapper.queryWithIn();
  	System.out.println(list1.size() + " In");
  	List<Order> list2 = testShardingMapper.queryWithEqual();
  	System.out.println(list2.size() + " Equal");
  	List<Order> list3 = testShardingMapper.queryWithBetween();
  	System.out.println(list3.size() + " Between");
  	List<Map<String, Object>> list4 = testShardingMapper.queryUser();
  	System.out.println(list4.size() + " user");
  	return ResultUtil.success(null);
  }
}

這里要重點提出來的是做搜索測試的時候，因為主從庫都在我本地服務器上，并沒有做主從復制，大家可以根據我上篇博文配置一下就可以順利操作了，如果沒有配置的話從庫里是不會有數據的，所以在做完寫操作時把主庫中的數據手動傳輸給從庫，這樣才能讀出數據。

這里順便給出Sharding-Sphere的官方地址http://shardingjdbc.io/index_zh.html，以及demo地址https://github.com/sharding-sphere/sharding-sphere-example（demo里Sharding-Sphere的maven配置我在跑的時候沒跑通，需要把版本改成3.0.0.M1就ok了）。

到此這篇關于SpringBoot使用Sharding-JDBC實現數據分片和讀寫分離的文章就介紹到這了,更多相關SpringBoot使用Sharding-JDBC實現數據分片和讀寫分離內容請搜索服務器之家以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持服務器之家！

原文鏈接：https://blog.csdn.net/shijiemozujiejie/article/details/80786231
